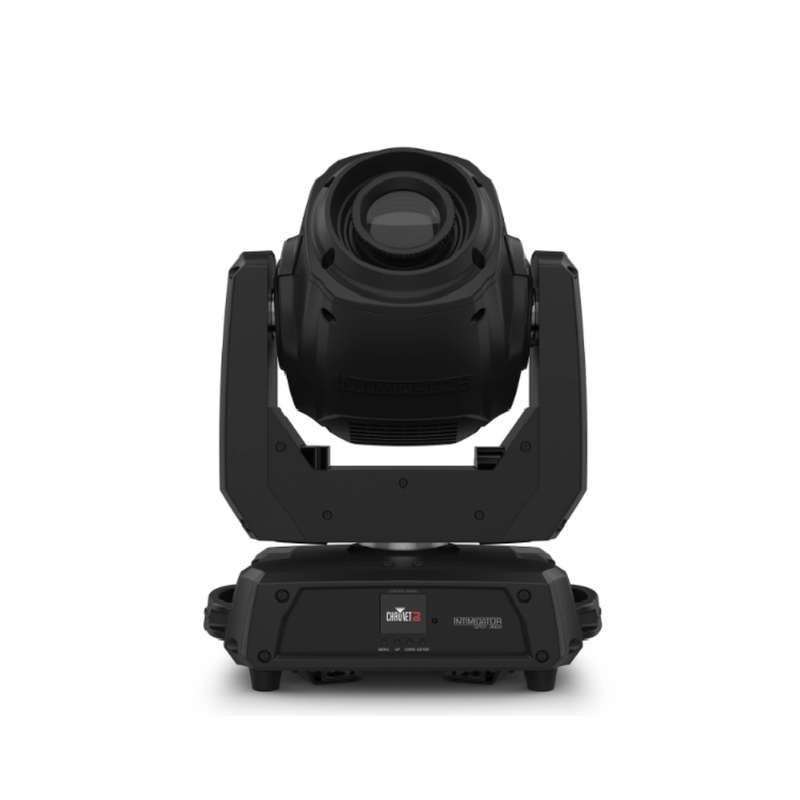

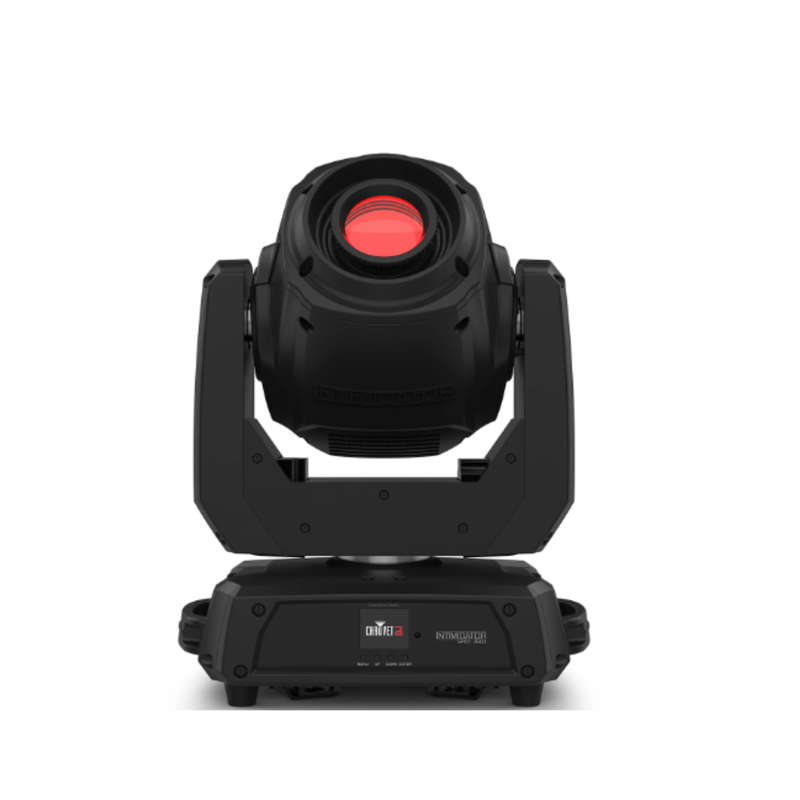

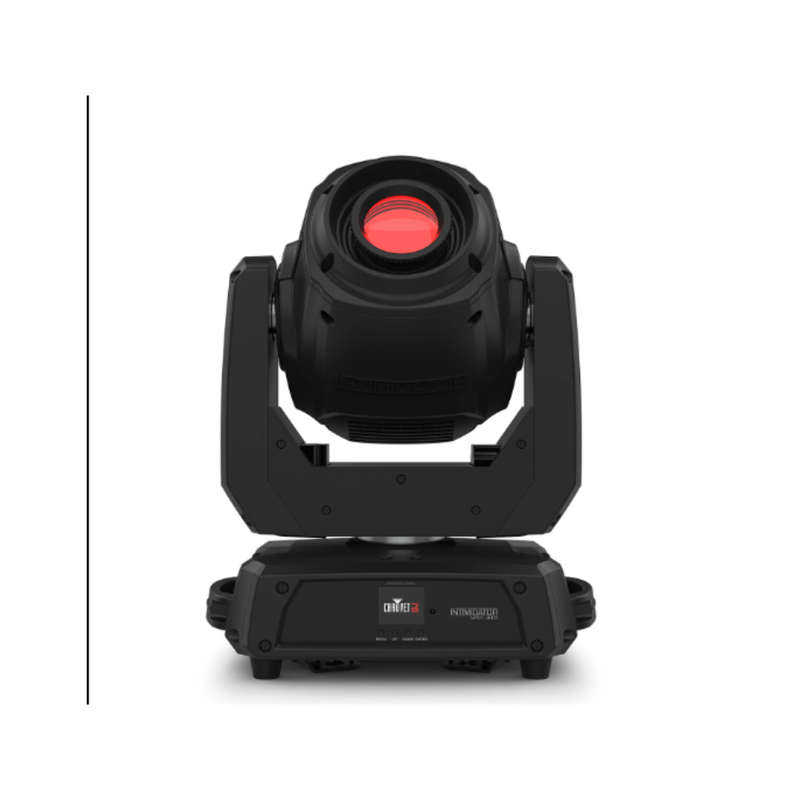

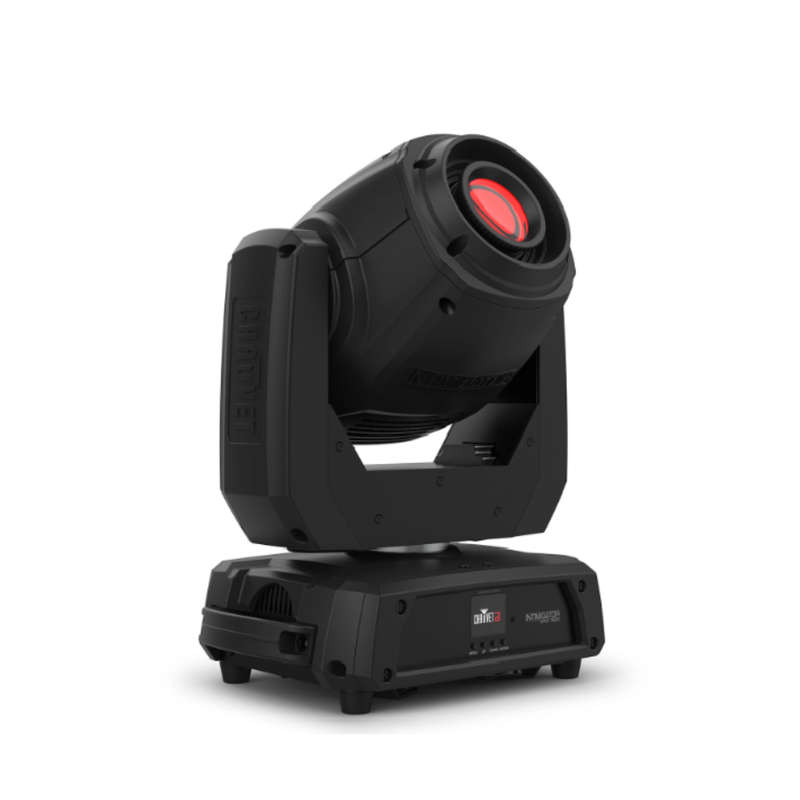

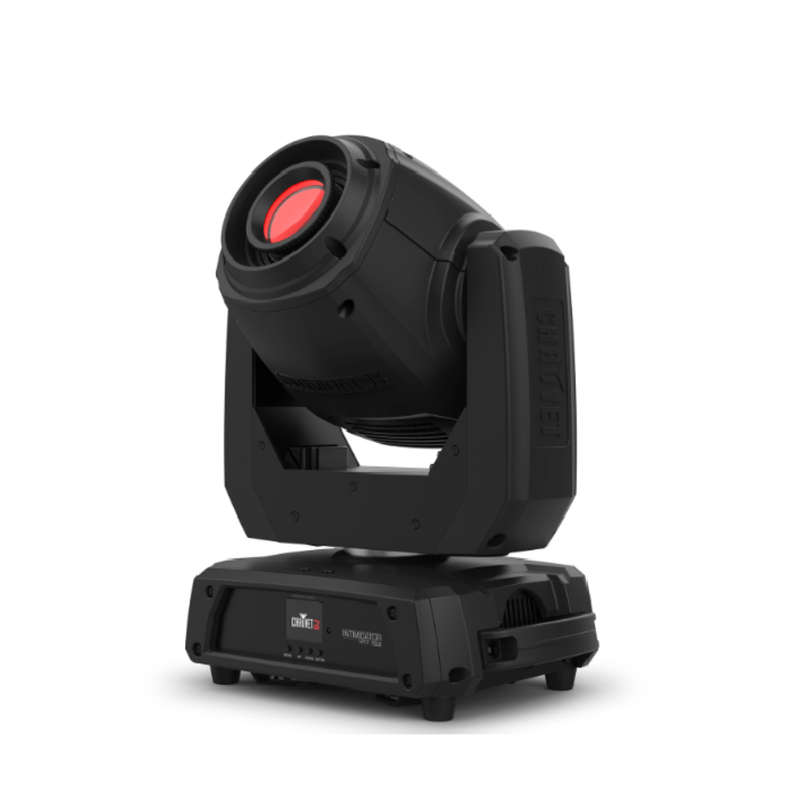

Chauvet DJ Intimidator Spot 360X

Meet Xcellence with Intimidator Spot 360X, a compact moving head packed with features to make any mobile event Xhilarating! This mover has a built-in RF receiver for wireless control using the new RFC or RFC XL optional remotes that put the power of programming a button push away. An updated CTO color wheel provides fresh color looks and a new starting home position allows for smoother programming and dual rotating prisms split the beam for thrilling effects and wider area coverage. Intimidator Spot 360X is versatile with manual zoom for short or long throw applications. Motorized zoom lets you project crisp gobos from nearly any distance and beams always remain on the dance floor using the built-in, innovative Totem mode. Intimidator Spot 360X also lets you set, save, and recall 1 scene manually, directly from the full color LCD display.

Highlights

• Compact moving head designed for mobile events
• Built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes
• New home position allows for smoother programming
• Dual rotating prisms split the beam for great effects and cover a larger area
• Manual zoom for short or long-throw applications
• ¼-turn hanging bracket allows for single or dual clamp mounting options
• Project crisp gobos from nearly any distance with the motorized focus
• Beams always remain on the dance floor using the built-in, innovative Totem mode
• Set, save, and recall 1 scene manually, directly from the full-color LCD display

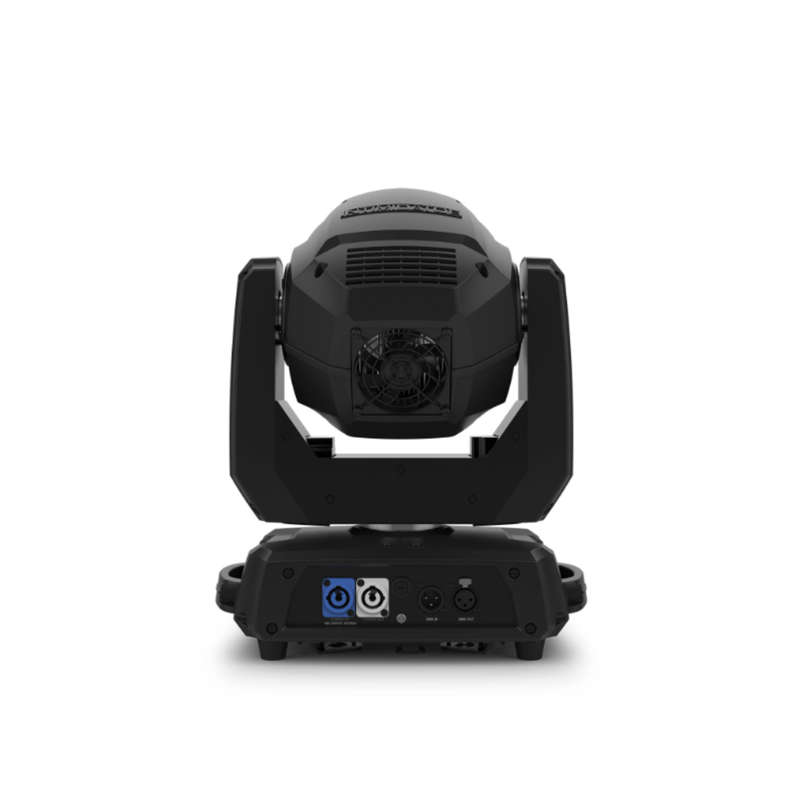

• powerCON®-compatible power input/output connections save setup time
• Fits best in the CHS-360 VIP carry bag or the Intimidator Road Case

General Specifications

• DMX Channels:  8 or 14
• DMX Connectors:  3-pin XLR
• Pan and Tilt:  540°/270°
• Pan and Tilt Ranges:  540°, 360°, 180° pan/270°, 180°, 90° tilt
• Colors:  8 + white, split colors, continuous scroll at variable speeds
• Gobos:  7 + open (6 metal + 1 glass), rotating, interchangeable, indexing, slot-n-lock, continuous scroll at variable speeds
• Light Source:  1 LED (cool white) 100 W, (4.3 A), 50,000 hours life expectancy
• Strobe Rate:  0 to 20 Hz
• Zoom Angle:  12° to 17°
• Lumens:  3,967
• Power Linking:  5 units @ 120 V; 8 units @ 230 V
• Input Voltage:  100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current:
  217 W, 2.6 A @ 120 V, 60 Hz
  211 W, 1.5 A @ 230 V, 50 Hz
• Gobo Size:  24 mm outside, 20 mm image, 1.1 mm max thickness
• Weight:  25 lb (11.4 kg)
• Size:  12.7 x 8.7 x 16.7 in (322 x 220 x 423 mm)
• Approvals:  CE, UKCA, RoHS, MET
• Color Temperature:  15,000 K
• Prism:  5-facet linear, bi-directional at variable speeds
• Prism:  3-facet round, bi-directional at variable speeds
• Illuminance (12°):  41,601 lux @ 2 m
• Illuminance (17°):  22,534 lux @ 2 m
• Optional Controllers:  RFC, RFC-XL
