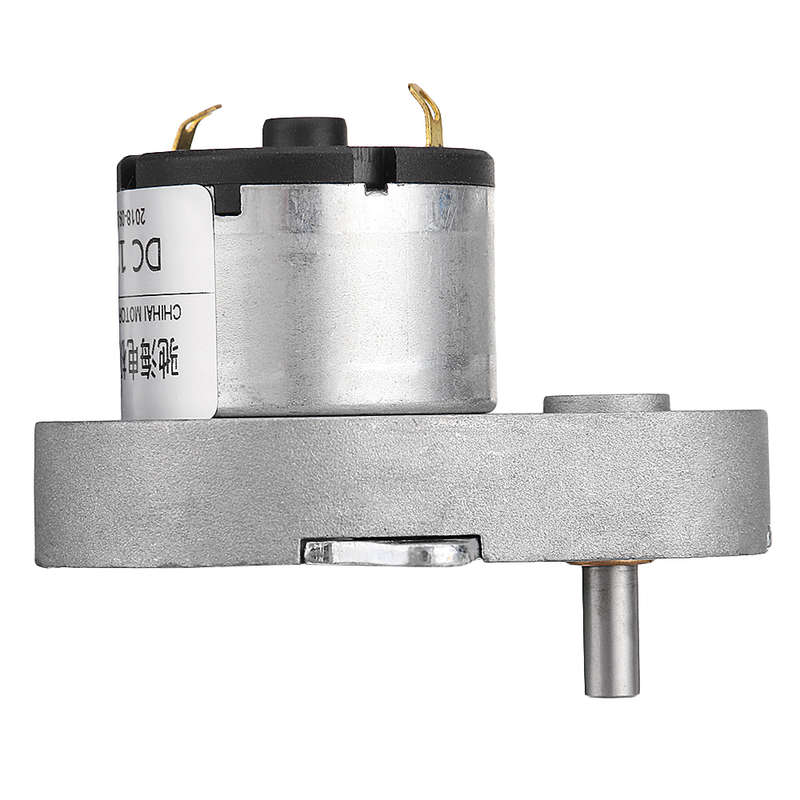

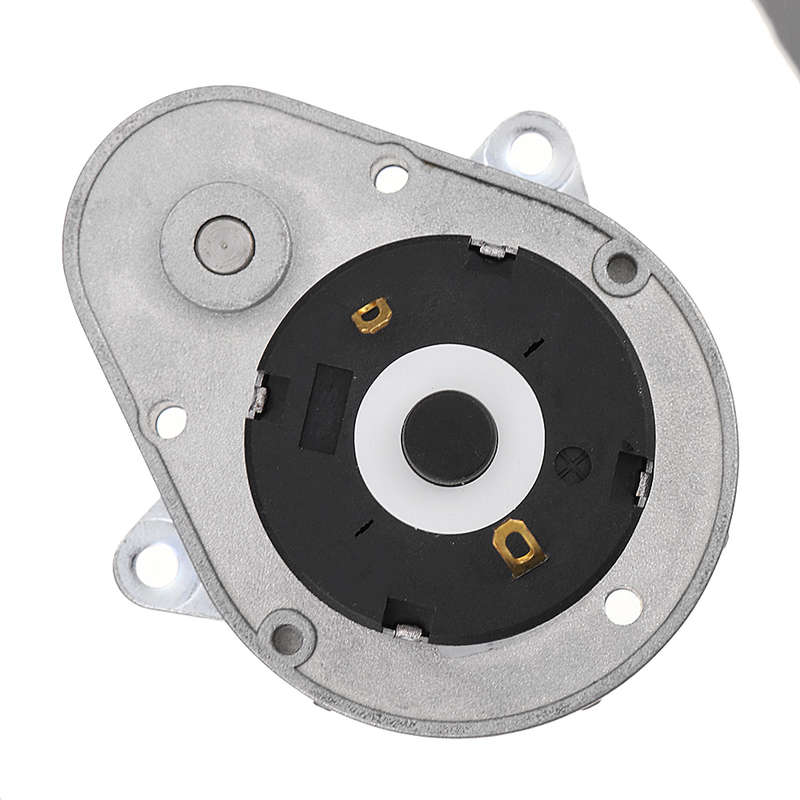

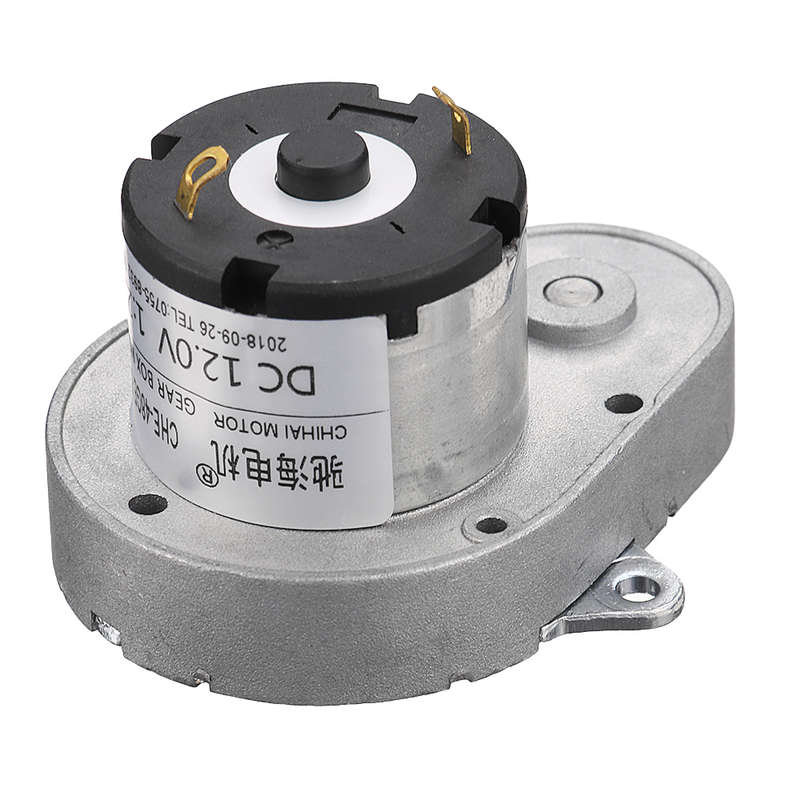

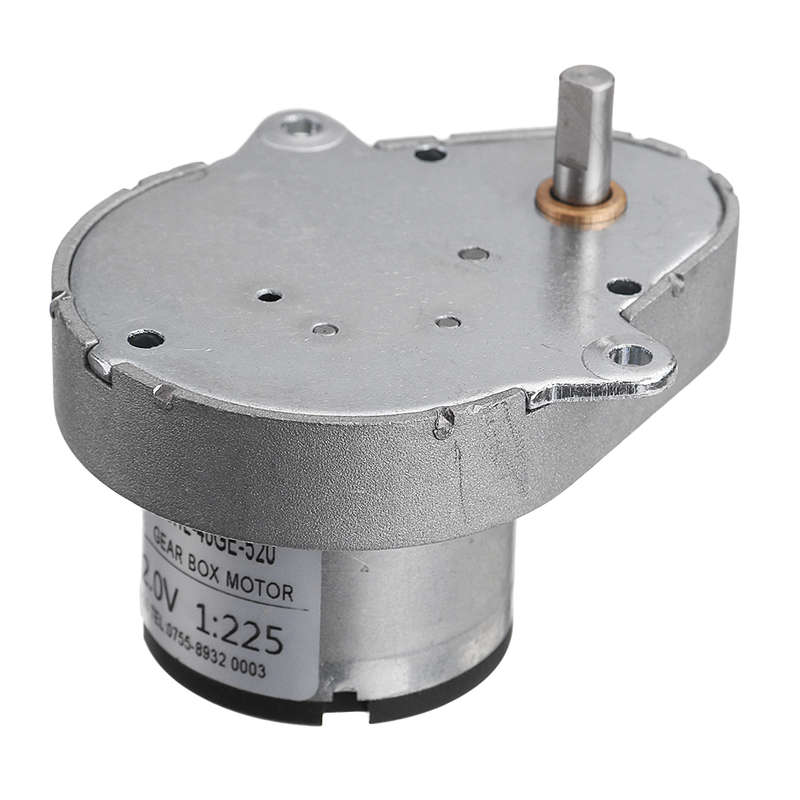

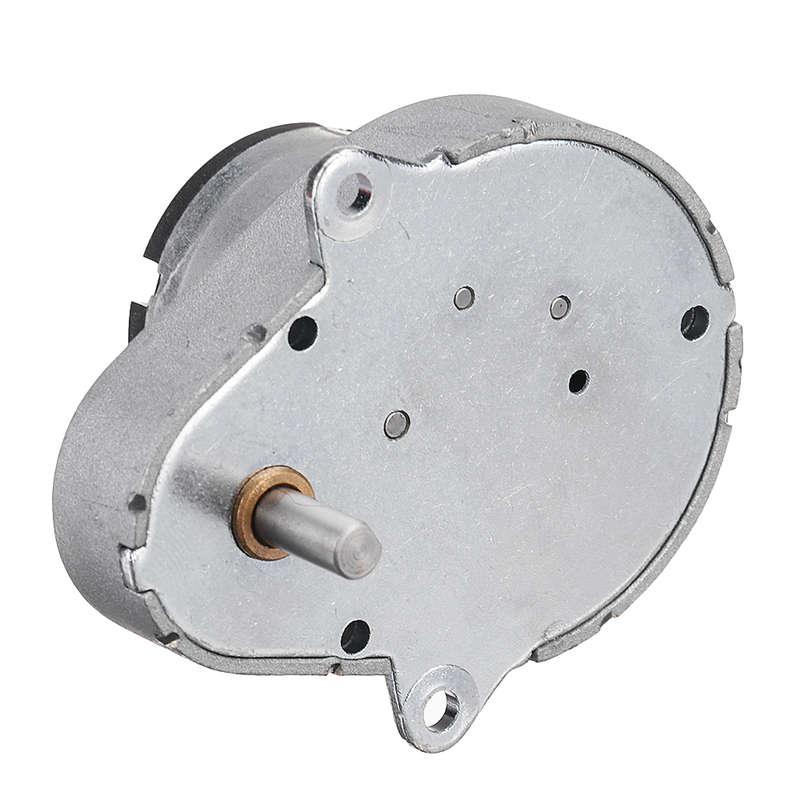

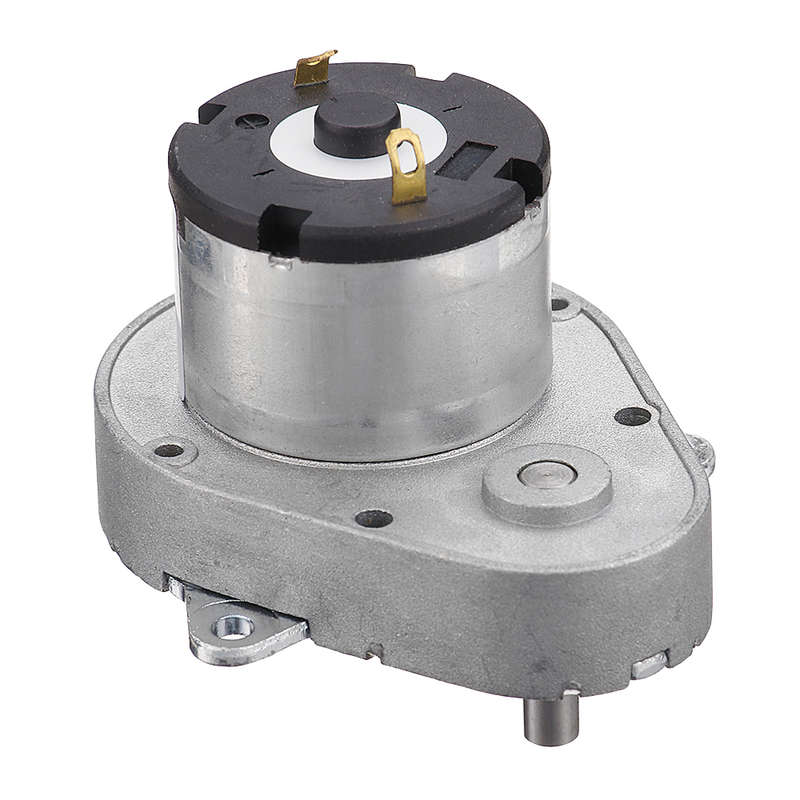

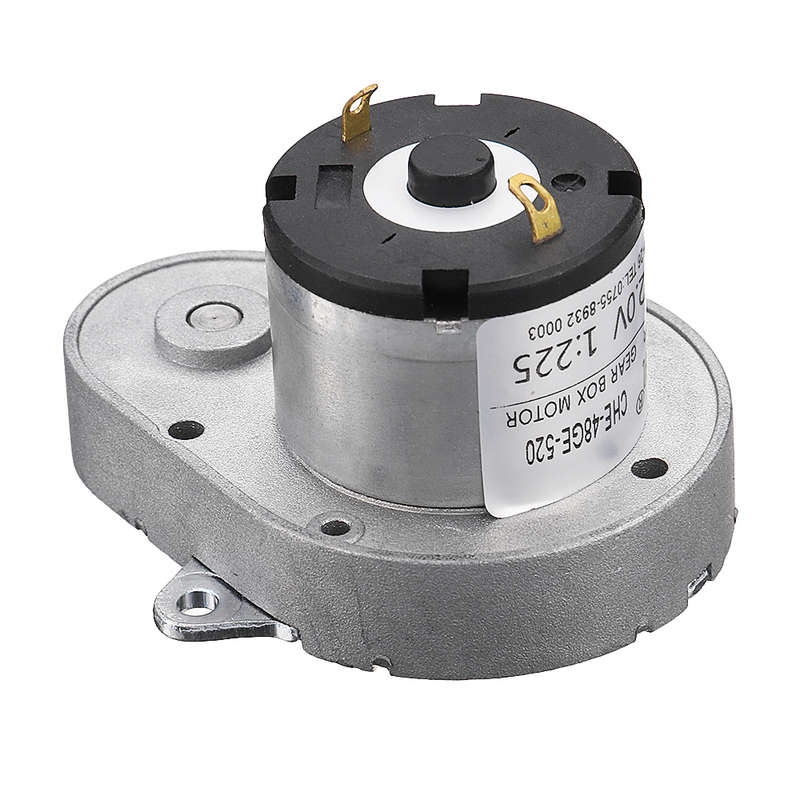

Chihai CHE-48GE-520 DC 12V 28rpm 1:225 Ratio Micro Permanent Magnet Reduction Gear Motor
New
Indicative market price: R524.56
R388.56
26% OFF
Closed
12 Jan 22 11:15
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 3 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
International
Customer ratings:
Product code
1366739[LICS]
Bob Shop ID
536579391
Description:
CHIHAI CHE-48GE-520 DC 12V 28rpm 1:225 ratio DC motor, permanent magnet micro reduction gear motor.
Specification:
Features:
1. Pure copper winding: the rotor is made of pure copper, with small resistance and strong conductivity, which increases the torque of the motor.
2. D type shaft : D type outlet shaft is more convenient for installation and is not easy to slip, saving installation time.
3. Carbon brush structure, stable life.With a damping strip, elastic and stable.
4. High torque, adjustable, low energy consumption, low noise, stable life, long life.
Package Included:
1 X DC Reduction Motor
More Details:
CHIHAI CHE-48GE-520 DC 12V 28rpm 1:225 ratio DC motor, permanent magnet micro reduction gear motor.
Specification:
| Type | CHE-48GE-520 |
| Shaft diameter | 5mm |
| Shaft length | 12.5mm, D type |
| Voltage | DC 1.5V-24V |
| Working voltage | 12V |
| Power max | 2.3W |
| Reduction ratio | 1:225 |
| No-load current | ≤65A |
| No load speed | 28RPM |
| Rated torque | 9.50kg.cm |
| Rated speed | 20RPM |
| Rated current | ≤0.50A |
| Locked-rotor torque | ≥30kg.cm |
| Plug the plug to turn the current | ≤1.7A(Do not allow long time block or repeated start) |
| Application | Intelligent toilet, intelligent trash can, intelligent robot, etc. |
Features:
1. Pure copper winding: the rotor is made of pure copper, with small resistance and strong conductivity, which increases the torque of the motor.
2. D type shaft : D type outlet shaft is more convenient for installation and is not easy to slip, saving installation time.
3. Carbon brush structure, stable life.With a damping strip, elastic and stable.
4. High torque, adjustable, low energy consumption, low noise, stable life, long life.
Package Included:
1 X DC Reduction Motor
