CHIHAI CHF-130SA-ABHL 6V 9500rpm Gear Motor Permanent Magnet DC Hall Coded Reduction Encoder Gear Mo CHIHAI CHF-130SA-ABHL 6V 9500rpm Gear Motor Permanent Magnet DC Hall Coded Reduction Encoder Gear Mo CHIHAI CHF-130SA-ABHL 6V 9500rpm Gear Motor Permanent Magnet DC Hall Coded Reduction Encoder Gear Mo
CHIHAI CHF-130SA-ABHL 6V 9500rpm Gear Motor Permanent Magnet DC Hall Coded Reduction Encoder Gear Mo CHIHAI CHF-130SA-ABHL 6V 9500rpm Gear Motor Permanent Magnet DC Hall Coded Reduction Encoder Gear Mo CHIHAI CHF-130SA-ABHL 6V 9500rpm Gear Motor Permanent Magnet DC Hall Coded Reduction Encoder Gear Mo

CHIHAI CHF-130SA-ABHL 6V 9500rpm Gear Motor Permanent Magnet DC Hall Coded Reduction Encoder Gear Mo

20 available / new
R440.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
643375976
Description:

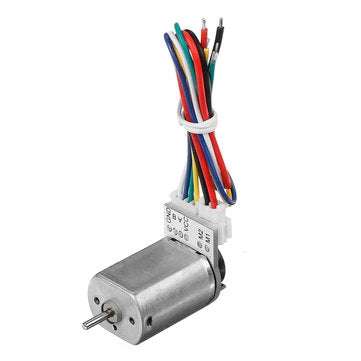

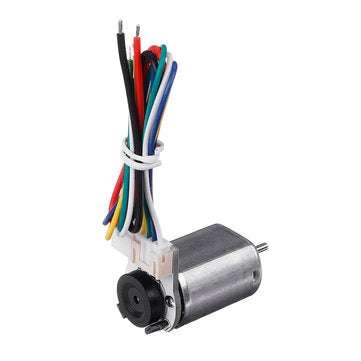

CHIHAI CHF-130SA-ABHL 6V Permanent Magnet DC Hall Coded Reduction Gear Motor Specification:
Brand Chihai motor
Model CHF-130SA-ABHL (Permanent magnet dc hall coded reduction motor)
Shaft diameter a2mm
Shaft Length 10mm
Weight About 28g
Applications Automation of bathroom appliances,robot education, Applications TT motor coding input,smart toys,smart instrument,etc

Voltage DC6.0V
No-load Speed 9500±10% rpm
No-load Current a150mA
Rated load 20 g.cm
Rated speed 6200±10%rpm
Rated Current 0.55 A MAX
Rated Power 1.3W
STALL Torque a45 g.cm
STALL Current 1.2A

Feature:
- N-S 14 pole magnet. - AB phase dual hall encoding board withbuilt-in pull-up resistence. - Metal gear reduction mechanism: high strength, stable transmission, high efficiency and high torque. - Frequent blocking or frequent start-up and upset are not recommended in the process of use, which will significantly reduce the service life. Package Included: 1 x Reduction Gear Motor
More Details:























Add to cart
