Chihai CHF-GM12-N20VA DC 12V Double Shaft Gear Motor Reducer Reduction Motor (TYPE: A)

20 available / new

R464.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3471

93.38 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

641120015

SELECTED OPTION:
TYPE: A

Descriptions:

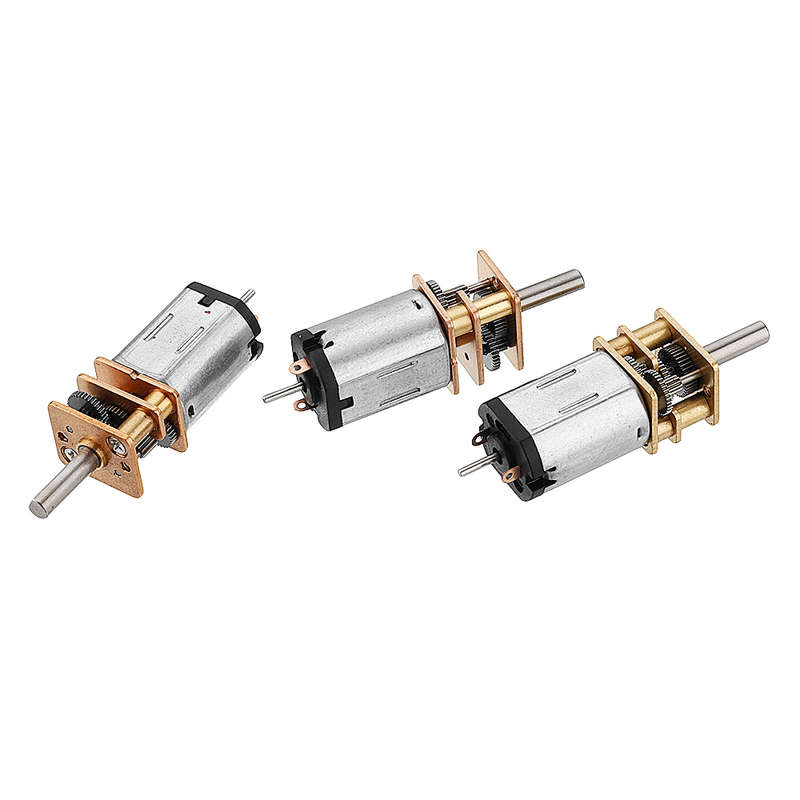

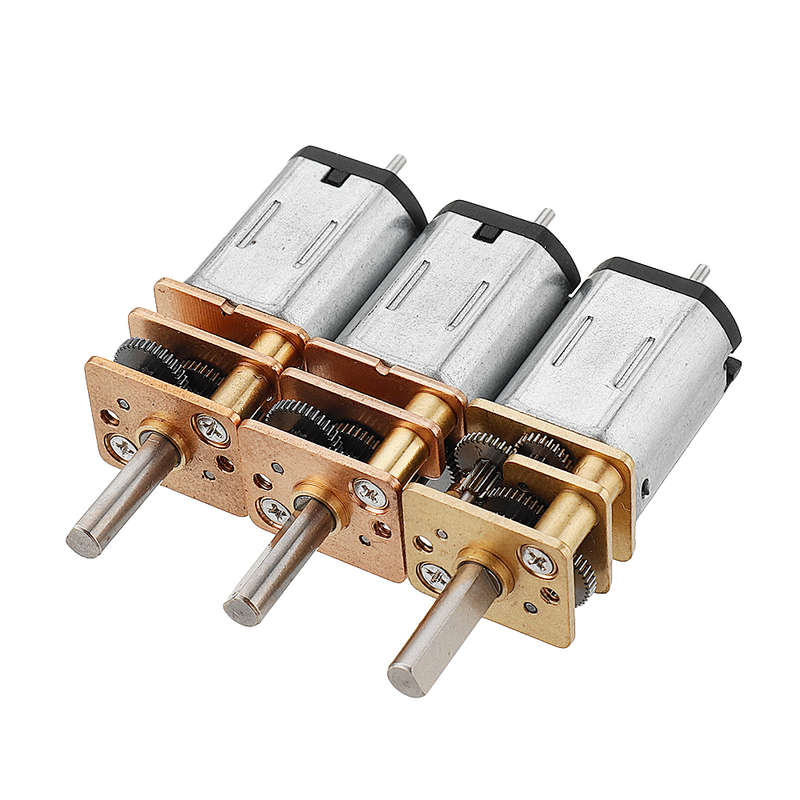

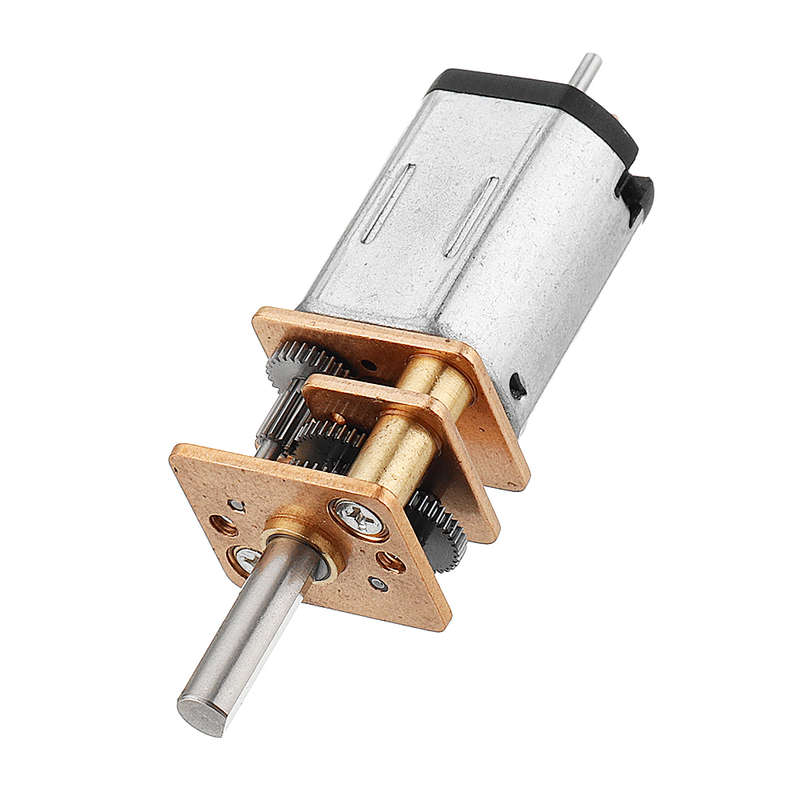

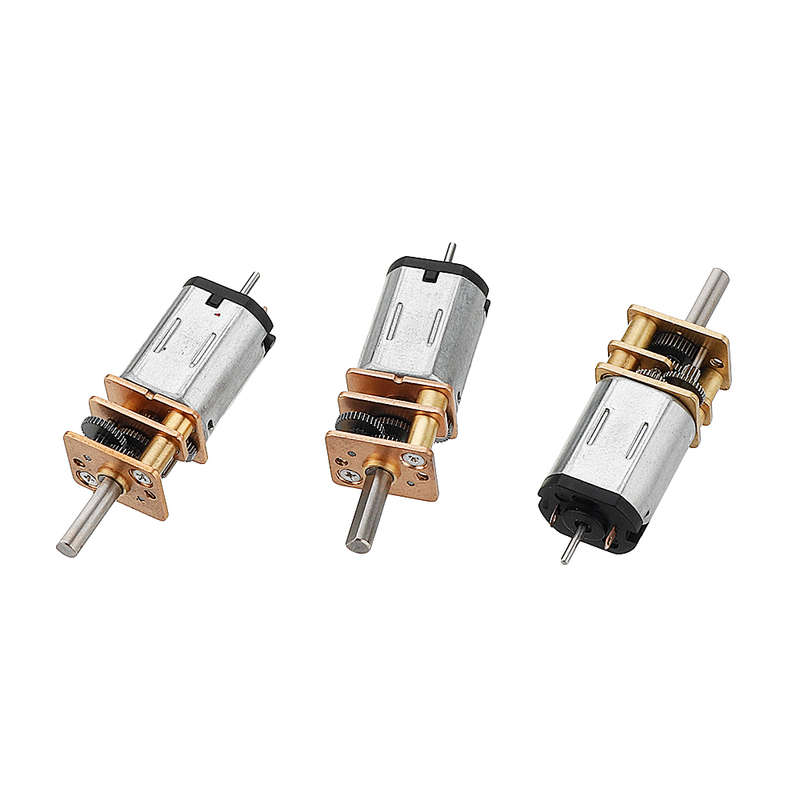

Chihai CHF-GM12-N20VA 12V double shaft gear reducer reduction motor

Specifications:
Brand: Chihai Motor
Model:CHF-GM12-N20VA12V Double Shaft Gear Reducer

Type	Rated voltage	Max. input power	Ratio	No load		Rated				Blocking
Type	Rated voltage	Max. input power	Ratio	Current	Speed	Torque		Speed	Current	Current	Torque
A	DC12.0V	0.9W	1:50	a62mA	440rpm	0.40Kg.cm	39.2mN.m	230rpm	a0.22A	3.4A	0.65Kg.cm 1.3Kg.cm
B			1:100	a63mA	220rpm	0.80Kg.cm	78.4mN.m	130rpm		4.4A	0.65Kg.cm 1.3Kg.cm
C			1:298	a66mA	73rpm	2.30Kg.cm	225.5mN.m	42rpm		7.4A	3.0Kg.cm

Features:

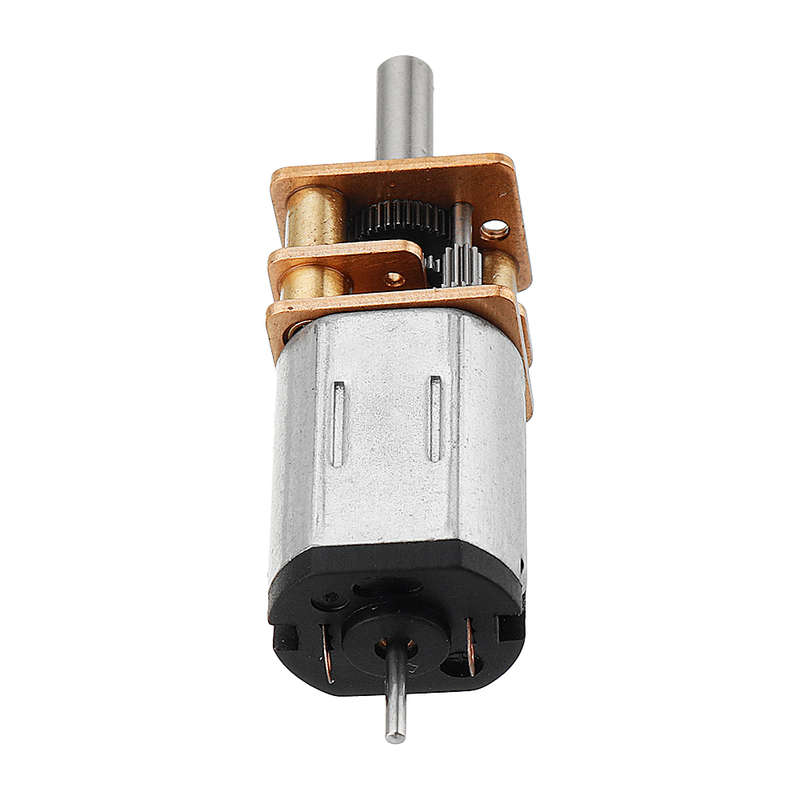

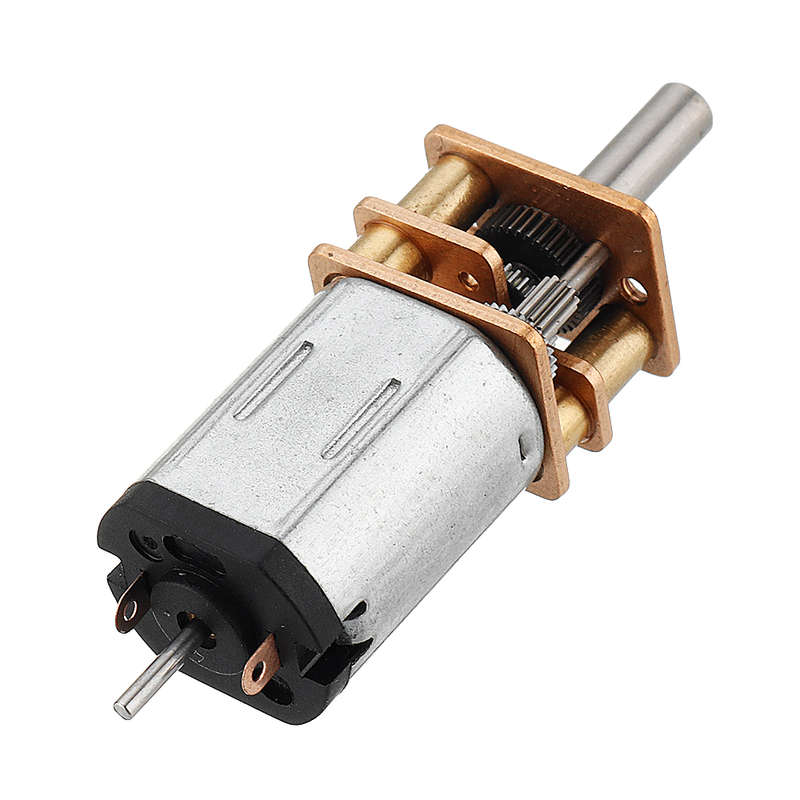

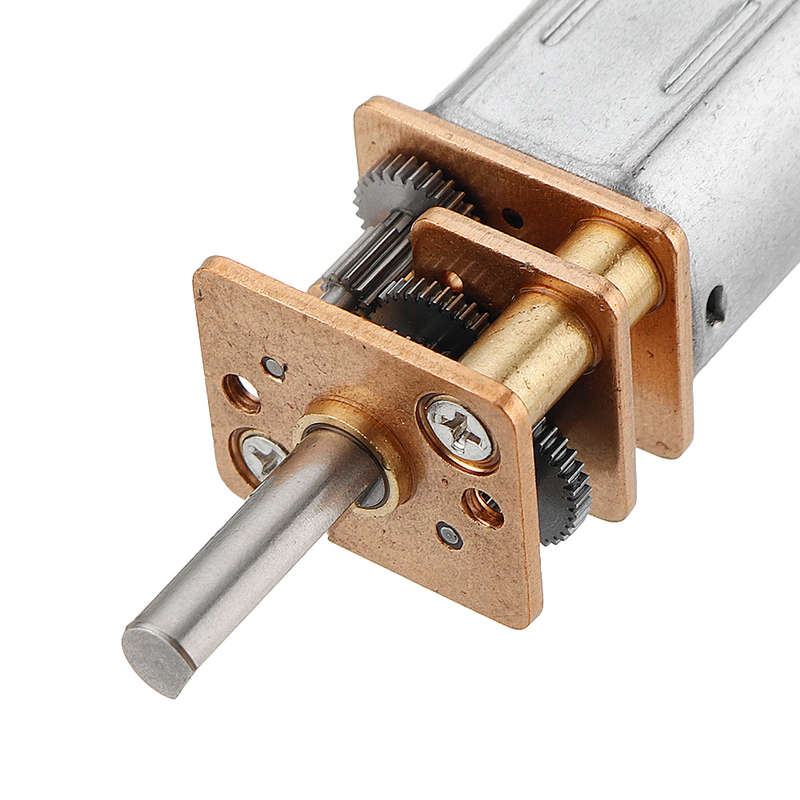

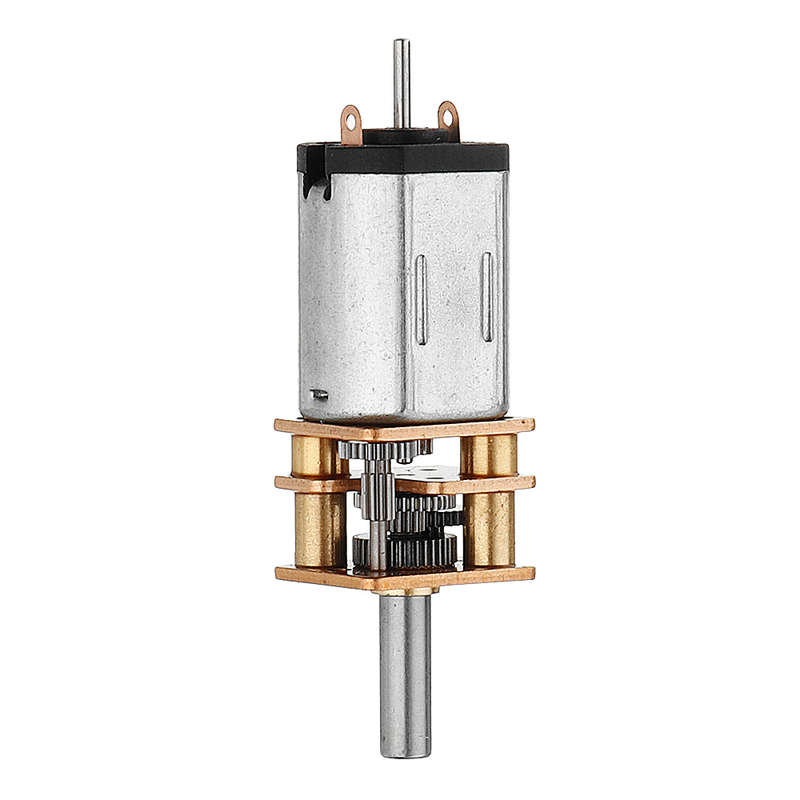

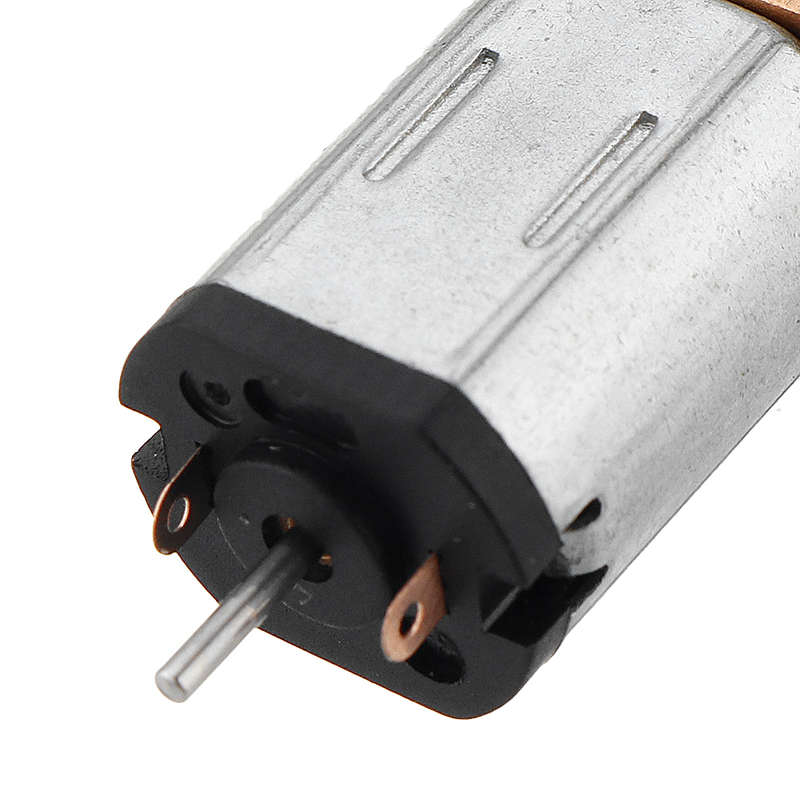

- Stainless steel shaft, military manufacturing technology, high-precision reducer mechanism, smooth and quiet operation; - Galvanized steel tensile shell with a bright surface; - High-performance core material with additional DV de-sparking parts for the rotor; - The rear output shaft is convenient for mounting the code wheel or magnetic ring.

Package Included:
1 x12V Double Shaft Gear Reducer
