Name: Chihai CHR-775S Magnetic Holzer Encoder DC Motor 24.0V 8000RPM 12.0V 4000RPM Robot Driving Motor
SKU: POA6019653
Price: 430.58 ZAR
Availability: SoldOut

Chihai CHR-775S Magnetic Holzer Encoder DC Motor 24.0V 8000RPM 12.0V 4000RPM Robot Driving Motor

New

100 were available

R430.58

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.

The seller has indicated that they will usually have this item ready to ship within 10 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

ReliableStore(Blacklisted)

86.29 % Positive ratings

Buyer protection

How you're covered

Returns

Warranty Type: Replacement 90 days

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Product code

POA6019653

Bob Shop ID

607624905

Description:

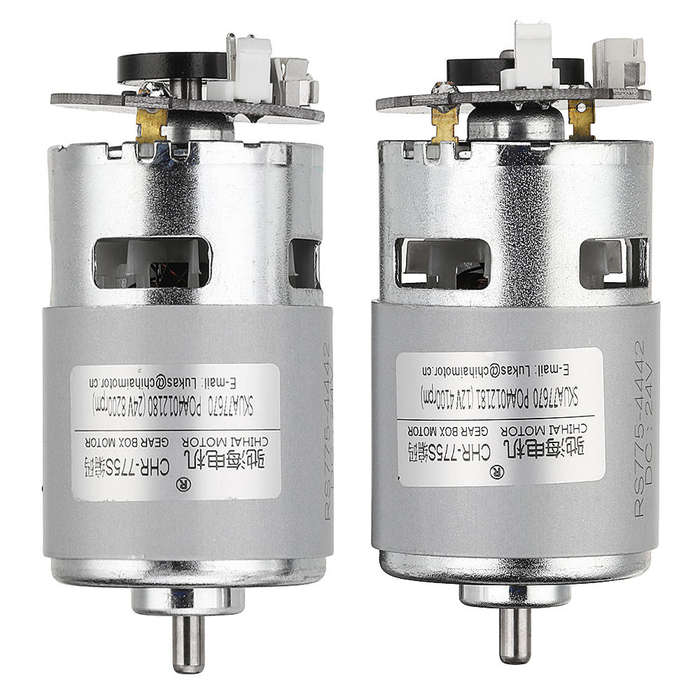

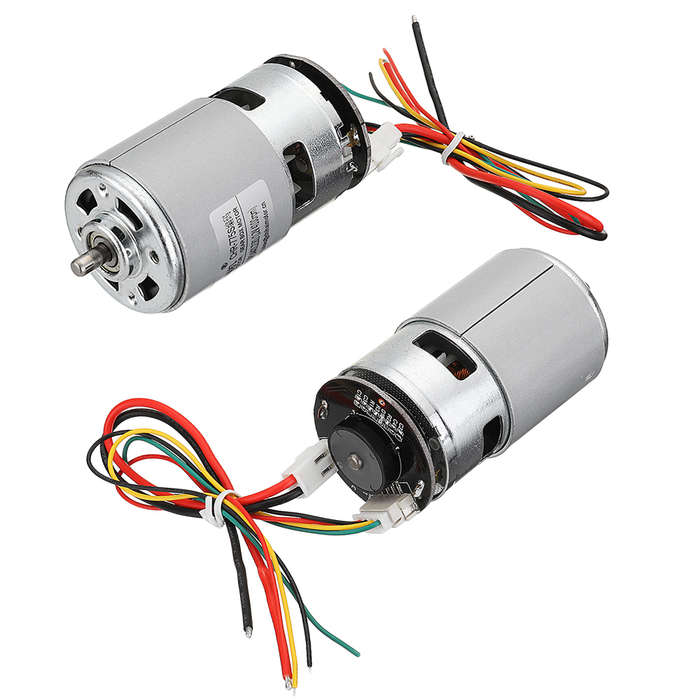

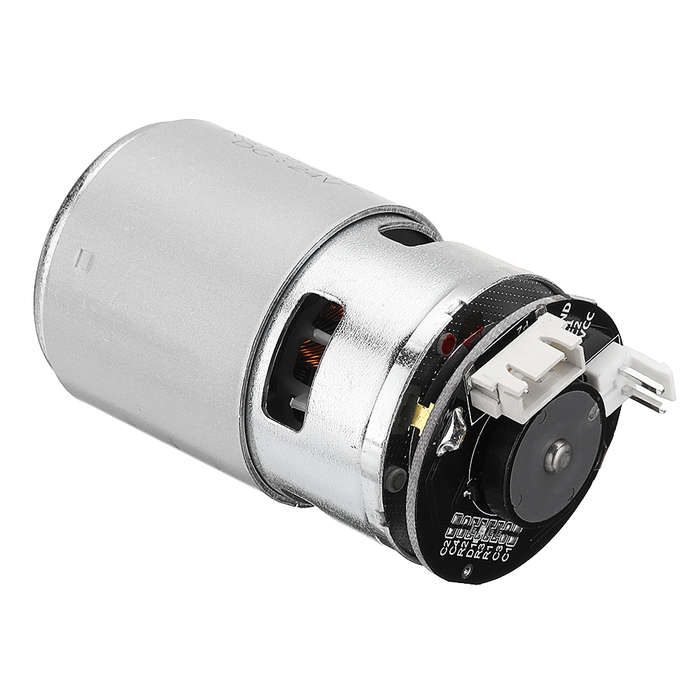

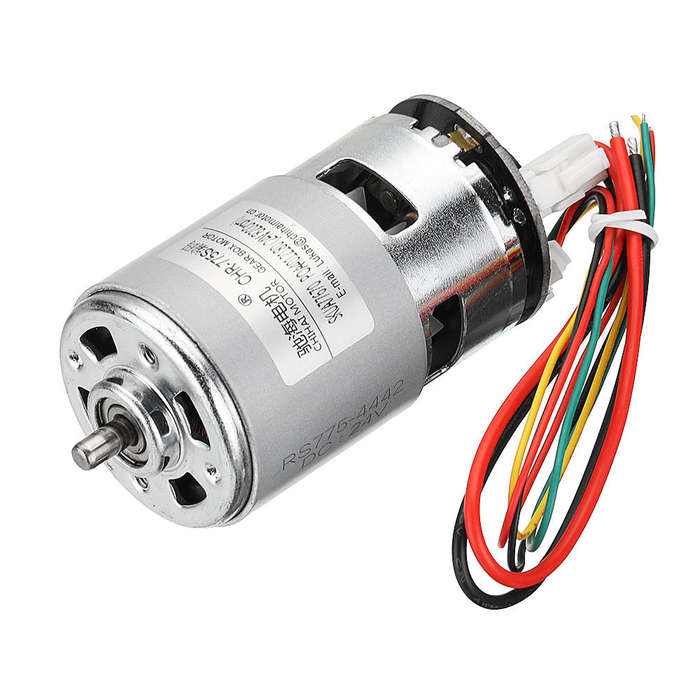

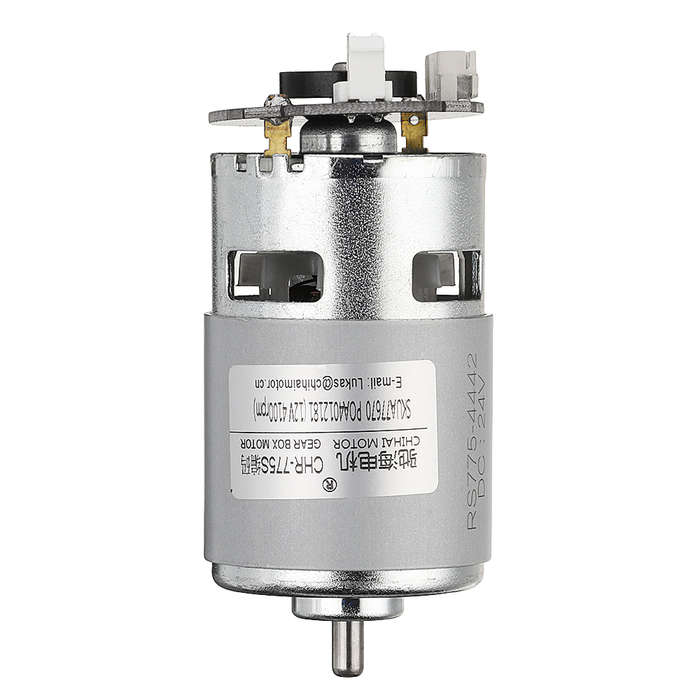

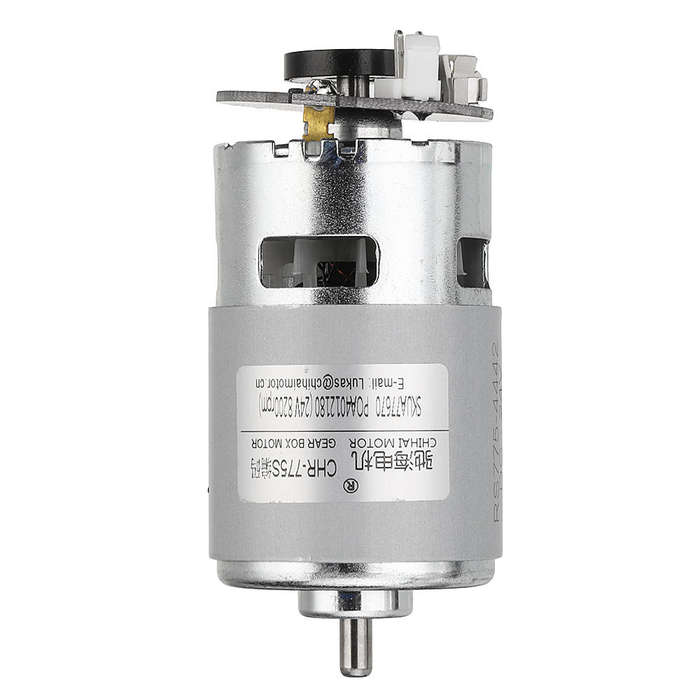

Chihai CHR-775S permanent magnetic Holzer encoder DC motor, 24.0V 8000RPM / 12.0V 4000RPM robot driving motor.

Specification:

Diameter: 42mm x 85mm

Shaft diameter: 5mm

Shaft length: 15mm
Usage: Boat, home appliance, car

Working voltage	12V	24V
Rotational Direction	CW/CCW
No-load speed	4100rpm	8200rpm
No-load current	0.45A Max.	0.55A Max.
The rated load	400g.cm	800g.cm
Rated speed	3200rpm	7000rpm
Rated current	2.50A Max.	3.50A Max.
Rated power	13W	70W
Locked-rotor torque	&geq;2.2 Kg.cm	&geq;5.0 Kg.cm
Locked-rotor current	12.0 A	25.0 A
Start the voltage	DC 3.0V

Applications:
Planetary deceleration motor, intelligent robot, electric curtain, intelligent balance car, intelligent manipulator, etc.

Features:

1. Pure copper wire winding

The rotor part adopts pure copper group, small resistance and strong conductivity, so that the motor torque increases.

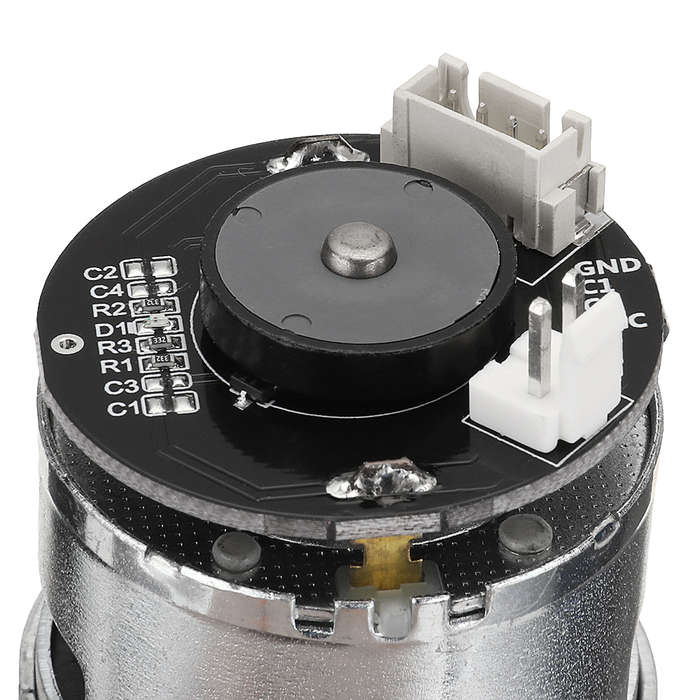

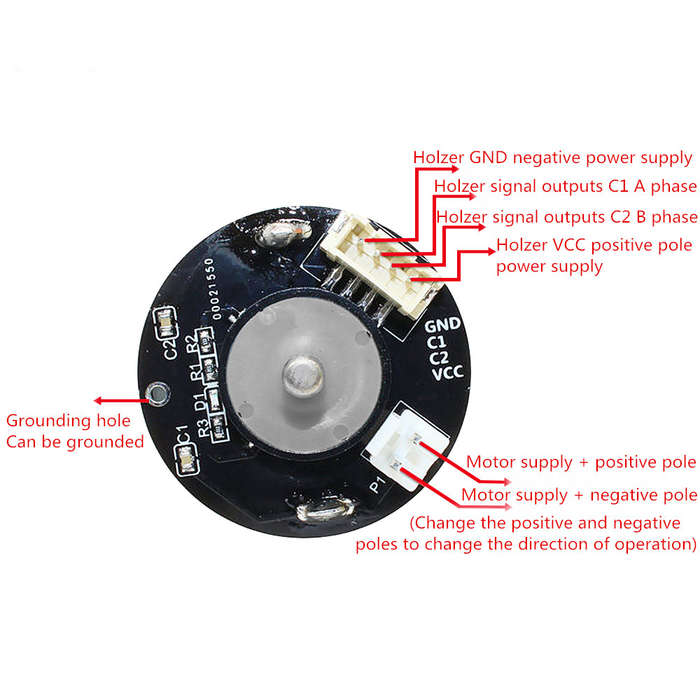

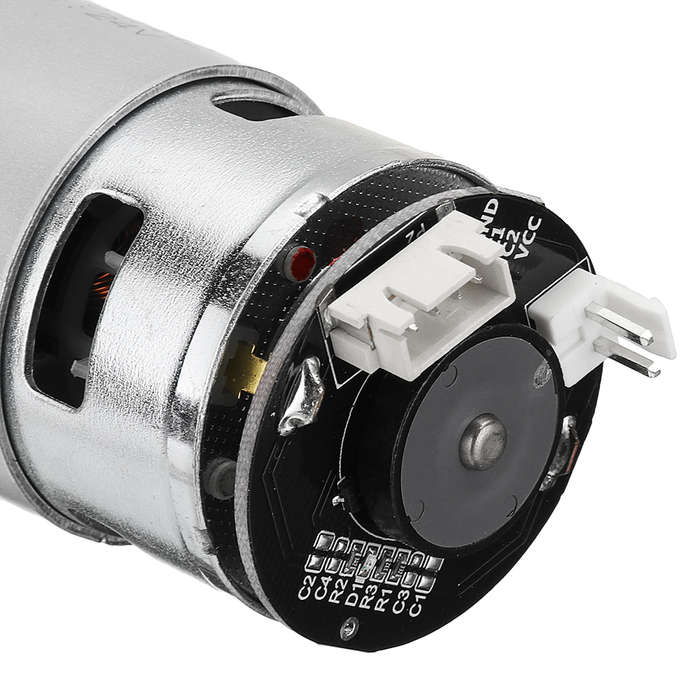

2. patch type magnetic Holzer encoder.

Patch Holzer, signal output stability.

3. Built in cooling fan blades.

Balance heat dissipation, ensure operation temperature and ensure stable operation.

4. the service life of the rated torque range is longer than 1000H, and maintenance free. (super torque life will be greatly shortened.)

Package Included:
1 X Chihai CHR-775S DC motor

More Details:

Chihai CHR-775S Magnetic Holzer Encoder DC Motor 24.0V 8000RPM 12.0V 4000RPM Robot Driving Motor
