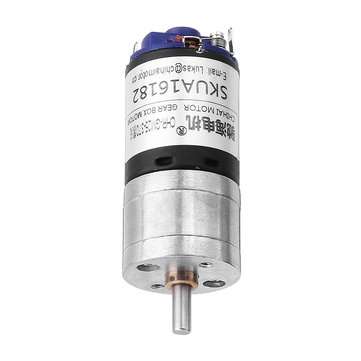

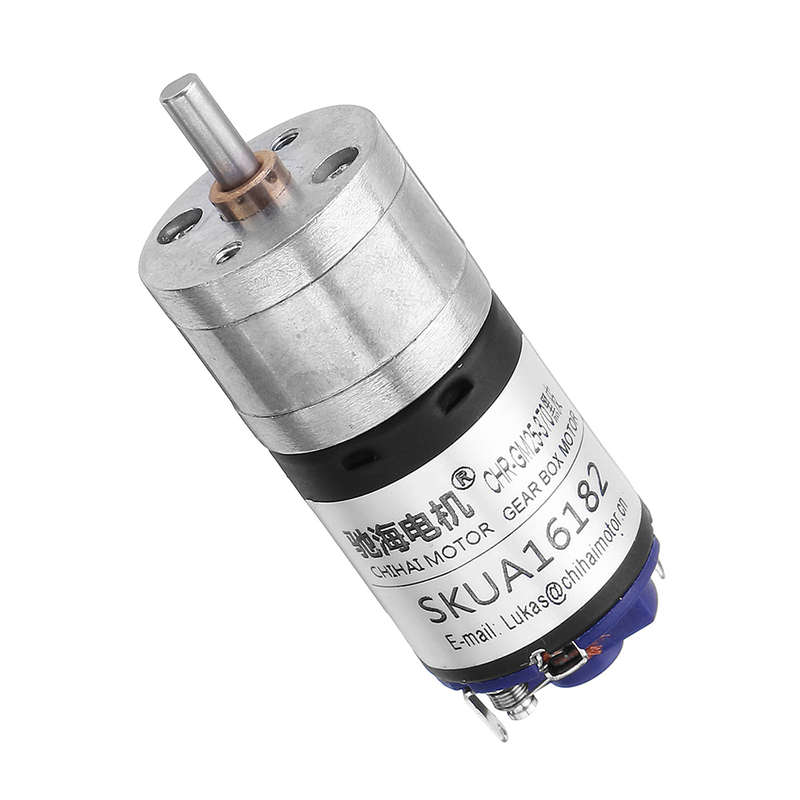

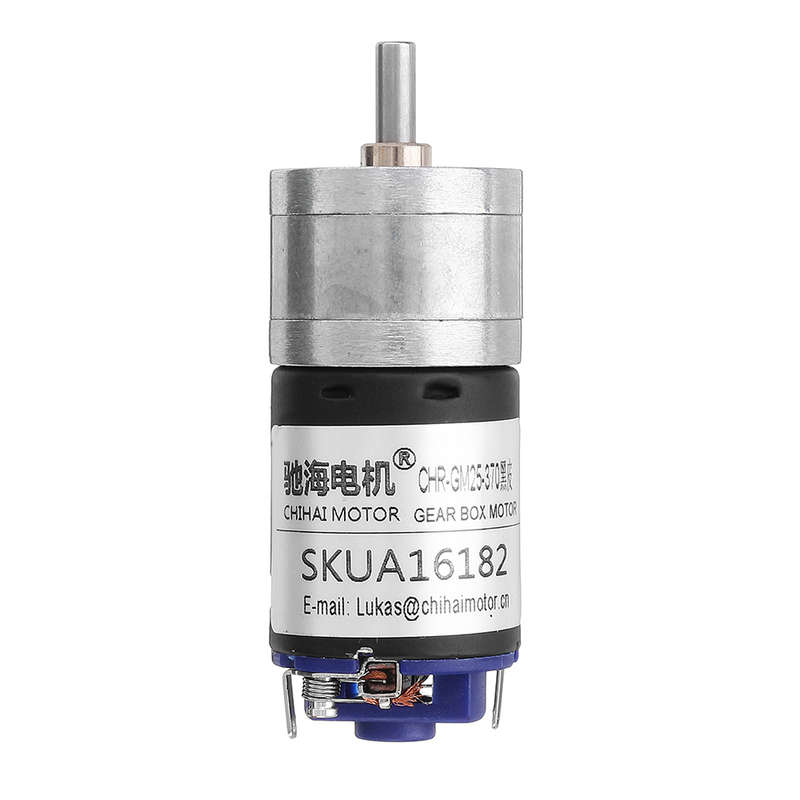

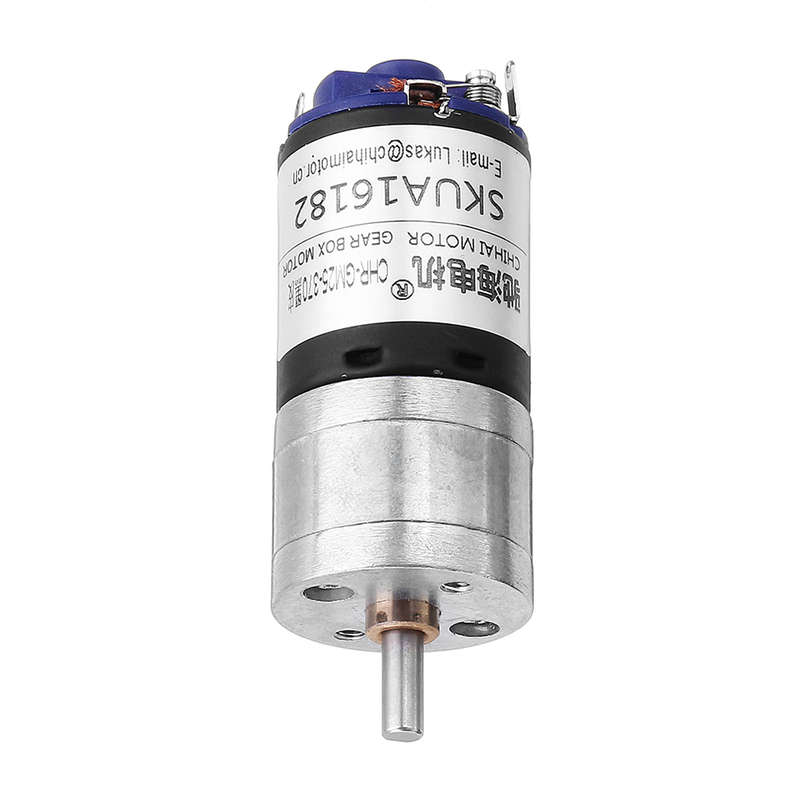

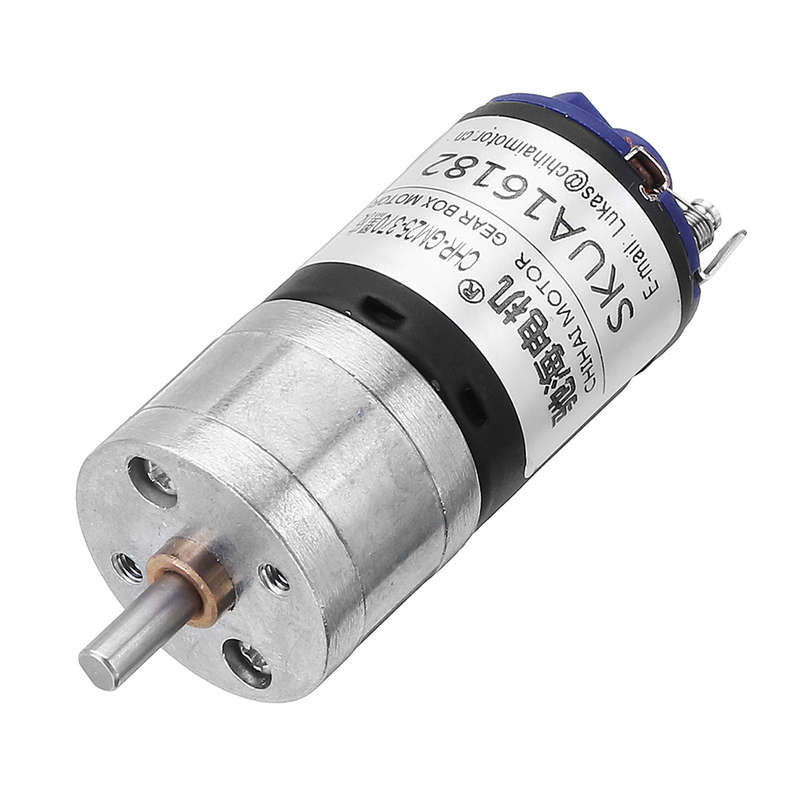

CHIHAI CHR-GM25-BK370 12V 2000rpm 1:10 Ratio DC Motor High Speed Strong Magnetic Reduction Motor

20 available / new

R539.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3523

93.50 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

643375982

Description:

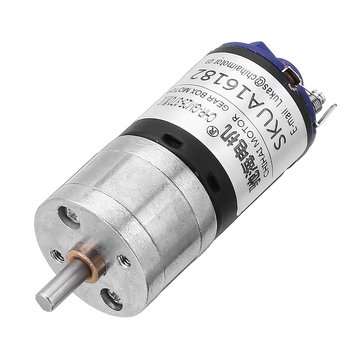

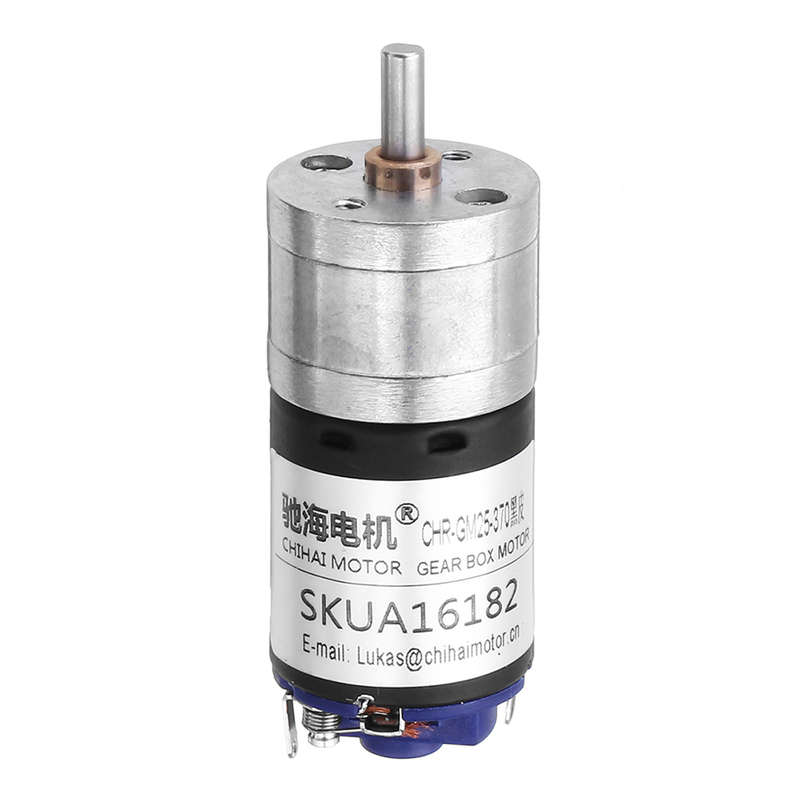

CHIHAI GM25-BK370 12V 2000rpm DC motor, high speed strong magnetic reduction motor.

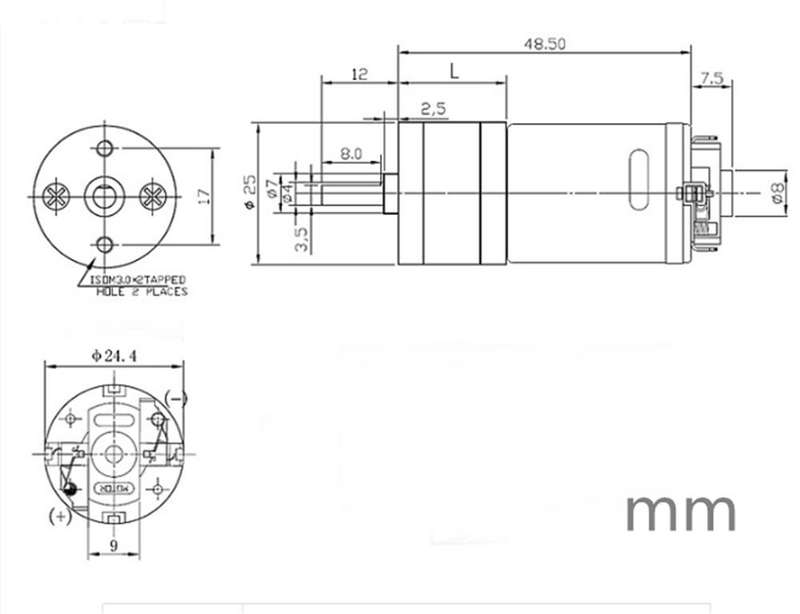

Specification:

Type	CHR-GM25-BK370
Shaft diameter	4mm, D type
Voltage max	DC 1.5-12V
Working voltage	12V
Power max	26W
Reduction ratio	1:10
No load speed	2000RPM
No-load current	a600A
Rated torque	1.1kg.cm(0.10N.m)
Rated torque max	8.0kg.cm(0.8N.m)
Rated speed	1580RPM
Rated current	a2.7A
Plug the plug to turn the current	a16.0A
Speed reducer length	19.0L
Application	Office equipment, robot, camera rocker arm, home appliances.

Features:
1. Pure copper wire winding: the rotor part adopts pure copper group with small resistance and strong conductivity,
which increases the motor torque.

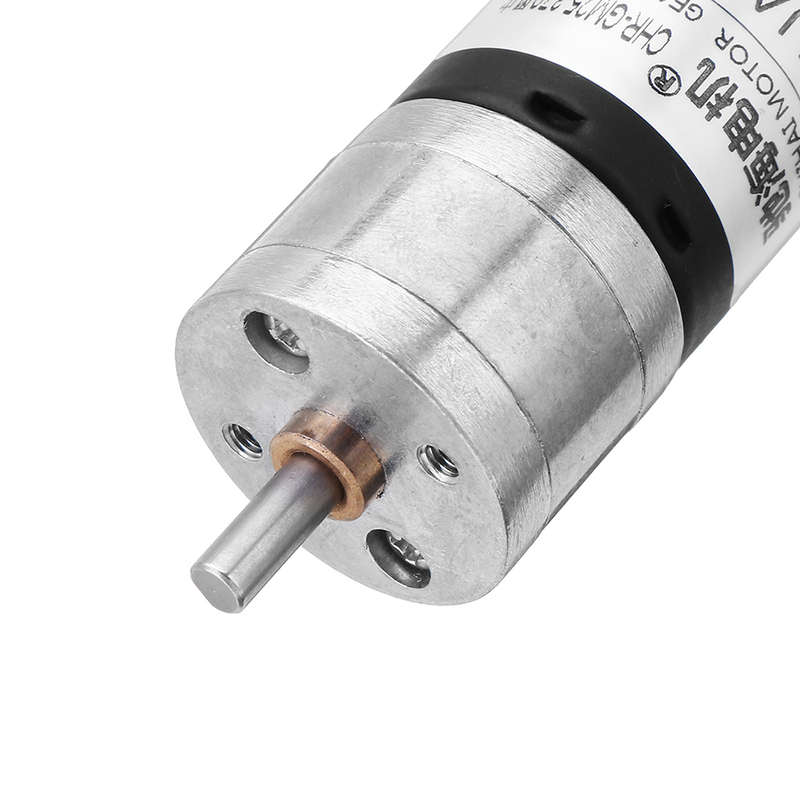

2. D type shaft : D type outlet shaft is more convenient for installation and is not easy to slip, saving installation time.

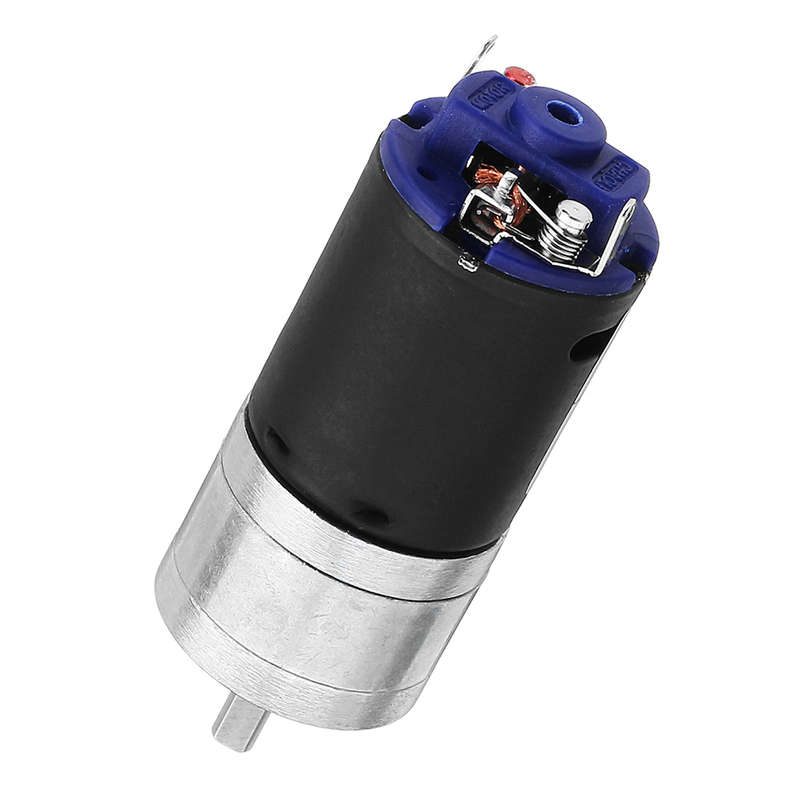

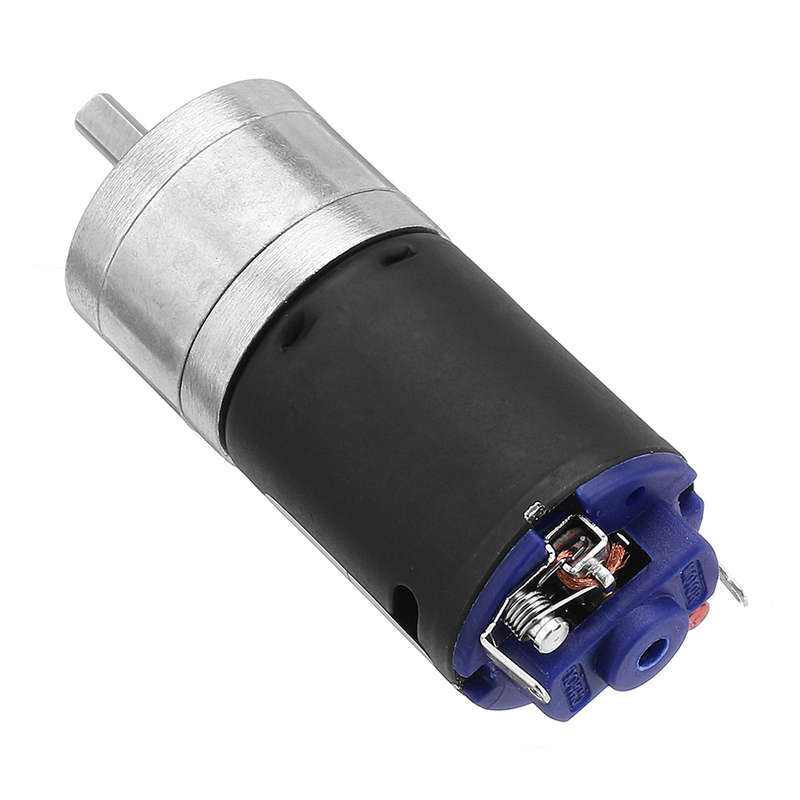

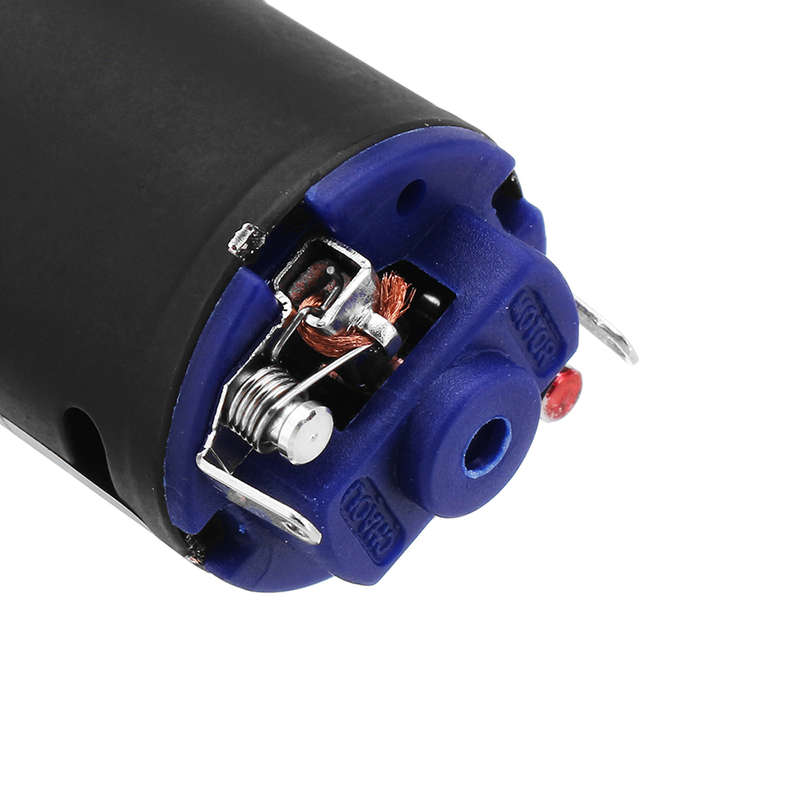

3. Extended carbon brush: tool type extended carbon brush, replaceable.
4. Long life, high torque, adjustable, low noise, positive and negative turn, stable.

Package Included:
1 XDC motor

More Details:
