ChiHai CHW-4058-3162 Double Shaft Metal Gear Motor DC 12/24V 110/220RPM Worm Gea... (VOLTAGE: DC24V)

20 available / new

R932.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3581

93.15 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

643375984

SELECTED OPTION:
VOLTAGE: DC24V

Description:

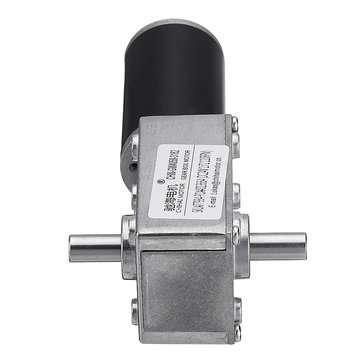

ChiHai CHW-4058-3162(31ZY) DC 12/24V 110/220RPMpermanent magnetic worm gear reducer motor fits for intelligent car engine.

Specification:
Model: CHW-4058-3162(31ZY)
Outer Diameter Size: 40 x 36 x 117mm (excluding axle and wiring terminals) Axle Diameter: Axle Output Diameter 8mm, D Type, D Thickness 7.0mm Output shaft length: 15mm D length, 13mm long, both sides output shaft

Type	80 Type input motor
Working Voltage (V)	DC 12.0	DC 24.0
Max. power (W)	20	35
Reduction ratio	1:36	1:72
No-load current (mA)	a400	a200
No-load speed (RPM)	220	110
Rated torque (kg.cm)	8.0	16.0
Rated speed (RPM)	175	87
Rated current (A)	a1.6	a1.2
Plugging torque (kg.cm)	a25.0	a50
Blocking current (A)	a6.5	a5.0

Features:
1. Pure copper winding wire The rotor is made of pure copper with low resistance and high conductivity, which improves the motor torque. 2. D axis font D-shaped shaft, more convenient to install, not easy to slide, save installation time. 3. All metal structure Wear resistant, torsion resistant, long service life, smooth operation. 4. Reducer adopts ball bearing structure Low friction resistance, low noise, long service life, fast heat dissipation, high precision and strong composite capacity. 5. The service life in the nominal torsion range is more than 2000H, delivery of the maintenance. (Ultra-twist life is going to be drastically reduced) 6. frequent blocking or frequent start-up and upset are not recommended in the process of use, which will significantly reduce the service life.
Package Included:
1 XCHW-4058-3162 DCMotor
