Description:

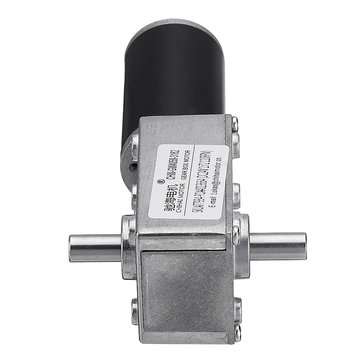

ChiHai CHW-4058-3162(31ZY) DC 12/24V 110/220RPMpermanent magnetic worm gear reducer motor fits for intelligent car engine.

Specification:
Model: CHW-4058-3162(31ZY)
Outer Diameter Size: 40 x 36 x 117mm (excluding axle and wiring terminals) Axle Diameter: Axle Output Diameter 8mm, D Type, D Thickness 7.0mm Output shaft length: 15mm D length, 13mm long, both sides output shaft

Type	80 Type input motor
Working Voltage (V)	DC 12.0	DC 24.0
Max. power (W)	20	35
Reduction ratio	1:36	1:72
No-load current (mA)	a400	a200
No-load speed (RPM)	220	110
Rated torque (kg.cm)	8.0	16.0
Rated speed (RPM)	175	87
Rated current (A)	a1.6	a1.2
Plugging torque (kg.cm)	a25.0	a50
Blocking current (A)	a6.5	a5.0

Features:
1. Pure copper winding wire The rotor is made of pure copper with low resistance and high conductivity, which improves the motor torque. 2. D axis font D-shaped shaft, more convenient to install, not easy to slide, save installation time. 3. All metal structure Wear resistant, torsion resistant, long service life, smooth operation. 4. Reducer adopts ball bearing structure Low friction resistance, low noise, long service life, fast heat dissipation, high precision and strong composite capacity. 5. The service life in the nominal torsion range is more than 2000H, delivery of the maintenance. (Ultra-twist life is going to be drastically reduced) 6. frequent blocking or frequent start-up and upset are not recommended in the process of use, which will significantly reduce the service life.
Package Included:
1 XCHW-4058-3162 DCMotor
