Chihai CHW-GH4632-370 Reduction Gear Encoder Motor Permanent Magnet DC Hall... (ROTATE SPEED: 60RPM)

20 available / new

R523.00

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3465

93.47 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Condition

New

Location

International

Bob Shop ID

641120020

SELECTED OPTION:
ROTATE SPEED: 60RPM

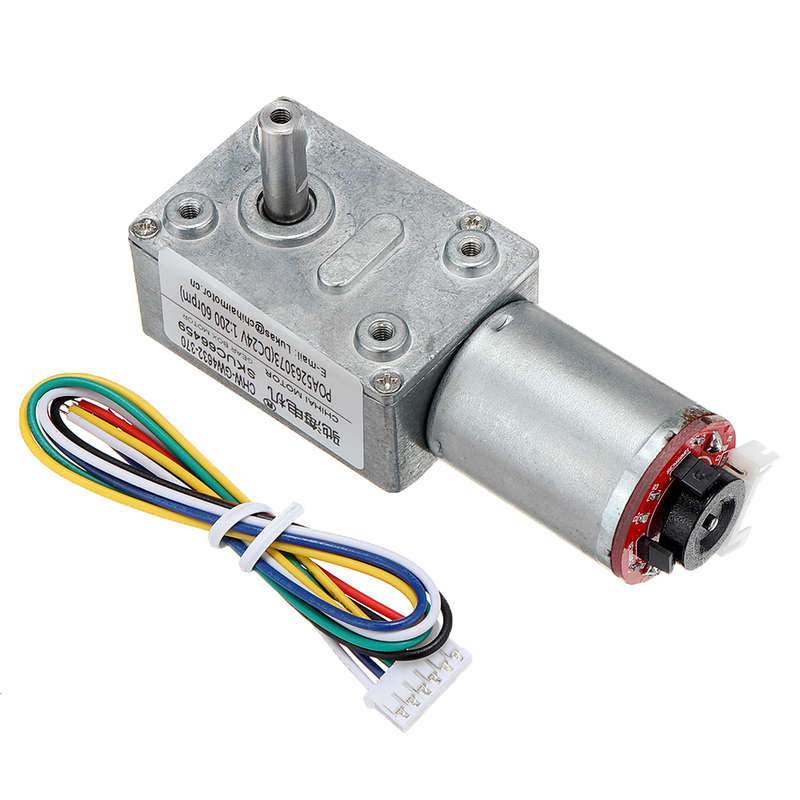

Descriptions: Chihai CHW-GH4632-370 reduction gear motor permanent magnet dc hall coding motor with code
Specifications:
Brand: Chihai Motor
Model:CHW-GH4632-370 DC hall reduction motor

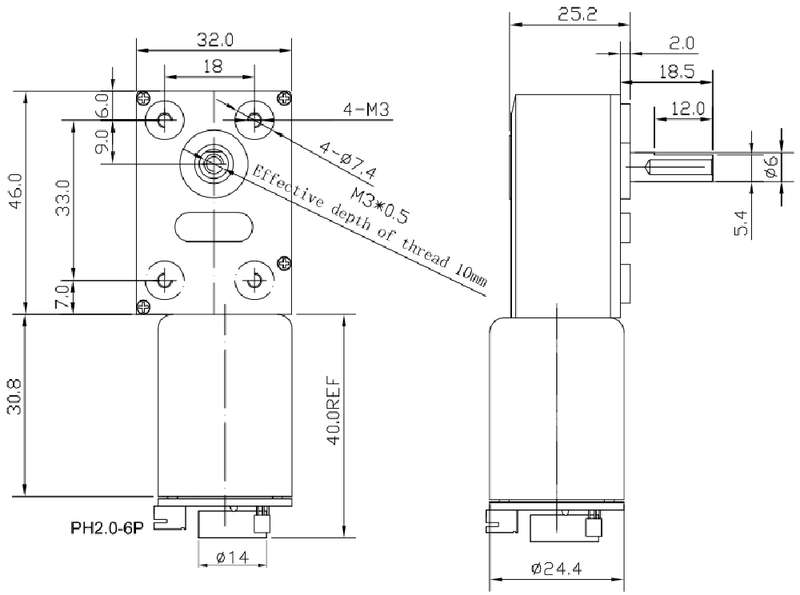

Shaft Length: 55mm full threaded shaft Shaft Diameter: M6 x 1.0 threaded shaft Voltage: 12V/24V Weight: about 200g Machine Size: diameter 25mm, total length 45mm

Voltage (V)	12.0	24.0
Out Power (W)	3.3	12.0
Reduction Ratio	1:200
No load Speed(rpm)	30	60
No load Current (mA)	a150	a200
Nominal Torque (Kg.cm)	10.0	7.5
Nominal Speed (rpm)	21	42
Nominal Current (A)	a0.5	a0.7
Stall Torque (kg.cm)	can't exceed 30.0kg.cm
Stall Current (A)	a1.2	a2.3
Hall Signal (11 x RATIO)	2200

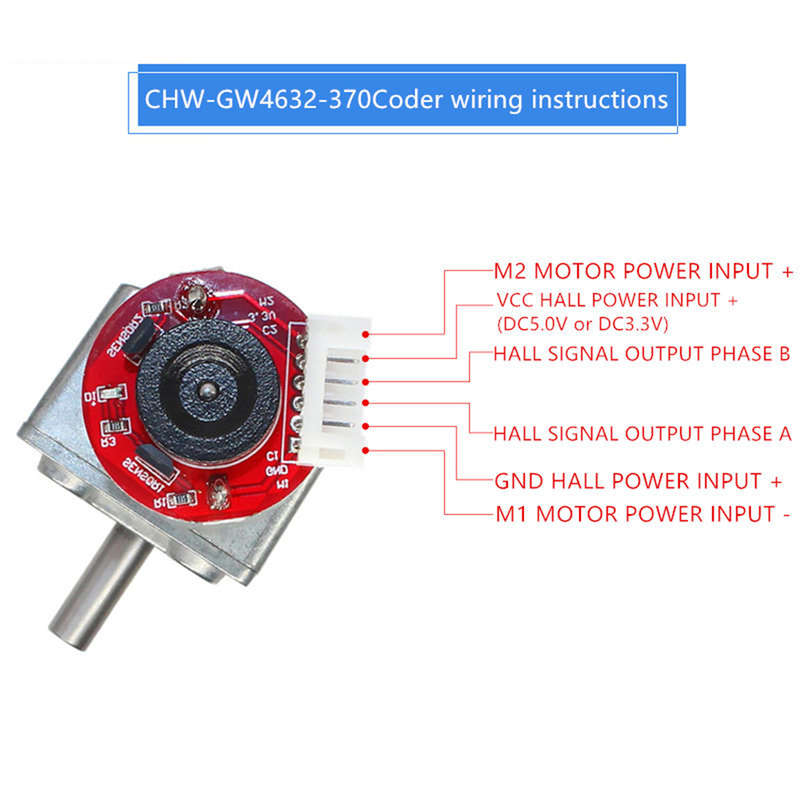

Coder Wiring Instruction: - M2 motor power input + - VCC hall power input + (DC 5.0V or DC 3.3V) - Hall signal output phase B - Hall signal output phase A - GND hall power input + - M1 motor power input -
Features:
- Large torque, adjustable, positive and negative; - Low energy consumption and low noise; - Worm gear reduction drive, strong self-locking power off; - The rotor part is made of pure copper, the resistance is small, and the conductivity is strong, which makes the motor torque increase; - M6 international threaded shaft. Package Included:
1 Pc xChihai CHW-GH4632-370 reduction gear motor More Details:
