Chihai CHW-GM12-N20VA DC 6V 18rpm Worm Gear Motor Gear Box Worm Reducer Electric Motor

New

20 available

R550.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3921

92.44 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

651225087

Description:

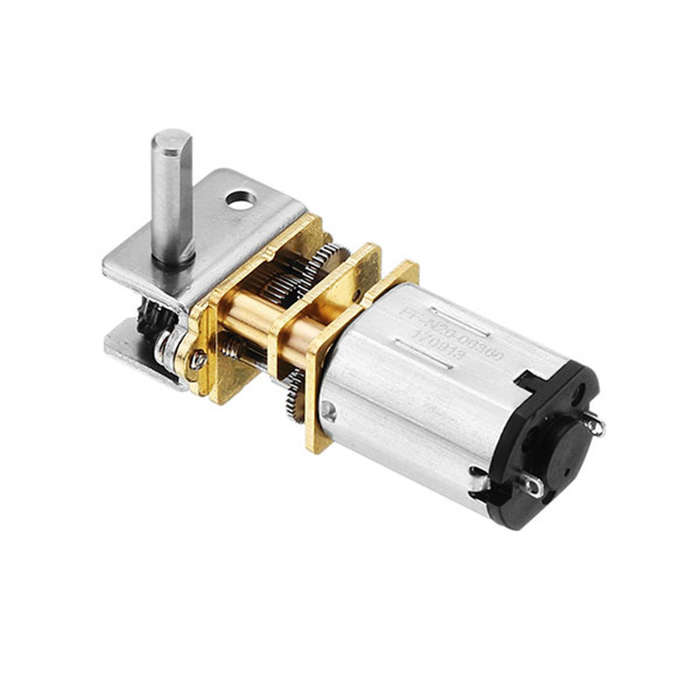

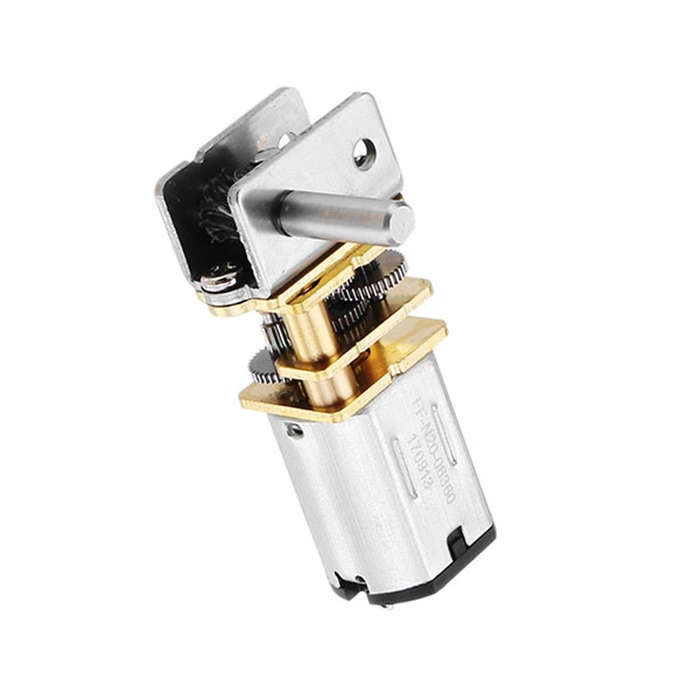

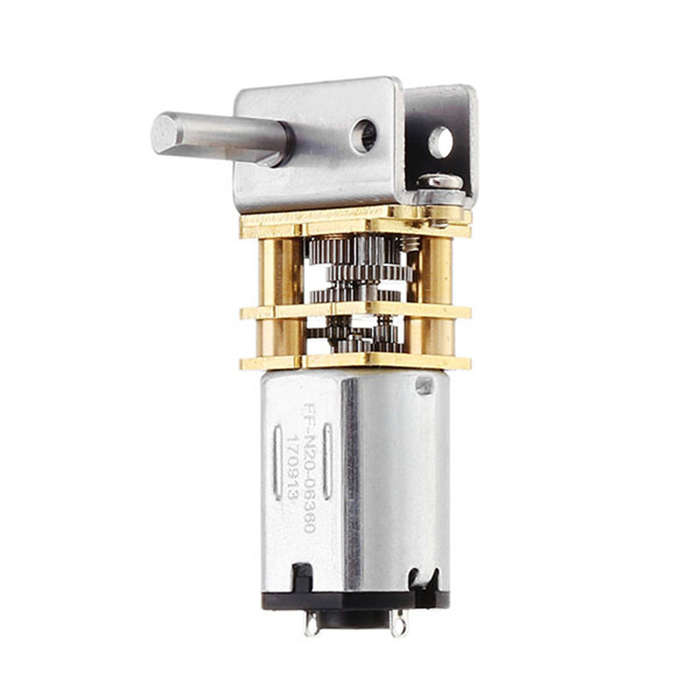

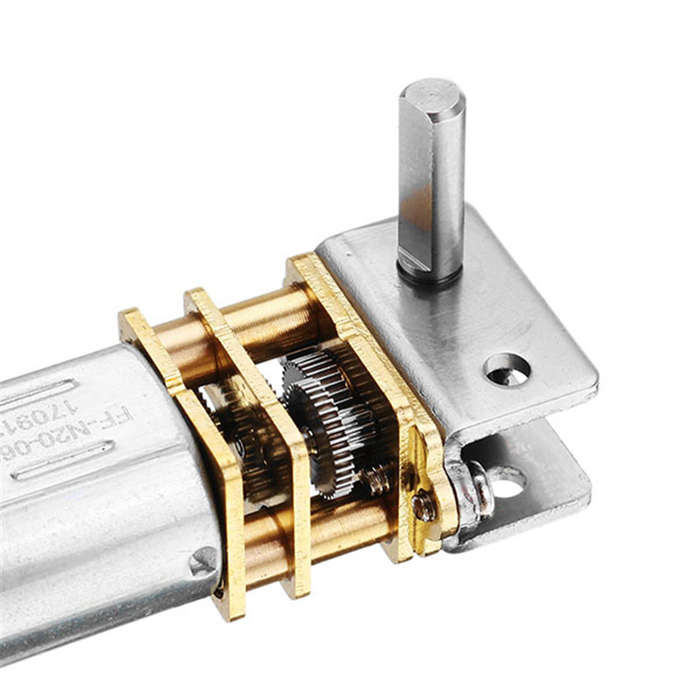

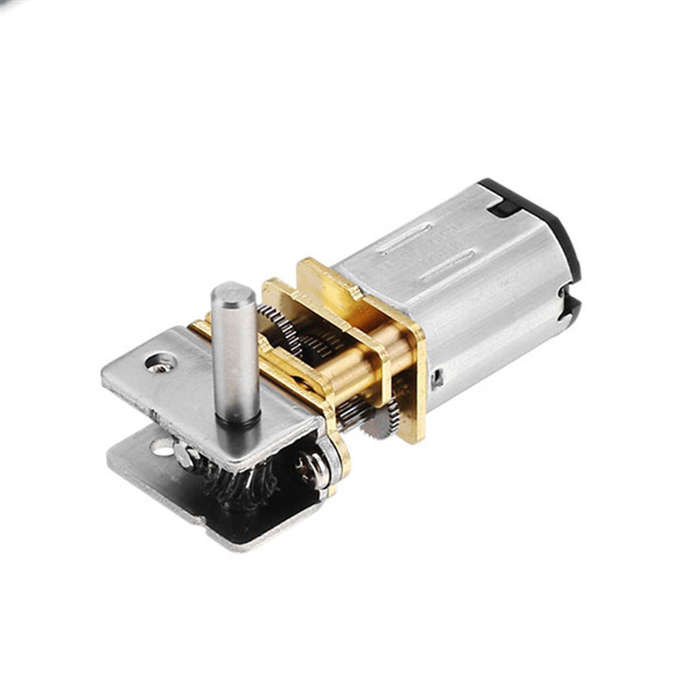

Chihai CHW-GM12-N20VA DC 6V 18rpm Worm Gear Motor Gear Box Worm Reducer Electric Motor

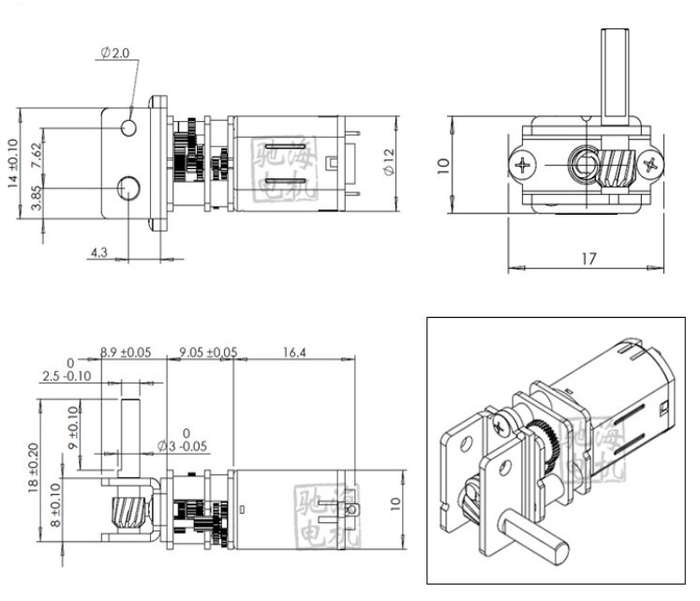

Specification:

Model	CHW-GM12-N20VA
Voltage	DC 6V
Max power	0.6W
Ratio	1:900
No-load current	a 70mA
No-load speed	18rpm
Rated torque	3.0kg.cm
Rated-load speed	12rpm
Rated-load current	a 0.25A
Stall torque	a 4.0kg.cm
Stall current	a 0.65A

Features:
This type is a miniature DC worm gear motor, reversible, variable and self-lock. With self-locking function, the output shaft can't be rotated by certain force when switching off. Gearbox output shaft and motor shaft are 90 degrees, it's widely used in various of occasions that require special install size. According to these characteristics, worm gear motors are widely used in windows and doors opening and household electrical appliances, car model, boat model, robot model, DIY engine, Industry application, house application, home automation, mini winch and other occasions.

Note:
Torsion of motor is too large. Frenquent start-up or blockage of motor is prohibited.
Package Included:
1 x CHW-GM12-N20VA Worm Gear Motor
