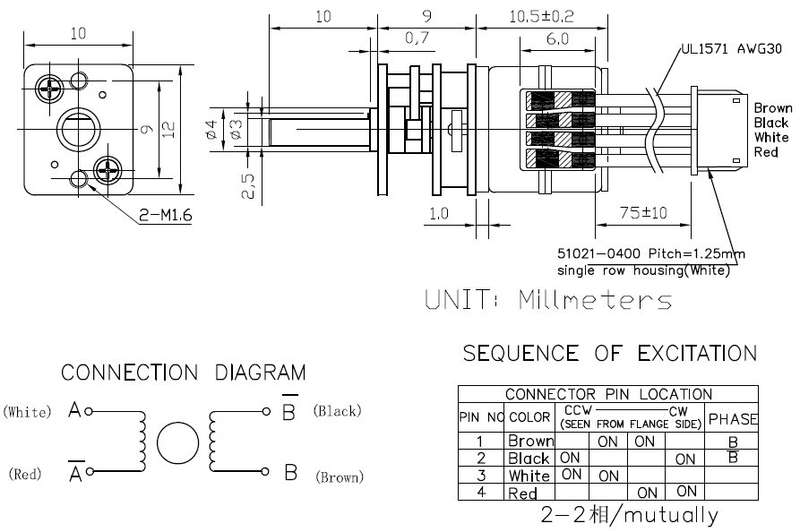

Model | CHS-GM12-10BY |
Voltage | DC 5V |
Reduction ratio | 1:100 |
Phase | 2 phase 4 wire |
Step angle | 0.18ᆪ |
128mA/phase | |
Phase resistance | 39±7%ohm/phase |
Phase inductance | 14.3mH/phase |
Holding torque(kgf.cm) | 1.20 |
Pull out torque | 0.30 |
Max starting frequency | More than 1200pps |
Response frequency | More than 900pps |
