Description:

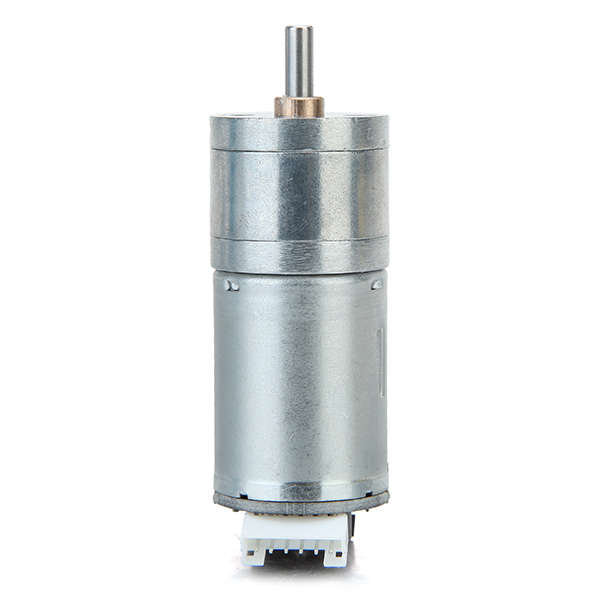

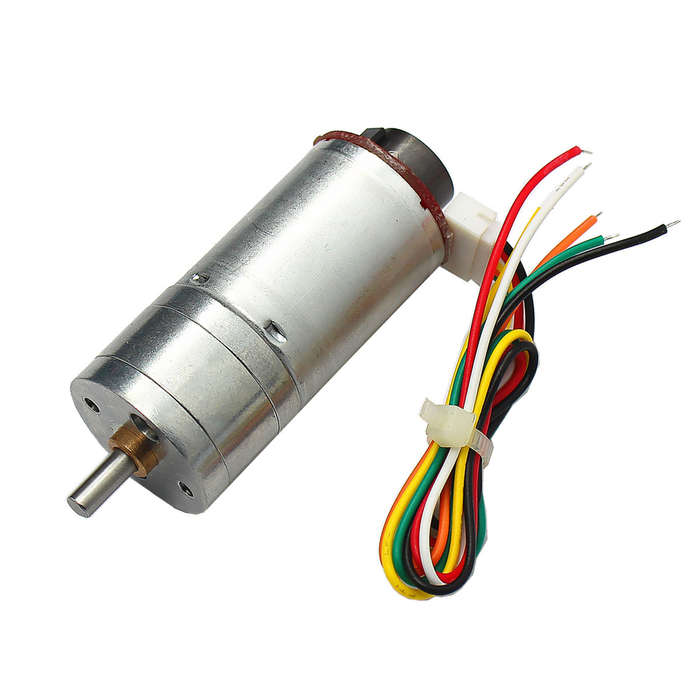

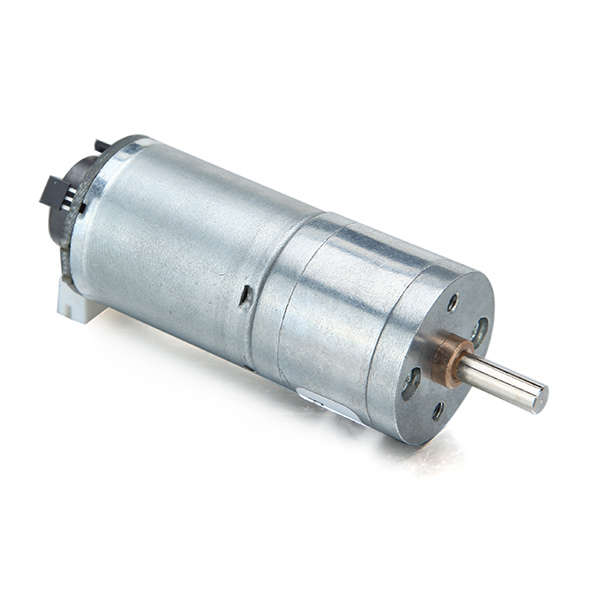

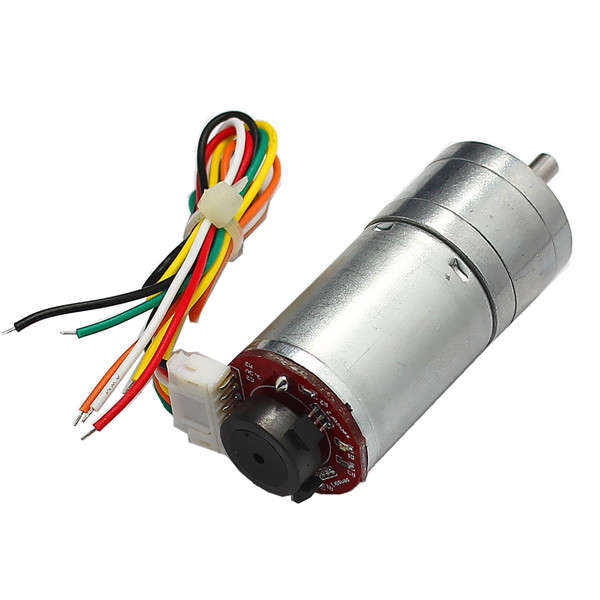

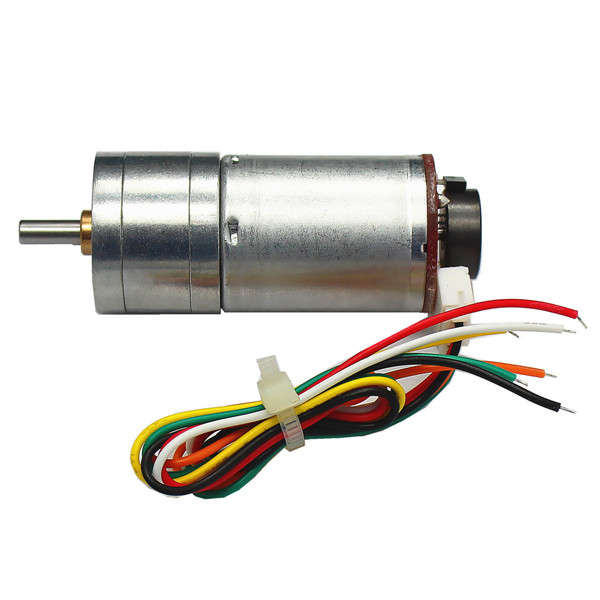

CHIHAI MOTOR?6V 100/210/300RPM Encoder Motor DC Gear Motor

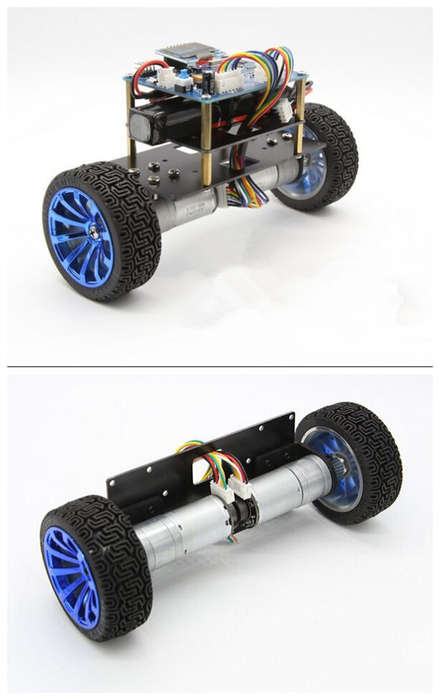

Fixed Support Mounting Bracket for This Encoder Motor:?

Specification:
Brand:??CHIHAI MOTOR
Model:? ?GM25-370
Voltage: DC 6.0V
Speed:?100/210/300RPM?
Shaft diameter: 4mm?
Length: 12mm

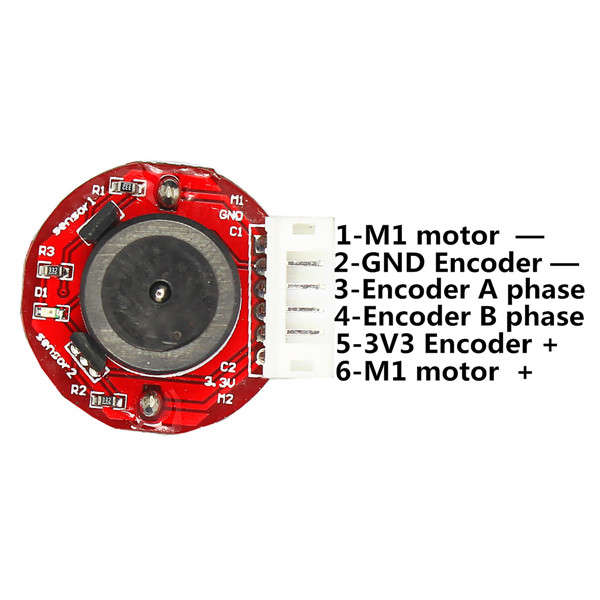

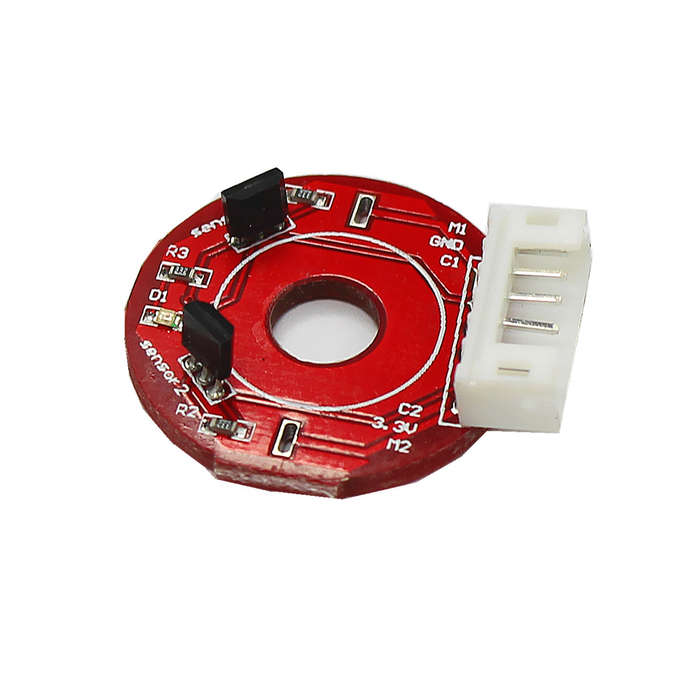

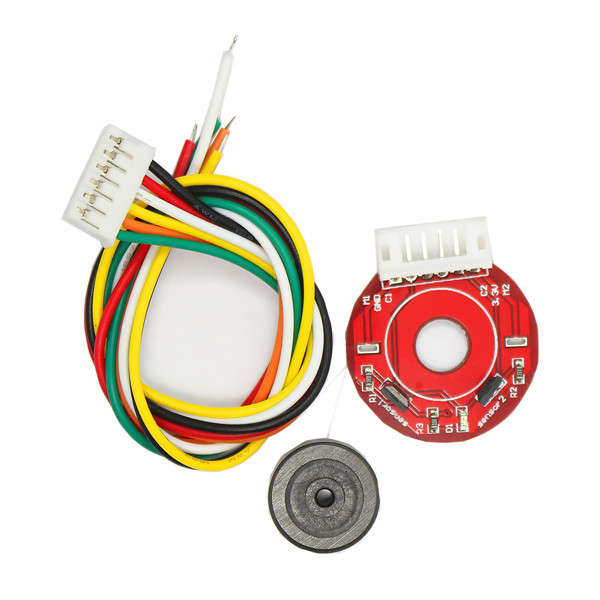

Encoder motor end 11 signals
Terminal connection length 20cm

Rated?Voltage DC 6V DC 6V DC 6V
No-load Speed 100RPM 0.13A 210RPM 0.13A 300RPM 0.1A
Max Efficiency 1.0kg.cm/80rpm/1.7W/0.5A 2.0kg.cm/170rpm/2.0W/0.60A 0.7kg.cm/245rpm/1.2W/0.4A
Max Power? 3.0kg.cm/55rpm/2.8W/1.0A 5.2kg.cm/110rpm/3.1W/1.10A 1.8kg.cm/160rpm/2W/0.8A
Stall Torque 6.5kg.cm 3.0A 10kg.cm 3.2A 3.6kg.cm 2.7A
Retarder Reduction Ratio 1 : 75 1 :34 1 : 20
Hall Resolution 11 x Ratio 74.83 = 823.1PPR Hall x Ratio 34.02 = 341.2PPR 11 x Ratio 20.4 = 224.4PPR

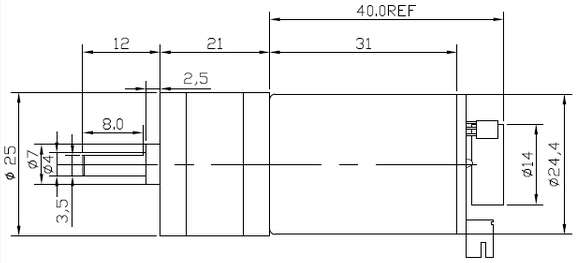

Outline Drawing:



Note:
Please note that the package includes one motor only.
100/210/300RPM is available.

Package Included:
1 x Encoder Motor

More Details:


, , , , , , , , ,
