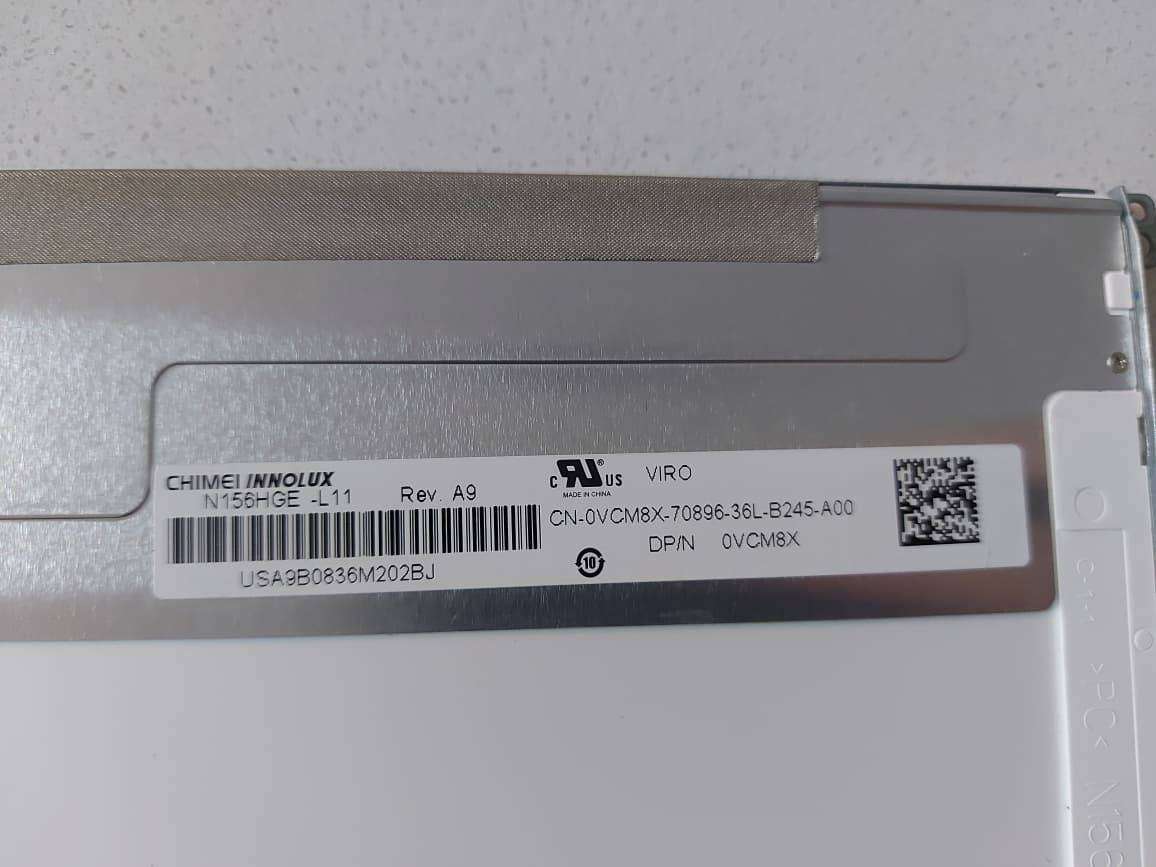

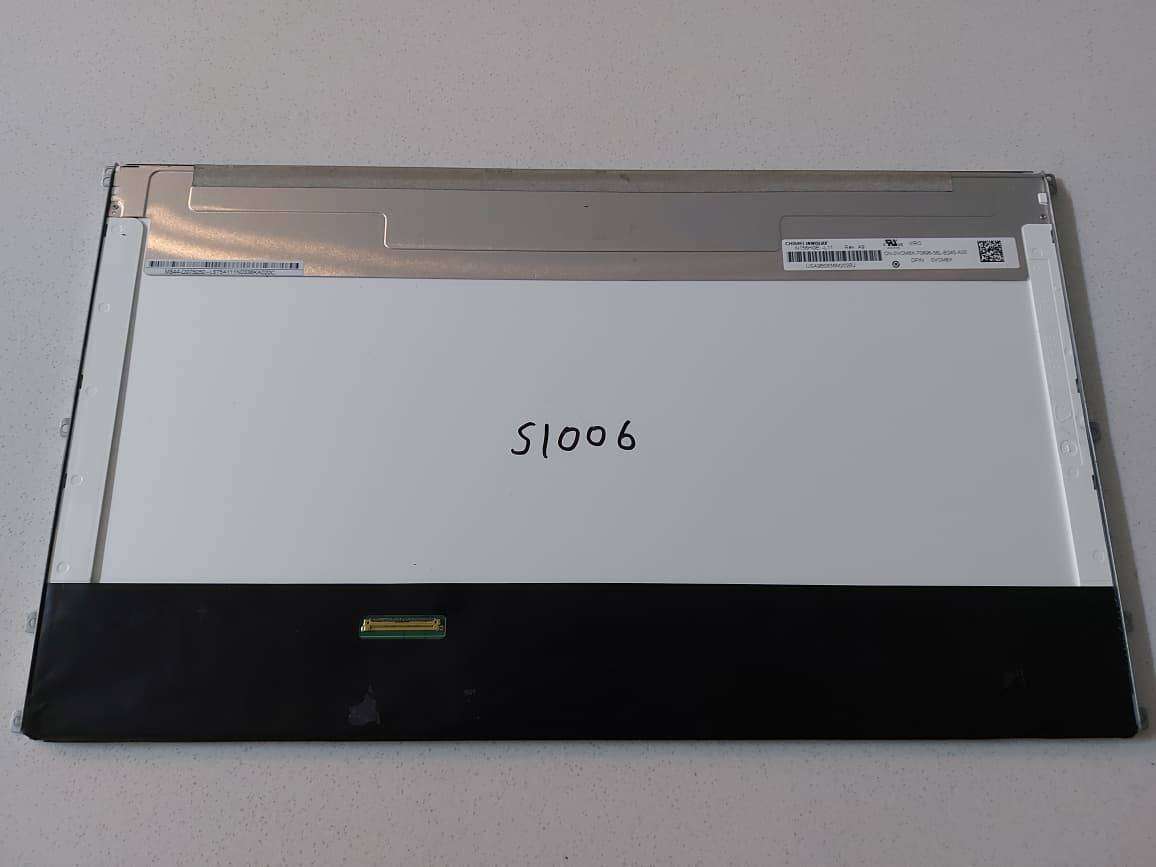

Chimei Innolux N156HGE-L11 panel:
Brand & Model: Chimei Innolux N156HGE-L11
Size & Resolution: 15.6, FHD (1920×1080), 141 PPI
Panel Type: TN, Normally White, Transmissive, a-Si TFT-LCD
Brightness: 300 cd/m² (typical)
Contrast Ratio: 600:1 (typical)
Viewing Angles: 70°/70°/60°/60° (L/R/U/D), best at 6 oclock
Response Time: 3/8 ms (Tr/Td)
Surface: Anti-glare, 3H hard coating
Color: 262K (~60% NTSC)
Backlight: 6-string WLED, ~15,000 hours with LED driver

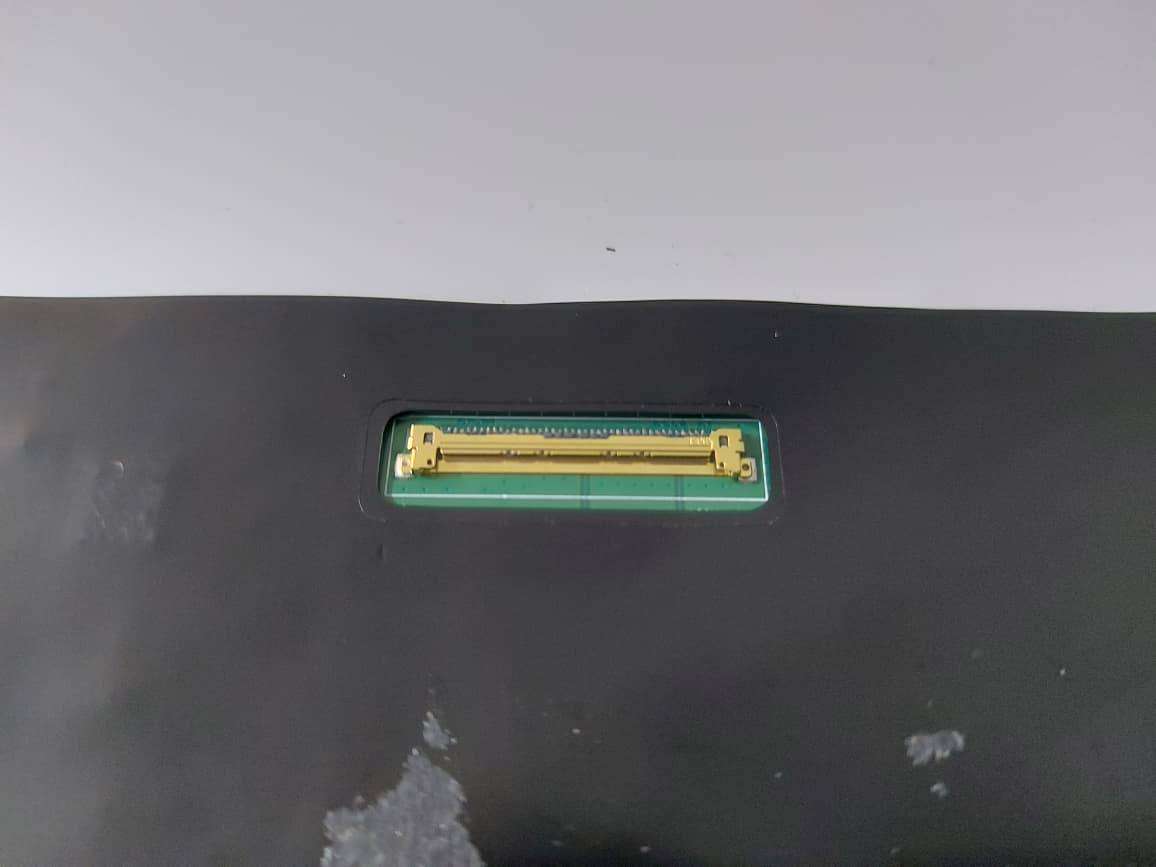

Interface: LVDS, 2-channel, 6-bit, 40-pin connector
Voltage Supply: 3.3V typical
Touchscreen: No
Application: Laptop
Refresh Rate: 60Hz (supports MEMC up to 240Hz input)
Form Factor: Wedge (PCBA bent, T 5.2mm)
Operating Temperature: 050°C
Storage Temperature: -2060°C
Chimei Innolux N156HGE-L11 compatible models:
B156HTN01.0
B156HTN01.1
B156HW01 V0
B156HW01 V1
B156HW01 V2
B156HW01 V3
B156HW01 V4
B156HW01 V5
B156HW01 V7
B156HW02 V0
B156HW02 V1
B156HW02 V3
B156HW02 V5
LP156WF1-TLA1
LP156WF1-TLB1
LP156WF1-TLB2
LP156WF1-TLC1
LP156WF1-TLF3
LP156WFC-TLB1
LTN156HT01-201
N156HGE-L11
