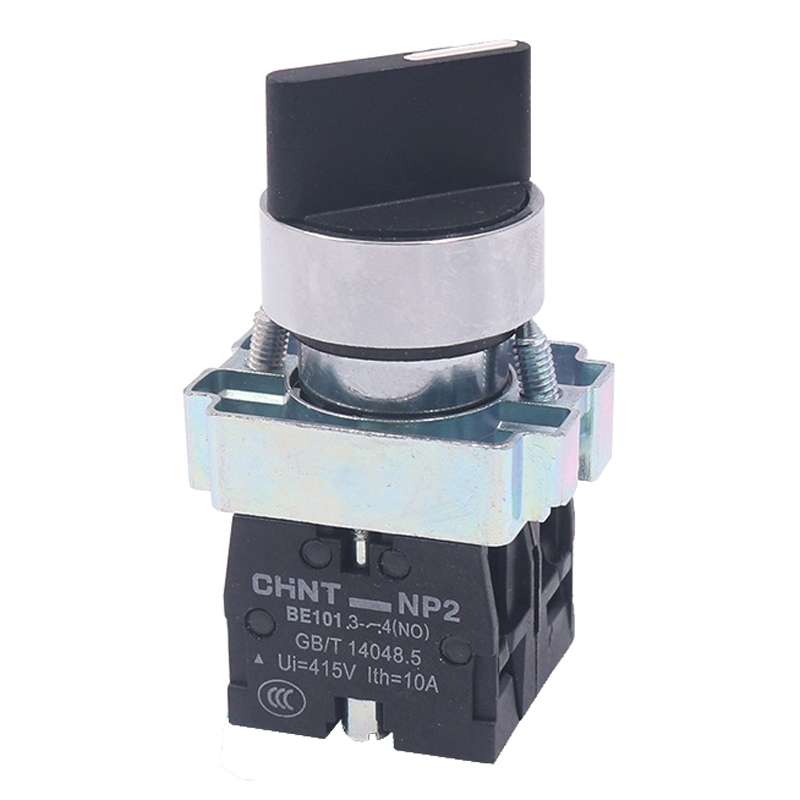

CHINT NP2-BD23 2 Gear Self-locking 2NO Power Transfer Switch Short Handle Master Knob 22mm

1. Shell material: ABS
2. Contact material: copper silver-plated
3. Electrical life: 100,000 times
4. Mechanical life: 100,000 times
5. Connection method: screw link
6. Protection grade: IP20
7. Product series: NP2 series
8. Current: 10A
9. Rated voltage: below 220V
10. Gear position: 2 gears, 3 gears
11. Application: electrical products, machine tool equipment, industrial equipment
12. Selected ABS plastic shell, insulation and fire prevention, to eliminate the use of electricity hidden danger, 2 gears / 3 gears conversion button, beautiful and practical
13. The bottom of the building block structure, silver contacts, bearing high current, good conductivity, long service life
14. Easy to dismantle and install, protect electricity, contacts can be replaced, 2 normally open / 1 normally open / 1 open 1 closed, change at will, improve work efficiency
15. Weight: about 81 g
16. Size: about 6.85 x 2.9 x 3 cm, the inside diameter of the opening is about 2.2 cm
