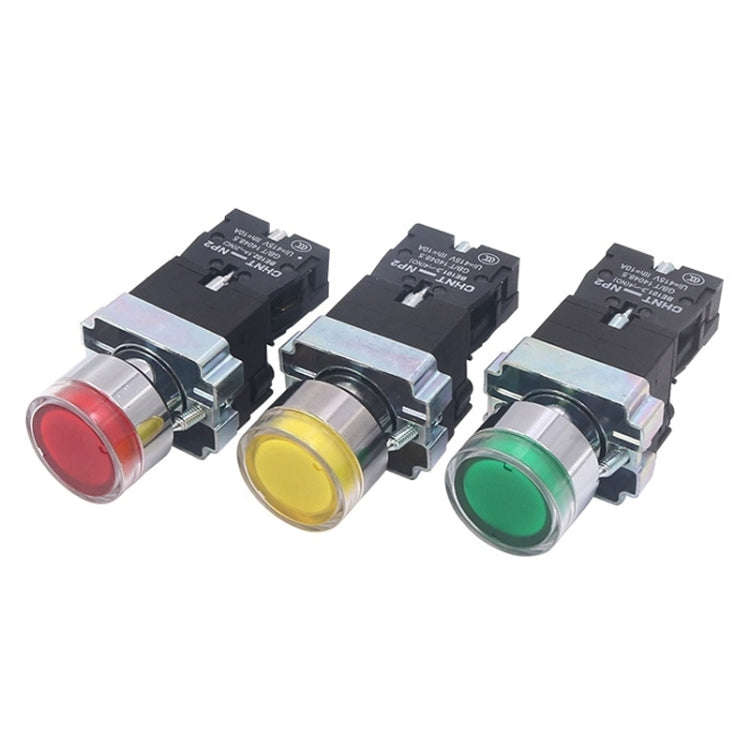

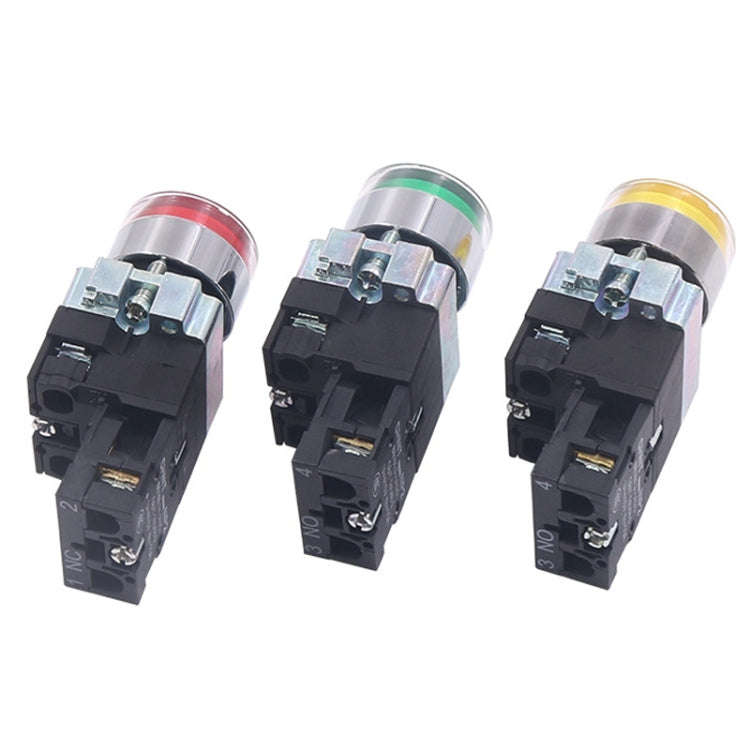

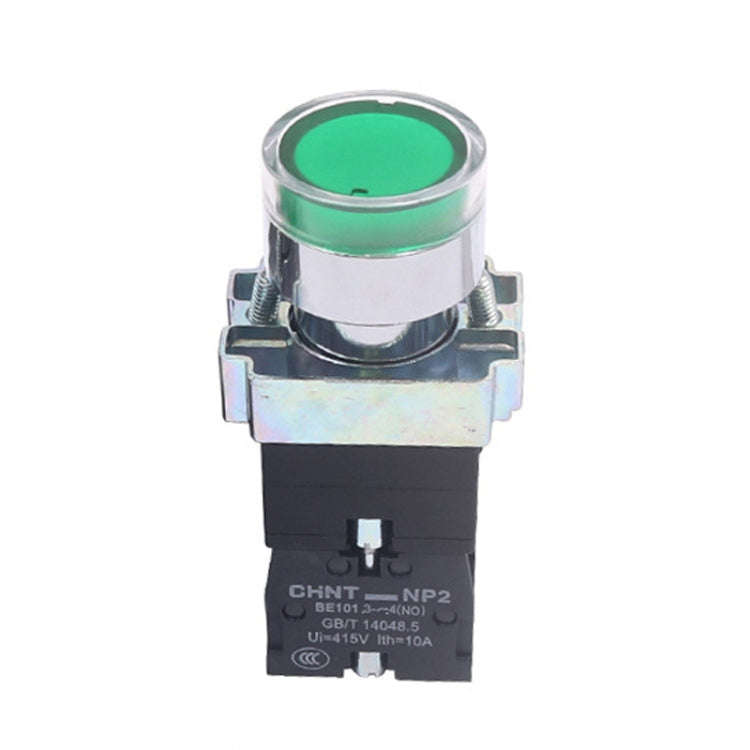

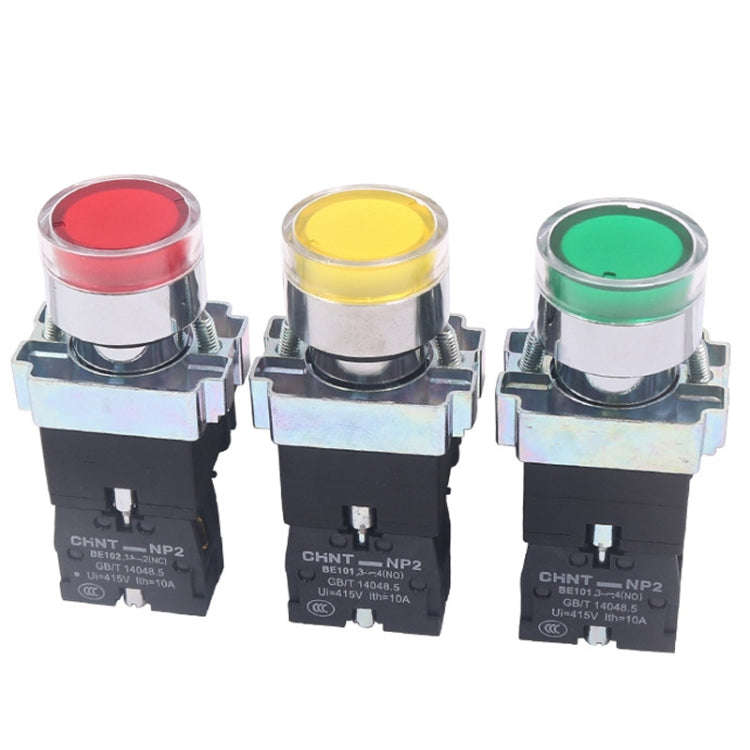

CHINT NP2-BW3365/220V 1 NO+1 NC Pushbutton Switches With LED Light Silver Alloy Contact Push Butt...

1. Shell material: plastic + metal
2. Contact material: silver alloy
3. Voltage: 10A
4. 3C rated voltage range: 3-220V
5. Connecting method: screw/terminal post
6. Protection function: flame retardant insulation
7. Electrical life: about 500,000 times
8. Mechanical life: about 200,000 times
9. Operating temperature: -5-40 degrees Celsius
10. Application: electrical products, machine tools, industrial equipment

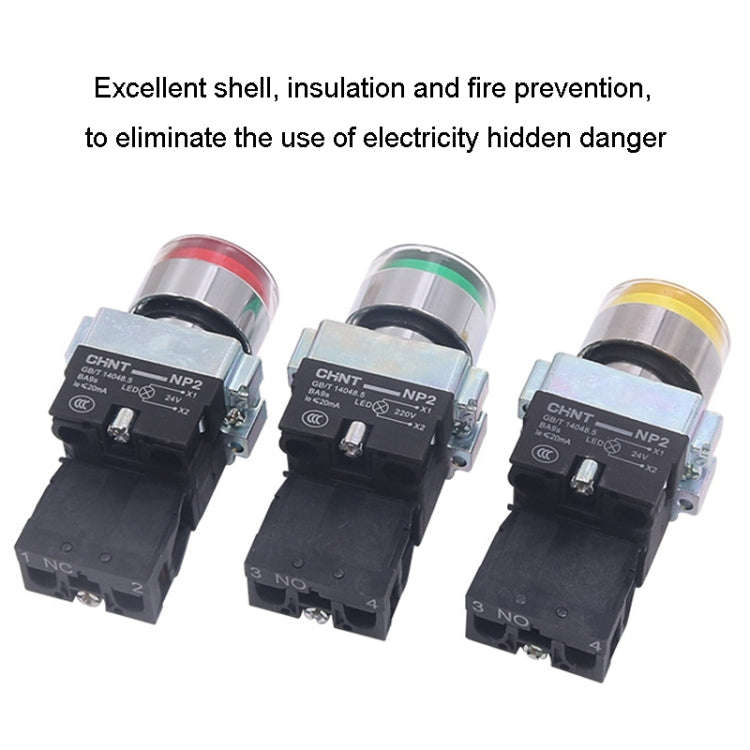

11. Selected plastic shell, insulation and fire prevention, to eliminate the potential danger of electricity, the bottom of the building block structure of silver contacts, bearing high current, good conductivity, beautiful and practical, three colors to choose from

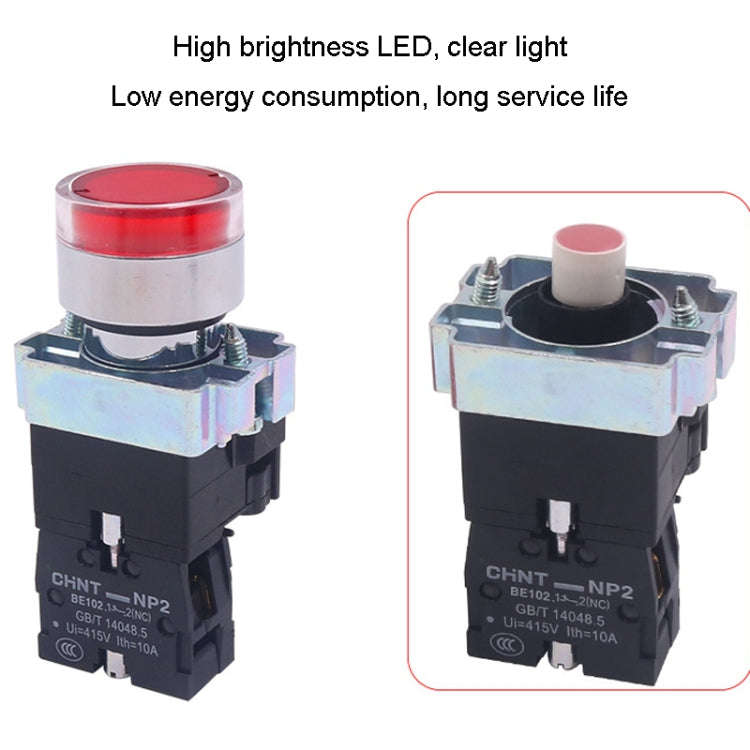

12. NP2 series pushbutton switch with light, with high brightness LED light, clear light, low energy consumption, long service life, improve the efficiency of the work

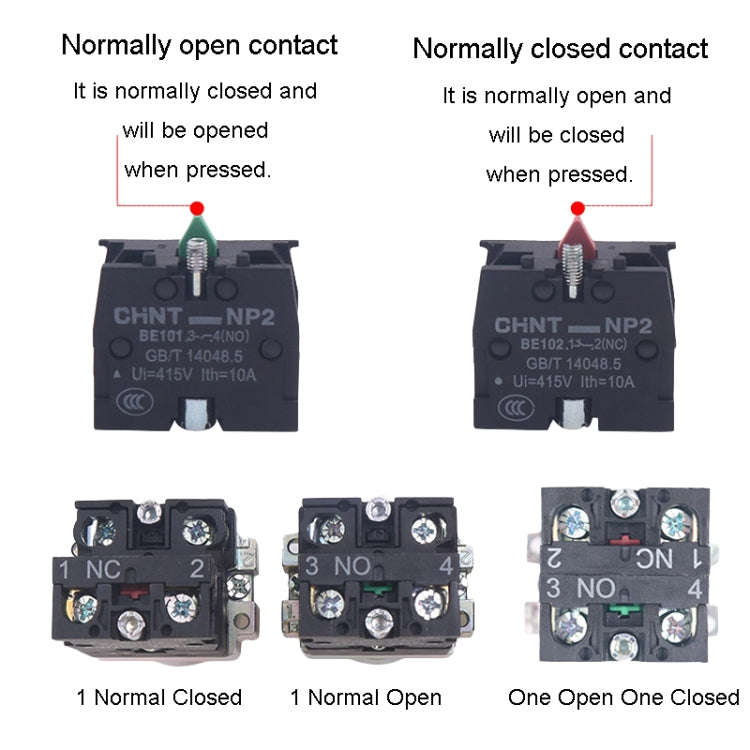

13. Simple disassembly and installation operation, contacts can be replaced, 1 normally open / 1 normally closed at will, to protect the electricity consumption
14. Weight: about 83 g

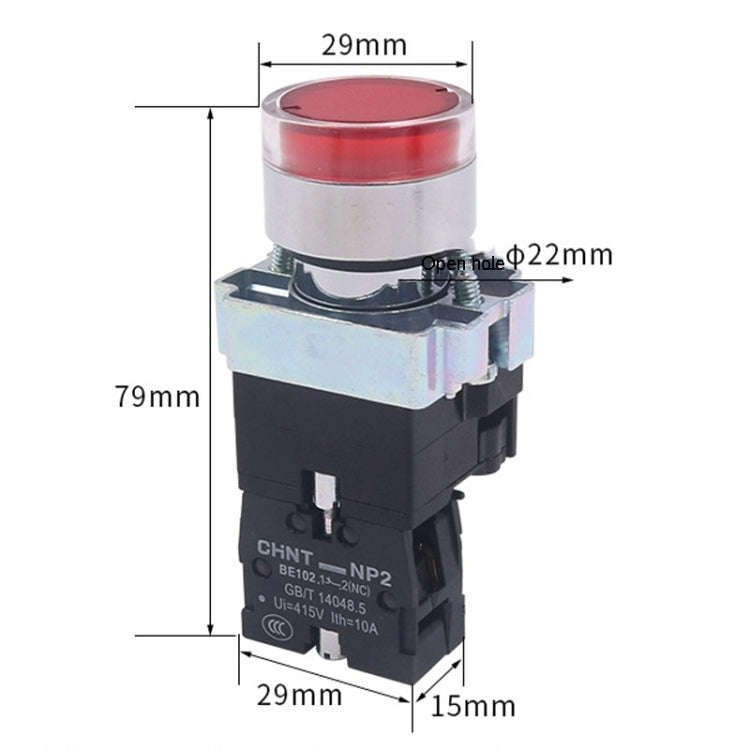

15. Size: about 7.9 x 2.9 x 1.5 cm, the inside diameter of the opening is about 2.2 cm
