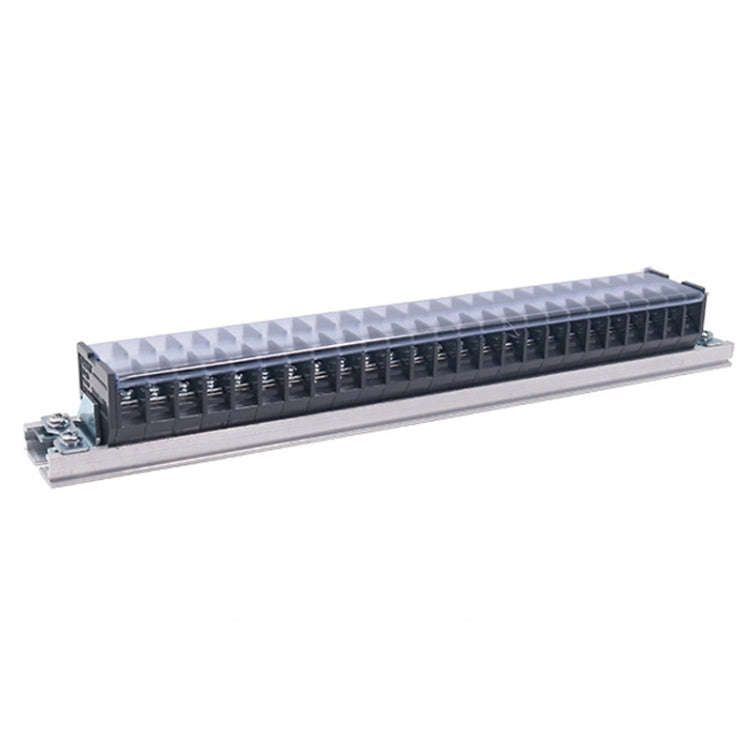

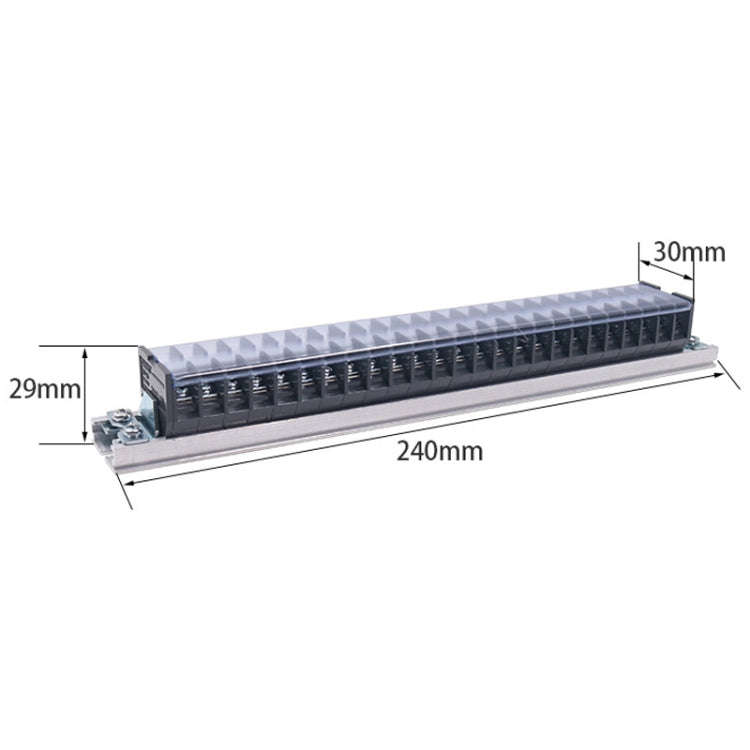

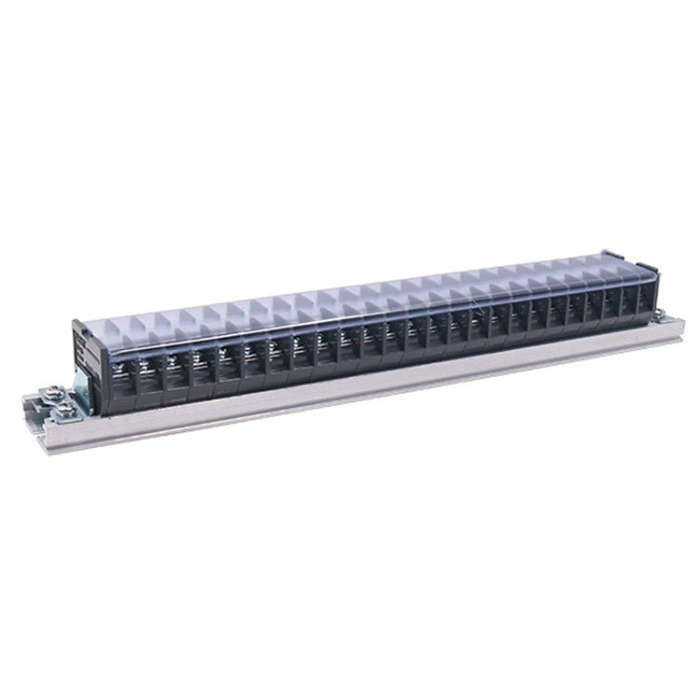

CHINT TD-1525 Terminal Block Rail Type Wiring Block Paralleling Wires Wire Connector

10 available / new
R268.91
Want to pay less?
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
International
Product code
TBD0604267304
Bob Shop ID
636225039

1. TD series terminal block, the shell is not fragile, screws do not slip teeth, thickened copper, strong electrical conductivity
2. Insulated shell, shell surface smooth, corrosion resistance, strong insulation, wiring screws do not slip, good quality
3. Aluminum rail, aluminum rail installation, lightweight and solid, not rusty
4. Transparent panel, transparent protective cover, can prevent dust and corrosion, protect wire connectors
5. Scope of application: TD series is suitable for AC 50Hz or 60Hz, rated voltage up to 660V, rated current up to 200A power and control circuits, between the wires for connection purposes
6. This series of terminal block adopts screw crimp connection, the end of the wire must be crimped TU-type or TO-type end before connecting with the terminal block, the terminal block has a protective cover, and is installed by C-type mounting rail
7. Conformity standards: GB/T14048.7, IEC60947-7-1
8. Current: TD1510-TD1550: 15A, TD2010-TD2020: 20A, TD3010-TD3020: 30A, TD6005-TD6010: 60A, TD10010: 100A
9. Screws: TD1510-TD1550: M3, TD2010-TD2020: M4, TD3010-TD3020: M5, TD6005-TD6010: M5, TD10010: M5
10. Wire section: TD1510-TD1550: 0.75-1.5mm, TD2010-TD2020: 1-2.5mm, TD3010-TD3020: 1-6mm, TD6005-TD6010: 4-10mm, TD10010: 6-25mm
