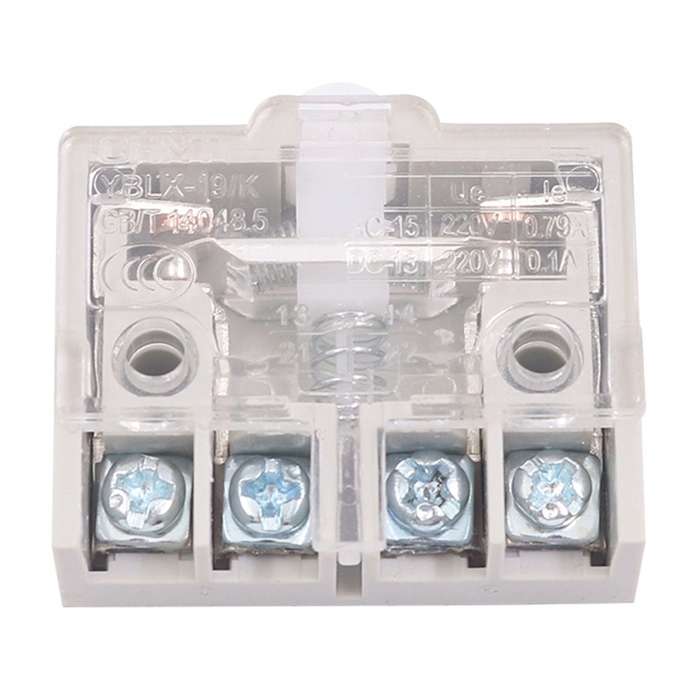

CHINT YBLX-19/K Foot Switch Inserts Self-Resetting Micro Travel Switches Accessories Miniature Limiters

1. Shell material: metal plastic
2. Contact material: silver contacts
3. Wiring: screw wiring
4. Protection function: direct lead
5. Reset force: more than 3.4N
6. Operating temperature: -5-40 degrees Celsius
7. Repeatability: less than 0.1 mm
8. Protection class: IP52
9. Current: AC0.79A DC0.1A
10. Voltage: AC380V DC220V
11. Travel switch core, silver contacts, rigorous production, wear-resistant and durable, 1 normally open / normally closed
12. Dustproof protective cover design, waterproof and dustproof structure, longer use time

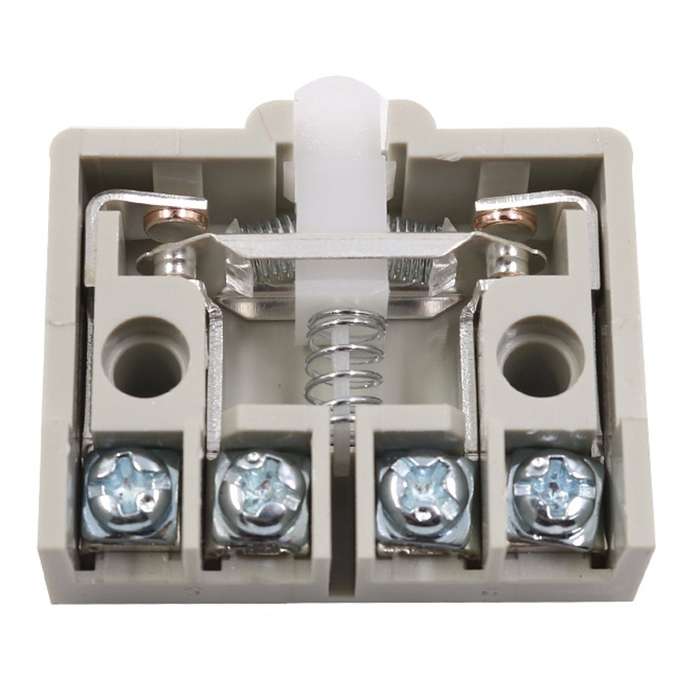

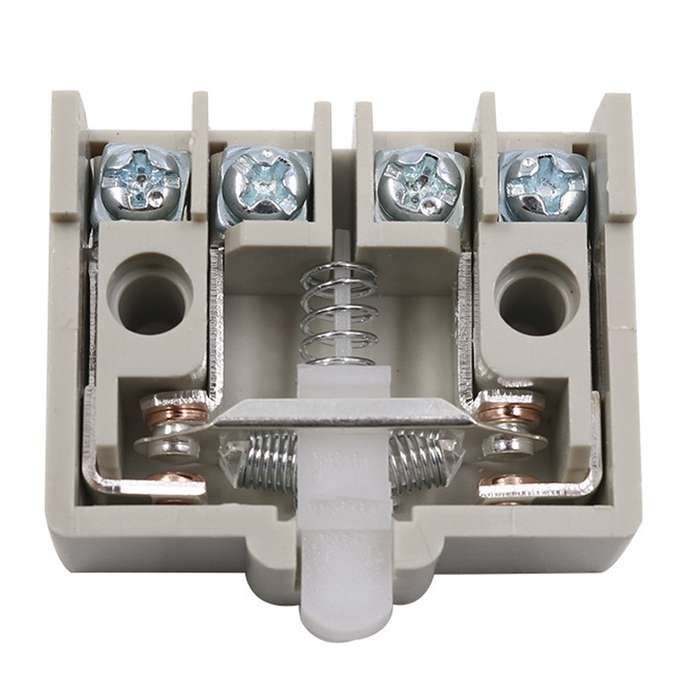

13. Spring structure design, the use of high-efficiency spring structure, for the larger over-travel has a good buffer
14. Application: Applicable to YBLX-EKW/5A/B foot switches and YBLX-19 series travel switches
15. Weight: about 17.7 g

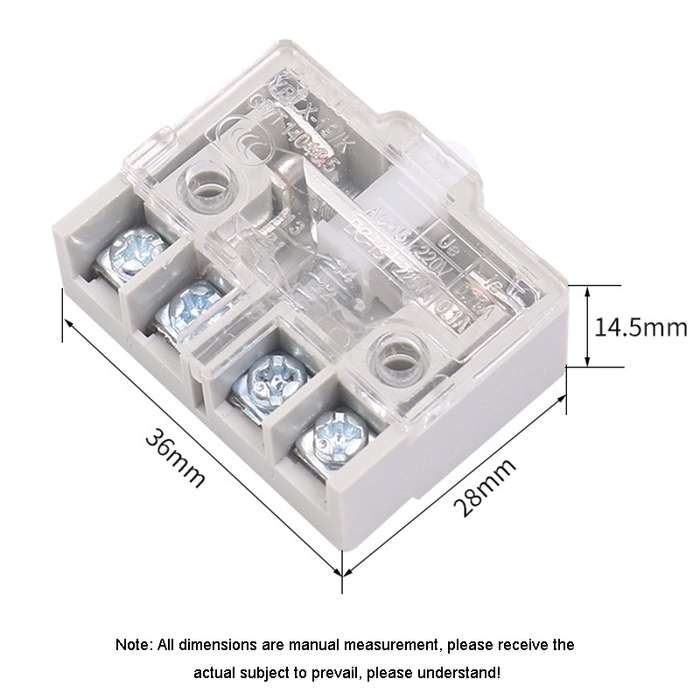

16. Size: about 3.6 x 2.8 x 1.45 cm
