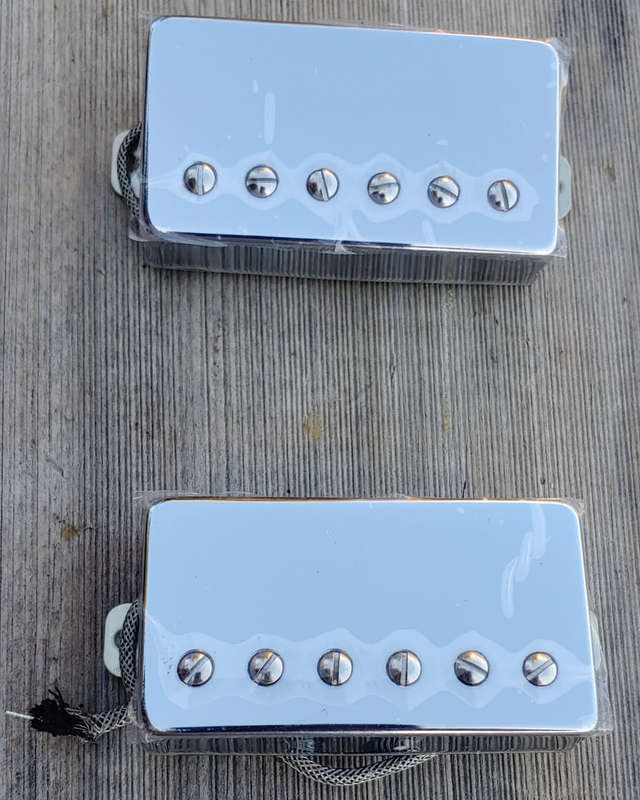

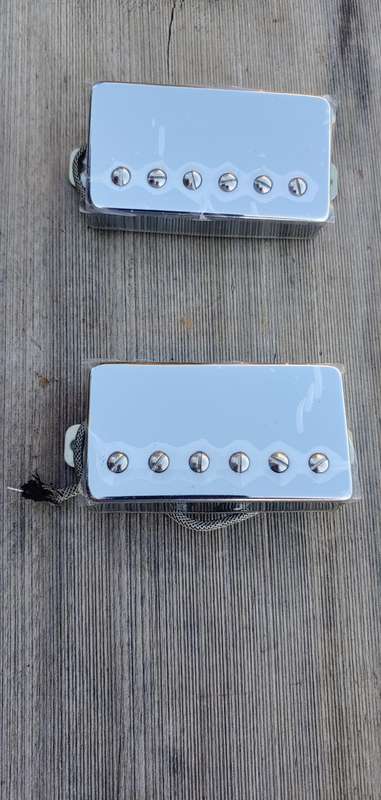

Karman Alnico 5 humbucker pickups are great for most genres of music from pop to rock, do not let the price fool you, these pickups are great! The reason why they are so affordable is that we at Valley Sound import pickups in bulk according to our exact specifications direct from the manufacturer, cutting out a lot of middlemen, agents, wholesalers, etc., and supplying these direct to the consumer at an affordable price. The bridge pickup is much hotter than the neck, allowing you to drive your amp a bit more with the flip of the selector switch.
Available in either vintage braided output wire or 4 cord wire. The 4 cord wires allow you to coil split the pickup into a single coil by grounding the red and white wires via a push pull pot or a toggle switch. If you do not wish to coil split then just ignore the red and white wires (we recommend putting a piece of tape around them) and connect the BLACK wire to your switch/volume and the GREEN wire to ground. The bare wire must go to ground with the green since this will act as shielding around the 4 other wires.
Model Number | LPA5 |
Base and Cover Material | Base: Nickel Cover: Chrome plated brass |
String spacing | Neck 50mm Bridge 52mm |
Pole Style | Chrome plated adjustable screws |
Magnet material | Alnico 5 |
Output | N: 7.4K 3.5H (Inductance) B: 14.9K 7H (Inductance) |

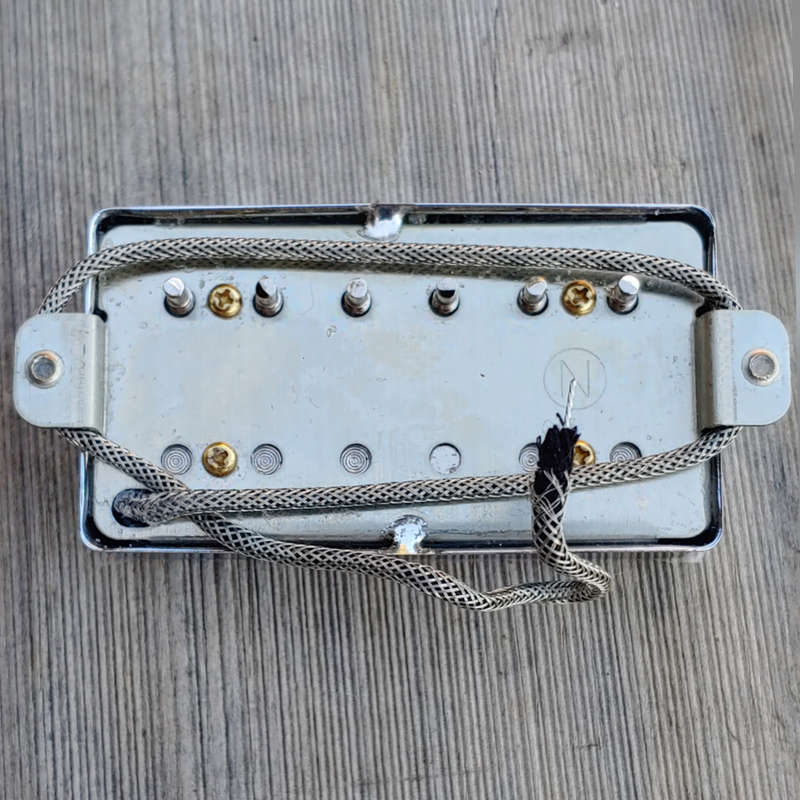

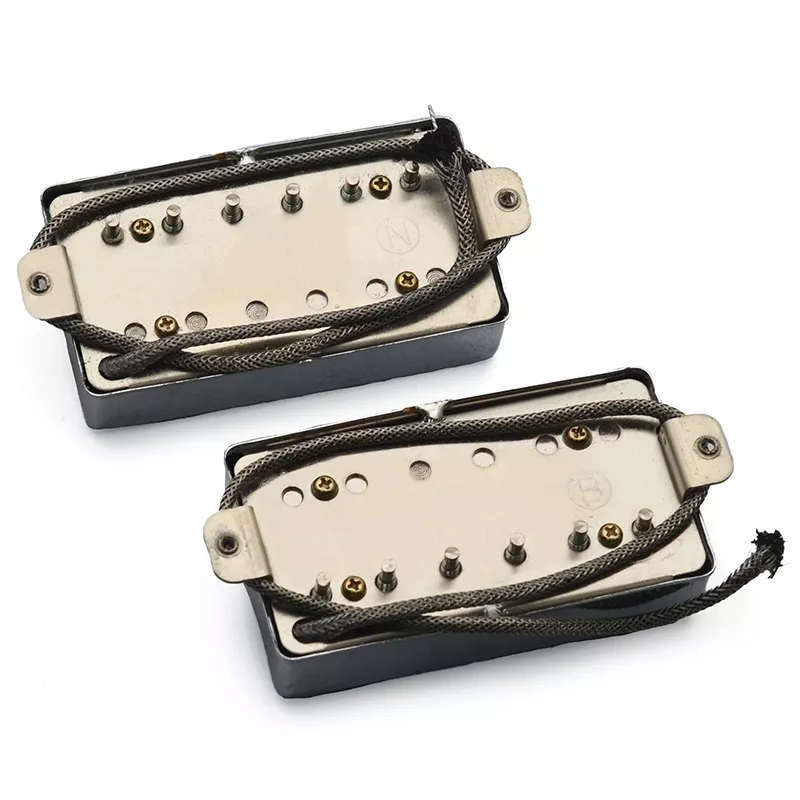

Output wire | 1 Cord Braided Shield Wire Outer shield is ground, inside wire is hot OR 4 Cord ABS wiring with Coil Splitting abilities. |
Inside bobbin Material | ABS Plastic |
Colour | Chrome |
Includes | 1 x Pickup, 2 x springs, 2 x 2.5mm screws |
