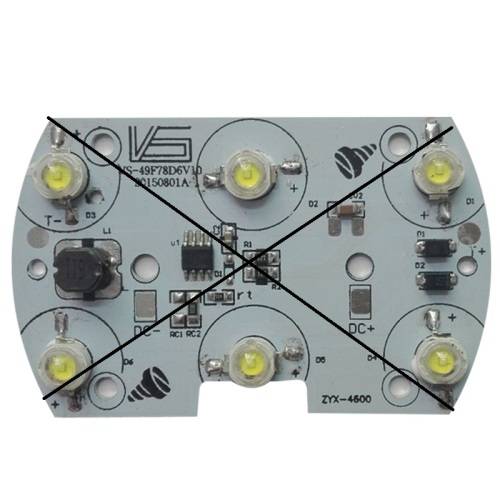

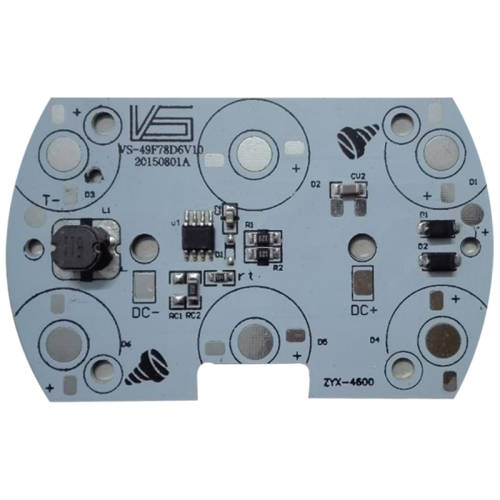

Circuit Board Aluminium for 3W Led DIY:
Specifications:
Input Voltage: 12V DC
Output Current: 600mA
Wattage: 18W
Size: 75 x 50mm
Number of Leds: 6pcs x 3W Led
Dimmable: Yes
* THIS BOARD IS NOT SUPPLIED WITH LEDS
Tested: If you turn the input voltage down from 12V to 10.4V, the unit runs at 300mA (1W power)
Recommended Heatsink: 94 x 10mm
Recommended Power Supply: 12V 1.5Amp minimum per Circuit Board
The brightness can be regulated by adjusting the input voltage with a dimmer

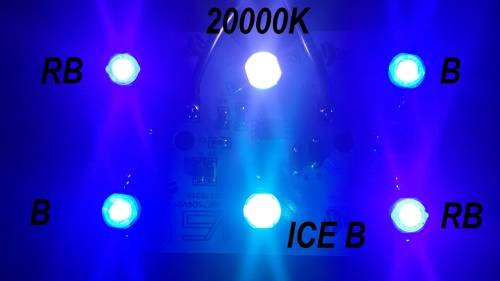

Example for Aquarium
