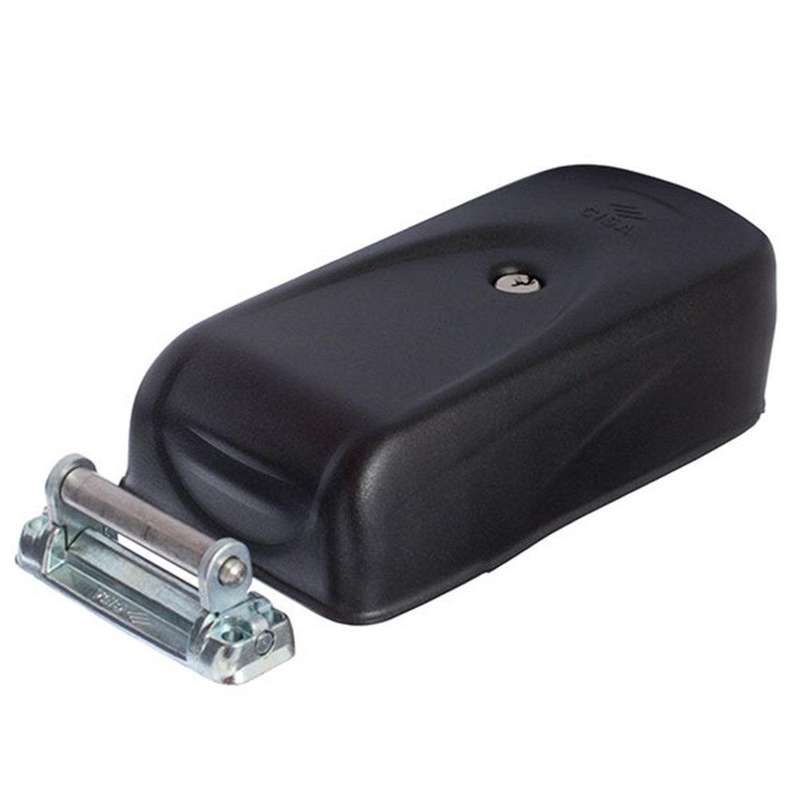

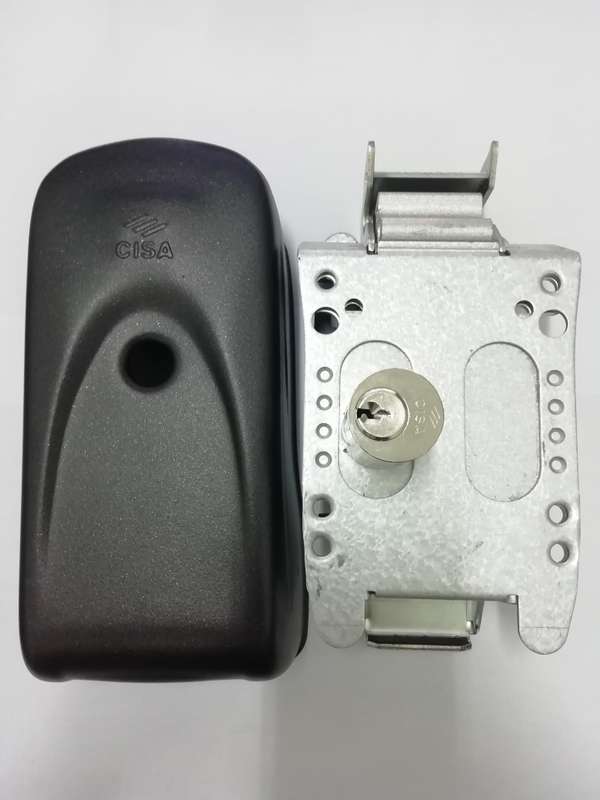

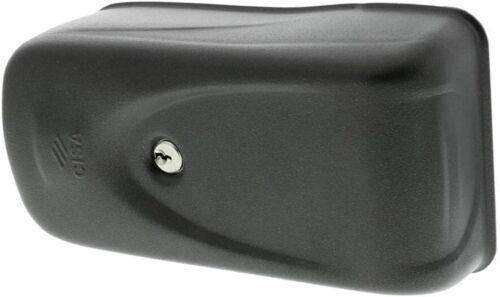

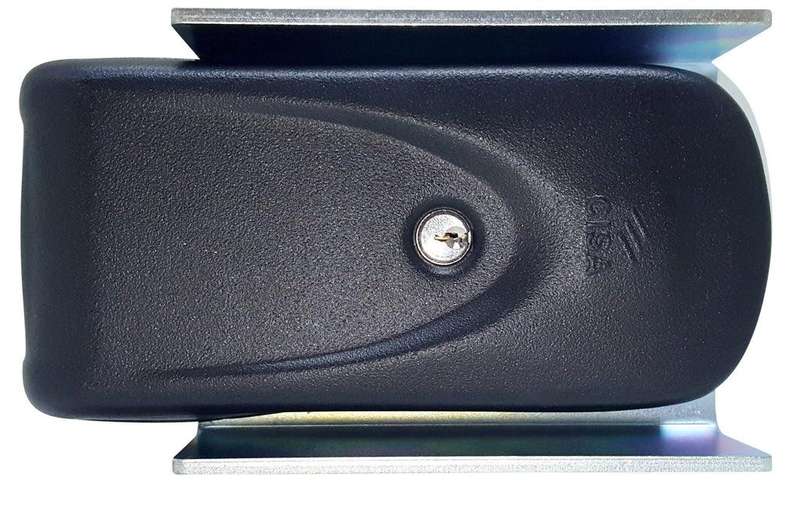

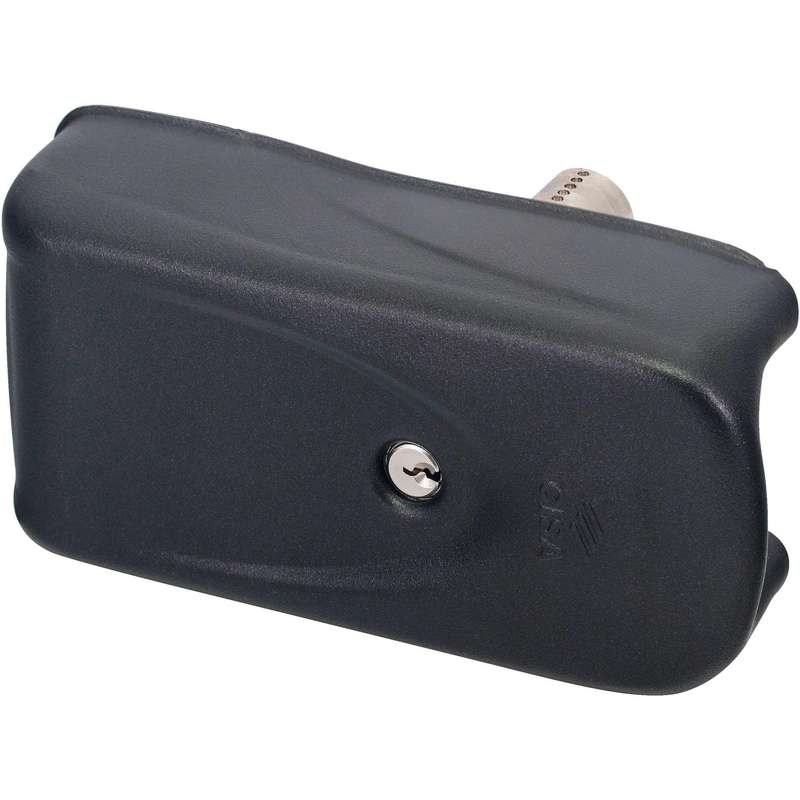

The CISA "Elettrika" electric lock is the ideal solution for managing the opening and closing of steel and wooden gates and entrance doors (apartment buildings), while still guaranteeing high resistance to forced entry.
Protection against forced entry.
Certified up to Security Grade 6 according to European standard EN 14846, guaranteed by the rotary hook deadbolt (patented) which provides resistance to the tensile strength of up to 2000 kg (the standard covers a maximum of 1000 kg).
Protective steel casing to make it difficult to access the internal lock parts when the door/gate is closed.
Closes automatically.
With the Booster Plus module and when in "timing of opening command function" mode, the pedestrian gate/entrance door automatically closes when nobody enters within a space of time established by the user.
Door status always under control.
The Booster Plus module has an indicator (which may be installed in the home if desired) which lights up every time the door/gate is not securely closed (door status signal).
Silent opening.
The reloading system guarantees silent operation as the lock is being opened, more than traditional electric locks.
Immediate, guaranteed closing over time.
The rotary hook deadbolt ensures immediate engagement of the floor striker, limiting rebound.
A self-adjustable floor striker helps correct any slight change in position of the door/gate which may occur over the years, ensuring the lock continues to work properly over time.
OTHER FEATURES
Managing flow through accesses.
The "Hold open" function which prevents the entrance door/gate from closing, available in two versions:
Electric: the Booster Plus module keeps the door/gate open at all times until the function is deactivated (from the home).
Mechanical: the button on the lock (fitted on certain models) can be blocked by the key, leaving the door/gate always open until it is released.
Should the remote control malfunction, the driveway gate can still be opened:
thanks to the microswitch, the automatic gate can be opened manually (with keys) and directly from the lock without having to install a second lock.
The lock can always be opened, even with a drop in voltage.
When voltage is below the minimum rate (12V), the electric lock will always work.
Technical Features
Certified up to Security Grade 6 according to European standard EN 14846, guaranteed by the rotary hook deadbolt (patented) which provides resistance to the tensile strength of up to 2000 kg (the standard covers a maximum of 1000 kg). Protective steel casing to make it difficult to access the internal lock parts when the door/gate is closed. The reloading system guarantees silent operation as the lock is being opened, more than traditional electric locks.
A self-adjustable floor striker helps correct any slight change in position of the door/gate which may occur over the years
The rotary hook deadbolt ensures immediate engagement of the floor striker
The lock is easily interchangeable with other locks on the market as it uses the same holes.
Backset adjustable from 50mm to 80mm
Non-handed lock
12 V ac CE
Current absorption 3A
Reversibility and backset variable from 50 to 80 mm

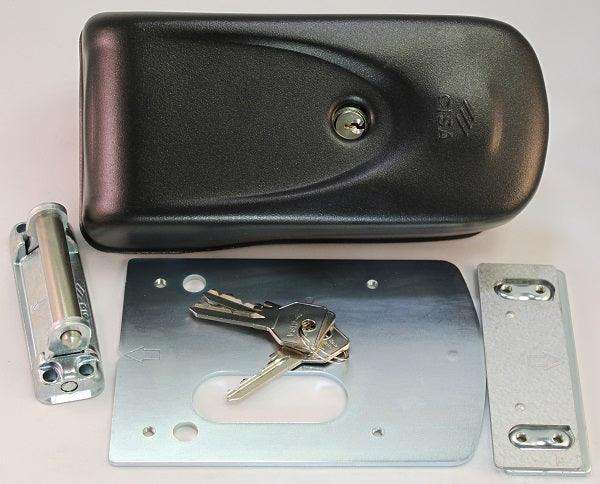

Supplied as Standard

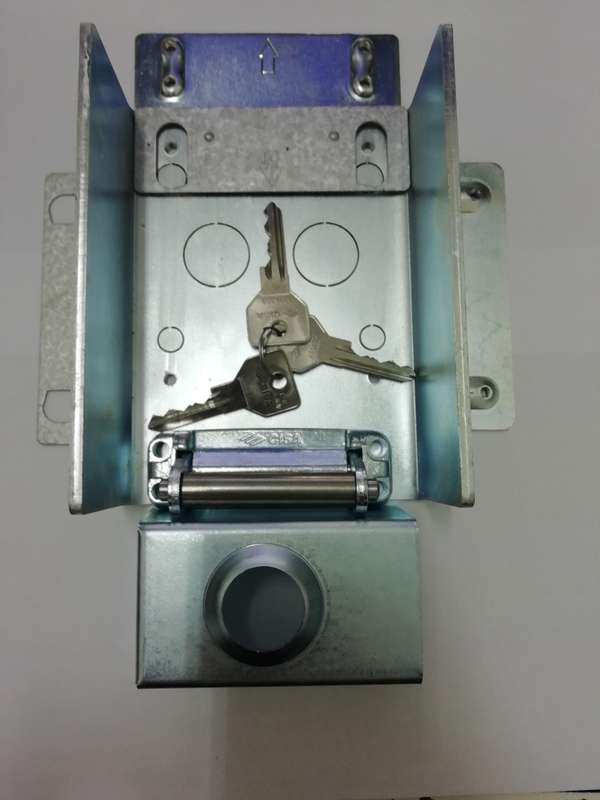

Floor striker
Instruction sheet
Fixing screws
2 spacers for floor striker
3 keys
Operation Modes
The lock can be managed in two ways (hold-open function):
electric: the Booster Plus module (remote controlled) keeps the door/gate open at all times for a pre-established period of time
mechanical: the button on the lock (fitted on certain models) can be blocked by the key, leaving the door/open always open
The Booster Plus module has an indicator that lights up every time the door/gate is not securely closed The Booster Plus module allows you to set the timing of the automatic closing of the lock
The Booster Plus module operates the lock even when voltage is below the minimum rate (12V) The microswitch enables you to open the automatic gate directly from the lock
Standards
ELETTRIKA is certified in compliance with European standard EN 14846:08: grade 6 Security (2,000 kg lateral thrust)
