Cisco 4G/3G Omnidirectional Dipole Antenna (4G-LTE-ANTM-D)
Overview
The 4G-LTE-ANTM-D omnidirectional dipole antenna is designed for indoor use with Cisco 4G and Cisco 3G wireless Integrated Services Routers Generation 2 (ISRs G2) and Enhanced High-Speed WAN Interface Cards (EHWICs).

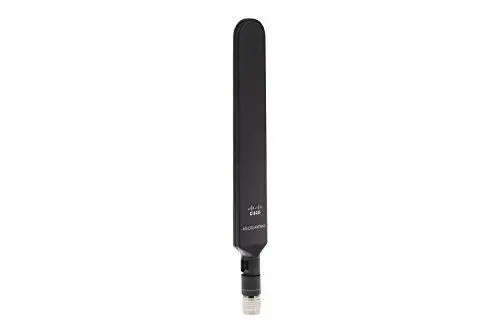

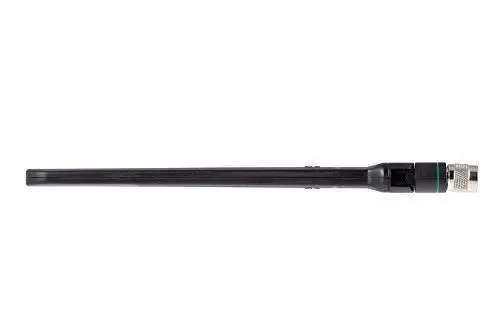

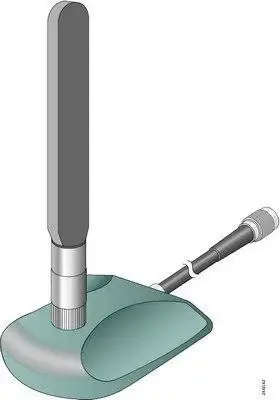

The 4G-LTE-ANTM-D antenna is marked with a green band and the product ID (PID) to indicate that it supports 4G Long Term Evolution (LTE) networks. It has the following hardware features:
Articulating JointIt can be rotated 360 degrees and is capable of maneuvering into three stop positions: 0 degrees, 45 degrees, and 90 degrees.

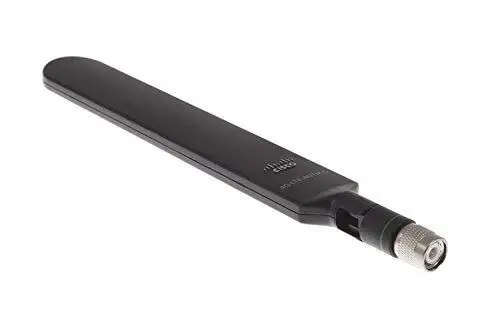

Male threaded Neill-Concelman (TNC) ConnectorIt lets you directly mount the antenna to any Cisco 4G and Cisco 3G wireless Integrated Services Router (ISR) EHWIC with a TNC connector (Figure 1). The threads on the connector must comply with the ANSI 7/16-28 UNEF 2B thread specification.
Specifications
Table 1 Specifications for Cisco 4G-LTE-ANTM-D Antenna
Specification
Description
Maximum input power
3W
Connector
TNC male
VSWR1
2.5:1 or less
Characteristic impedance
50 ohm
Antenna base and radome color
Cisco Raven Black
Antenna dimensions
9 (L) x 1.2 (W) x 7/16 in (D)
(229 x 30.5 x 11 mm)
Operating temperature
-22° to 158°F (-30° to 70°C)
Operating frequency ranges
98-806 MHz
824-894 MHz
925-960 MHz
1710-1885 MHz
1920-1980 MHz
2110-2170 MHz
2500-2690 MHz
Maximum Peak Gain
2 dBi
System Requirements
The Cisco 4G/3G omnidirectional dipole antenna is designed to be used with any Cisco 4G and Cisco 3G wireless ISRs G2 and EHWICs with a TNC antenna connector. The threads on this connector must comply with ANSI 7/16-28 UNEF 2B thread specification. The antenna is designed to be used only indoors.
Installation Notes
This antenna is designed to be mounted directly to any Cisco 4G and Cisco 3G wireless ISR and EHWIC with a TNC connector by simply threading it onto the mating connector. Mount and deploy the antenna at the 0-degree position, 45-degree position, or the 90-degree position, and then change that position at will. The rotation of the antenna into the proper position can take place while the antenna is still loose on the mating connector. No software is required for this installation.
