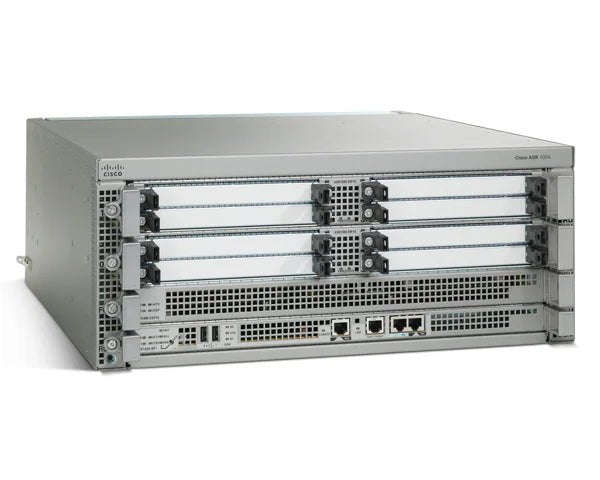

The Cisco ASR 1004 is a high-performance 4U edge router designed for scalable enterprise WAN aggregation and service provider networks. Supporting up to 40 Gbps throughput, the ASR1004 features 8 integrated Shared Port Adapter (SPA) slots and 2 SIP bays, providing modular flexibility to expand and adapt to growing traffic demands.
With software-based redundancy, integrated hardware encryption (via supported ESP modules), and NEBS-compliant design, the ASR1004 delivers carrier-grade reliability in a compact chassis. This unit is ideal for secure, high-throughput routing in mission-critical infrastructures.
8 built-in SPA slots for modular WAN/LAN interface configuration
Supports up to 2 SIP interface processors for high-density port scaling
Flexible performance scalability from 10 Gbps to 40 Gbps
Software-based redundancy for improved high-availability routing
Front-to-back airflow cooling ensures optimal thermal performance
NEBS-compliant chassis suitable for telecom-grade installations
Compatible with Cisco IOS XE for advanced routing and automation
Enterprise WAN core or edge routing for multi-branch connectivity
ISP and carrier-grade network edge aggregation
Secure high-throughput data transit for finance or public sectors
Modular deployment in telecom-grade colocation or data centers
Condition: Refurbished device with minor scratches and scuffs. Device has been extensively tested and is fully functional.
Model: Cisco ASR1004
SPA Slots: 8 x Integrated Shared Port Adapter (SPA) Slots
SIP Bays: 2 x SIP Interface Processor Bays
ESP Slots: 1 x Embedded Services Processor Slot
Route Processor Slots: 1
Throughput Scalability: 10 Gbps 40 Gbps (based on installed ESP)
Redundancy: Software-based
Memory (Default): 4GB DRAM (RP1) / 8GB DRAM (RP2)
Power Consumption:
Max DC: 1020W
Max AC: 960W
Cooling: Front-to-back airflow
Rack Mountable: Yes 4U (19-inch rack)
Built-in Ports: None all ports via installed SPAs
External USB: 1 x USB for external flash
Operating Temperature: 0°C to 40°C
Humidity Range: 10% to 85% (operating)
Altitude: 500 to 10,000 ft
Dimensions: 177.8 mm (H) × 437.4 mm (W) × 461.0 mm (D)
Weight: 31.16 kg (fully populated)
Compliance: NEBS, FCC Class A, EN55022/24, UL60950-1
Warranty: 3 Month Carry-in Warranty
What's in the Box: Cisco ASR1004 Chassis Only (No ESP, SIPs, RPs or SPAs included)
