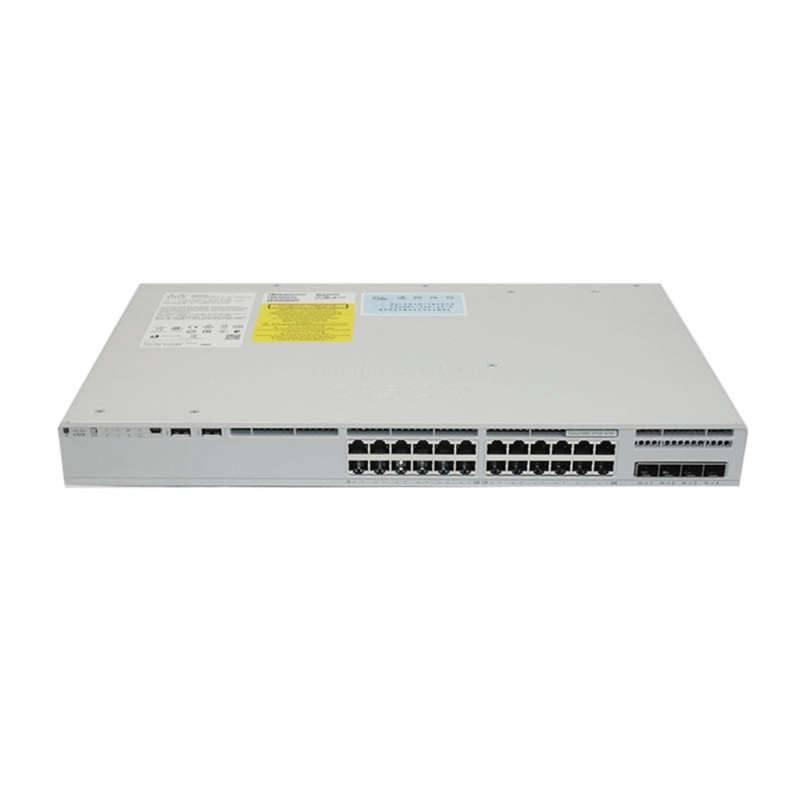

The refurbished Cisco C9200L-24P-4X-E is a high-performance 24-port Gigabit Ethernet PoE+ managed switch, designed for secure, scalable, and energy-efficient enterprise networking. With 4 x 10Gb fixed uplinks, 600W AC power, and built-in redundancy, this model provides excellent stacking bandwidth and advanced Layer 2/3 functionality with Network Essentials software.
Perfect for access-layer deployments, this switch supports 24 full PoE+ ports, 80 Gbps stacking, Flexible NetFlow, and advanced routing capabilities including IPv4, IPv6, and multicast support. Its compact 1U form factor makes it ideal for high-density rack deployments across business campuses, remote branches, and industrial network cores.
Key Features & Benefits
24 x 10/100/1000 PoE+ downlink ports with full IEEE 802.3at support
4 x 10GbE fixed uplink ports for high-speed core connectivity
Powered by Cisco's Network Essentials software (Layer 2/3)
Fixed redundant fans and PWR-C5-600WAC primary AC power supply
80 Gbps stacking bandwidth with Cisco StackWise® architecture
Enterprise-grade routing and access control with 2GB DRAM, 4GB flash
Supports 16,000 MAC addresses and 11,000 IPv4 routing entries
Ideal Uses
Enterprise campus and branch network aggregation
Powering VoIP phones, wireless access points, and PoE-enabled devices
Uplinking to core switches or data centers at 10Gbps
Layer 3 routed access or small-scale distribution layer deployment
Specifications
Condition: Refurbished device with minor scratches and scuffs. Device has been extensively tested and is fully functional.
Model: Cisco C9200L-24P-4X-E
Ports: 24 x 1GbE PoE+ downlinks, 4 x 10GbE SFP+ uplinks
Stacking Bandwidth: 80 Gbps
Software: Network Essentials
Packet Buffer: 6MB
Forwarding Rate: 190.4 Mpps
Switching Capacity: 128 Gbps
Memory: 2GB DRAM / 4GB Flash
Routing Entries: 11,000 IPv4 (8,000 direct, 3,000 indirect), 1,500 IPv6
QoS/ACL Entries: 1,000 QoS / 1,500 ACL
Multicast Routing Scale: 1,000
Virtual Networks: 1
SVIs: 512
VLANs Supported: 4094
Jumbo Frames: 9198 bytes
Power Supply: PWR-C5-600WAC (Included)
Fans: Fixed redundant
Dimensions (H x W x D): 1.73 x 17.5 x 11.3 in (4.4 x 44.5 x 28.8 cm)
Weight: 10.38 lbs (4.71 kg)
MTBF: 390,310 hours
Warranty: 3 Month Carry-in Warranty
What's in the Box: Switch, Power Cable
