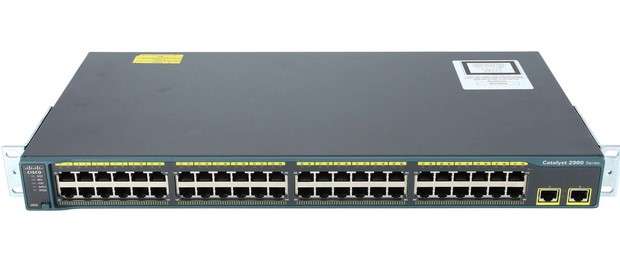

Cisco Catalyst 2960 Series - WS-C2960-48TT-L

The WS-C2960-48TT-L is a Cisco Catalyst 2960 Series switch, a line of fixed-configuration, Layer 2 Ethernet switches designed for branch and midsize campus networks. Below are its key specifications:

Key Features:

1. Ports:

   • 48 Fast Ethernet (10/100 Mbps) ports.
   • 2 additional 10/100/1000 Mbps Gigabit Ethernet uplink ports.

2. Layer 2 Switching:

   • Provides Layer 2 switching functionality, supporting VLANs and basic management features.
   • Supports protocols like Spanning Tree Protocol (STP) and VLAN Trunking Protocol (VTP).

3. Management:

   • Managed switch with Cisco IOS Software for configuration and monitoring.
   • Managed via CLI, SNMP, or web-based interface.

4. Performance:

   • Forwarding bandwidth: 16 Gbps.
   • Packet forwarding capacity: Up to 6.5 million packets per second (mpps).

5. Reliability and Resiliency:

   • Supports features like EtherChannel and STP for redundancy and resiliency.

6. Power Supply:

   • Integrated power supply.
   • No PoE (Power over Ethernet) support.

7. Form Factor:

   • Rack-mountable, 1RU.

8. Software Licensing:

   • Part of the LAN Base series, focusing on entry-level enterprise-grade switching.

9. V05:

   • The "V05" refers to the hardware revision of the device.

This switch is ideal for environments that require basic Layer 2 connectivity with a large number of ports but do not need advanced Layer 3 routing features or Power over Ethernet. It's commonly used in edge or branch office deployments.
