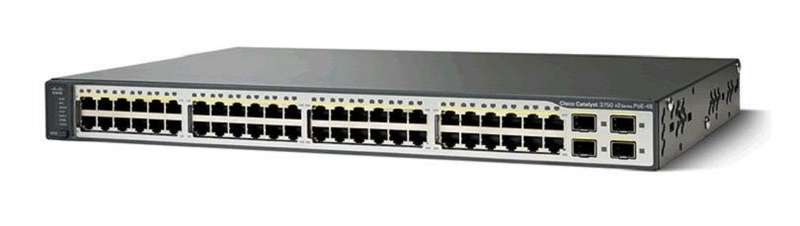

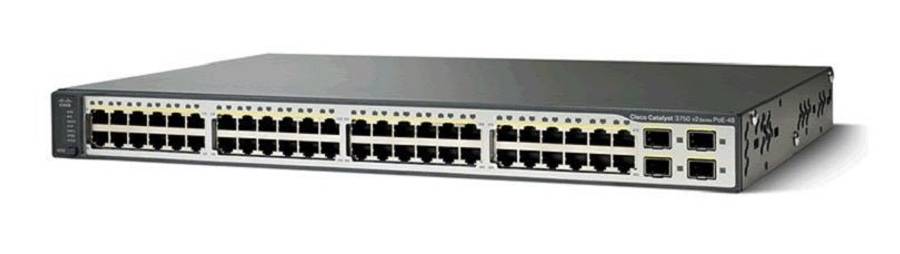

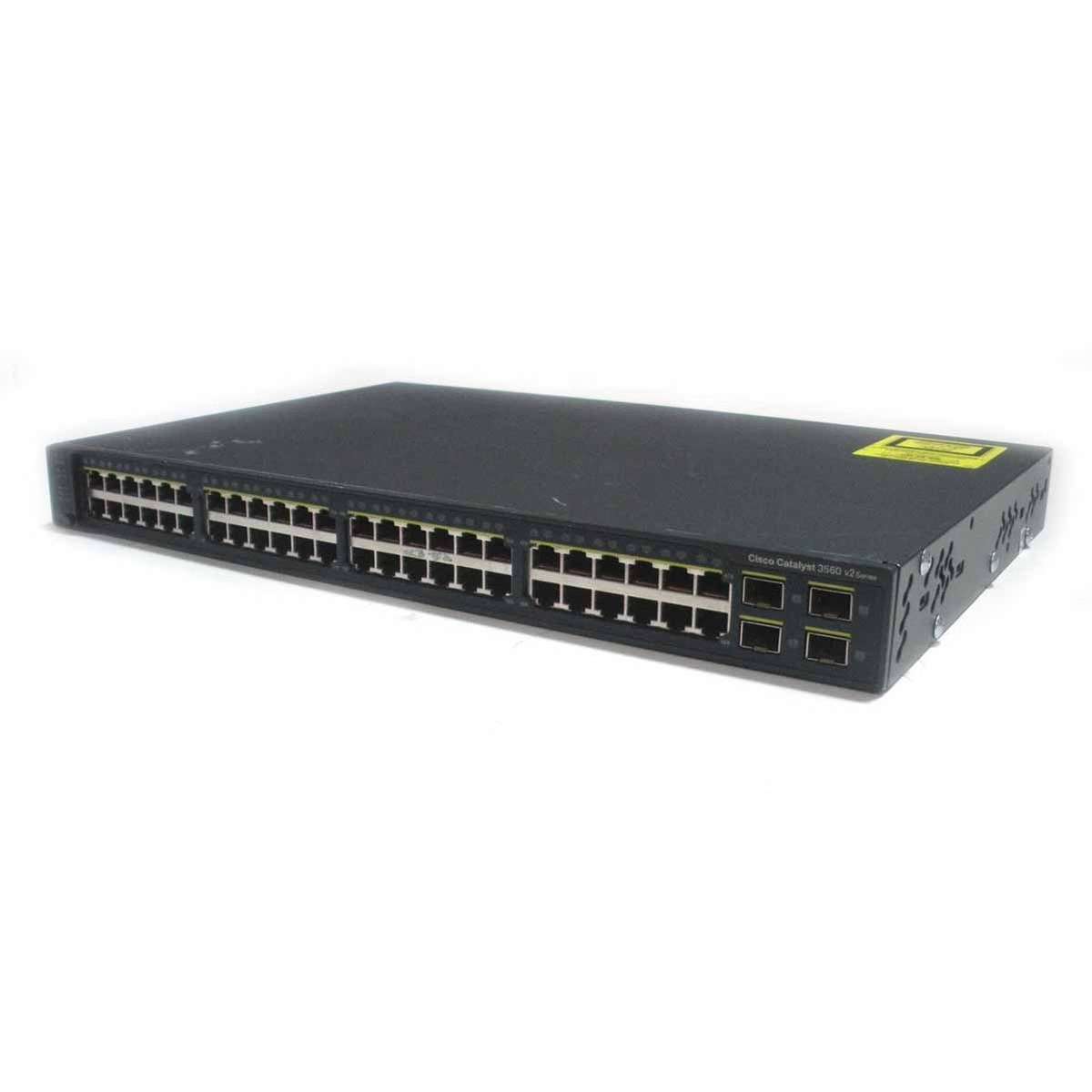

This compact yet powerful Layer 3 managed switch offers enterprise-grade performance for small to mid-sized networks. The Cisco WS-C3560V2-48TS-S features 48 Fast Ethernet ports and 4 SFP uplink slots, enabling flexible connectivity to both copper and fiber infrastructures. With a 32 Gbps switching capacity and 10.1 Mpps forwarding rate, this switch is ideal for networks with high data throughput demands.
Preloaded with Cisco's IP Base software image, the switch supports static routing, EIGRP stub routing, QoS, VLANs, and robust security features such as ACLs, 802.1X, and SSH. Its 1U rackmount form factor and optional redundant power support make it a durable, scalable core or edge switch for business-critical applications.
Key Features & Benefits
48 × 10/100 Mbps RJ-45 Ethernet ports for high-density LAN connectivity
4 × SFP uplinks for fiber or copper gigabit module integration
Layer 3 routing with IP Base Image: static routing, EIGRP stub, and advanced VLAN support
Security-ready with ACLs, 802.1X, SSH, and SNMPv3
Supports 4,000 VLAN IDs and 12,000 MAC entries with 8 QoS queues per port
Ideal Uses
Business networks needing secure Layer 3 switching at the distribution or access layer
Surveillance and VoIP networks requiring VLAN separation and static routing
Educational institutions and small enterprises looking for reliable wired infrastructure
IT environments needing fiber uplink expansion to backbone networks
Specifications
Condition: Refurbished device with minor scratches and scuffs. Device has been extensively tested and is fully functional.
Brand: Cisco
Model: WS-C3560V2-48TS-S
Product Type: Layer 3 Managed Switch
Ethernet Ports: 48 × 10/100BASE-T (RJ-45)
Uplink Ports: 4 × SFP (mini-GBIC)
Switching Capacity: 32 Gbps
Forwarding Rate: 10.1 Mpps
Memory:
DRAM: 128 MB
Flash: 32 MB
MAC Address Table: 12,000 entries
VLAN Support: 4,000 VLAN IDs (802.1Q)
QoS: 8 queues per port, DSCP/CoS classification
Management Interface: 1 × RJ-45 console (CLI)
Stacking Support: Not supported
Security: ACLs, 802.1X, SSH, SNMPv3
Software: Cisco IP Base image (static routing, EIGRP stub)
Redundancy: Optional external RPS (not included)
Power Input: 100240V AC, 50/60 Hz
Power Consumption: ~75W typical
Operating Temperature: 0°C to 45°C (32°F to 113°F)
Storage Temperature: -40°C to 70°C (-40°F to 158°F)
Humidity: 10% to 90%
Compliance: FCC Part 15, CE, RoHS
Form Factor: 1U rack-mountable
Dimensions: 17.5" (W) × 11.8" (D) × 1.7" (H)
Warranty: 3 Month Carry-in Warranty
What's in the Box: Cisco WS-C3560V2-48TS-S Switch
