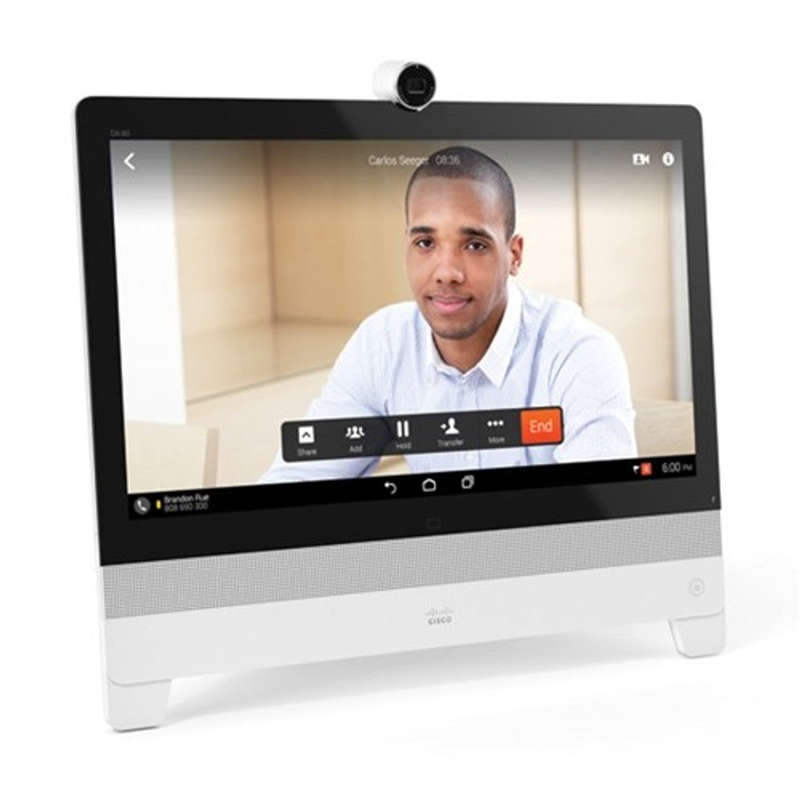

Cisco DX80 (CP-DX80-K9) Desktop Collaboration Device

The Cisco DX80 (CP-DX80-K9) is a desktop collaboration device designed for high-definition video conferencing, business communications, and content sharing. Below are its specifications:

Can be connected as an external screen

Display:

• Size: 23-inch LCD
• Resolution: 1920 x 1080 (Full HD)
• Panel Type: IPS LED
• Aspect Ratio: 16:9
• Contrast Ratio: 1000:1
• Viewing Angle: ±178 degrees
• Response Time: 5 ms
• Brightness: 215 cd/m²
• Color Depth: 16.7 million colors
• Touchscreen: 10-point multitouch capability

Camera:

• Resolution: 1080p HD
• Privacy Shutter: Yes
• Tilt Function: Adjustable for document sharing

Audio:

• Microphone: Integrated microphone array with noise reduction
• Speaker: High-quality built-in speaker optimized for voice communication

Processing & Storage:

• Processor: 1.5 GHz dual-core ARM Cortex-A9
• RAM: 2 GB LPDDR2 SDRAM
• Storage: 8 GB eMMC NAND flash memory

Connectivity:

• Ethernet: 2-port Gigabit Ethernet switch (RJ-45)
• USB Ports:
  • Three USB-A for peripherals
  • One Micro-USB-B (for service use)
• HDMI:
  • One HDMI input for external devices
  • One HDMI output (not in use)

Physical Specifications:

• Dimensions (H x W x D): 20.2 x 22.2 x 3.5 inches
• Weight: 7.1 kg (15.65 lb)
• Adjustability: Screen reclines to 40°, camera tilts from 5° to 70°

Power:

• Power Consumption: 60W max
• Standby Mode: Energy-saving low-power mode

Environmental Conditions:

• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Storage Temperature: 20°C to +60°C (4°F to 140°F)
• Relative Humidity: 10% to 90% (non-condensing)

Additional Features:

• External Monitor Functionality: Can be used as a secondary display via HDMI
• Content Sharing: Supports document and screen sharing
• Security Slot: Compatible with Kensington lock for added security

This device is built for business collaboration, offering a high-quality video conferencing experience with an intuitive touchscreen interface. Let me know if you need further details!

License Requirements:

1. Standalone Mode (Without Cisco Call Control)

   • If the DX80 is used as a standalone device with third-party video conferencing solutions or as an external monitor, no Cisco license is required.

2. Registered to Cisco Unified Communications Manager (CUCM)

   • If you plan to register the DX80 with CUCM (Cisco Unified Communications Manager), you will need a Device License and possibly a User License depending on your CUCM setup.
   • The license type depends on the CUCM version and your organization's existing Cisco licensing model.

3. Registered to Cisco Webex (Cloud Mode)

   • If using the DX80 with Cisco Webex, a Cisco Webex Device Subscription is required.
   • This allows the DX80 to function as a cloud-registered endpoint with Webex Meetings and Webex Calling.
