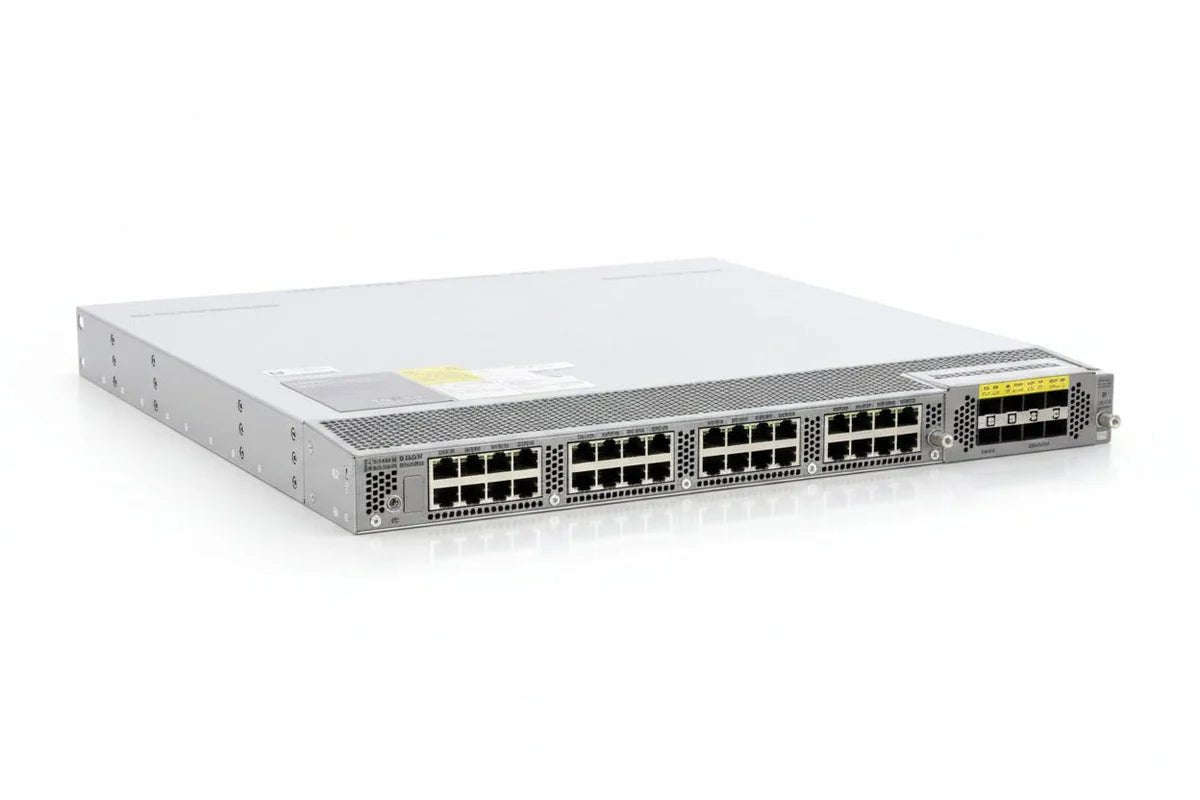

The Cisco N2K-C2232TM-10GE is a high-performance 32-port fabric extender switch designed to provide scalable, high-speed connectivity in modern data center environments. It integrates seamlessly with Cisco Nexus 5000, 6000, 7000, and 9000 Series switches to extend port density while simplifying management and reducing operational costs. With 32 1/10GBASE-T host interfaces and 8 10G SFP+ uplink ports, it delivers fast, reliable connections for servers and storage systems, supporting bandwidth-intensive workloads, virtualization, and high-performance computing.
Built for reliability and efficiency, the N2K-C2232TM-10GE features hot-swappable power supplies and fan modules, 1:1 power redundancy, and hardware forwarding at up to 800Gbps, ensuring high availability in critical environments. It supports advanced Layer 2 features, jumbo frames, VLANs, QoS, and local multicast replication, while management is simplified through in-band management via the parent Nexus switch, SNMP, XML (NETCONF), and CLI interfaces. The chassis is rack-mountable, compact, and designed for optimized thermal performance.
Key Features &Benefits
32 × 1/10GBASE-T RJ45 Host Interfaces High-speed server connectivity
8 × 10G SFP+ Uplink Ports Fast uplink to parent Cisco Nexus switches
Fabric Speed: 80 Gbps per direction (160 Gbps full duplex)
Hardware Forwarding at 800 Gbps or 595 Mpps Low-latency performance
Hot-Swappable Power Supplies & Fan Modules High availability
1:1 Power Redundancy Minimizes downtime
Layer 2 Features VLANs, EtherChannel, Jumbo Frames, Private VLANs
QoS Support 8 hardware queues per port with per-port policing
Management Options SNMP v1/2/3, RMON, NETCONF/XML, CLI, Syslog
Rack-Mountable Form Factor 1U, compact and efficient
Ideal Uses
Data center server connectivity and extension
High-performance computing and virtualization
Network scaling and port density expansion
Enterprise and hyperscale environments
Specifications
Condition: item in perfect working order, fully tested and ready to use
Manufacturer: Cisco
Model: N2K-C2232TM-10GE
Product Type: Fabric Extender Switch
Form Factor: 1U Rack-Mountable
Ports & Interfaces
32 × 1/10GBASE-T RJ45 Host Ports
8 × 10G SFP+ Uplink Ports
Support for Twinax, AOC, and SFP+ optics
Performance & Features
Fabric Speed: 80 Gbps per direction (160 Gbps full duplex)
Oversubscription: 4:1
Layer 2 VLAN, EtherChannel, Private VLANs
Jumbo Frames up to 9216 Bytes
QoS: 8 queues per port, configurable tail-drop, WRR scheduling
Power & Environmental
Hot-Swappable Power Supplies: N2200-PAC-400W / N2200-PAC-400W-B / N2200-PDC-400W
Typical Power Consumption: 210W at 30M, 240W at 100M (max 300W)
Operating Temperature: 0 40°C
Humidity: 5 95% non-condensing
Dimensions: 1.72 × 17.3 × 17.7 in (H × W × D)
Weight: 18.5 lb (8.4 kg)
Warranty
12 Month Warranty
What's in the Box
Cisco N2K-C2232TM-10GE Fabric Extender Switch
Power cable
