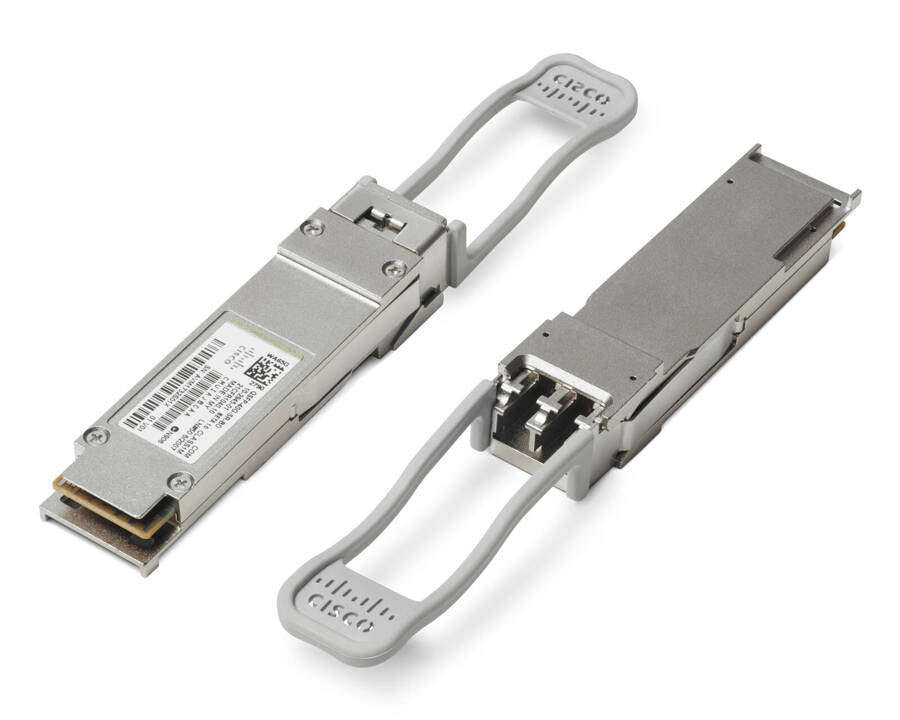

The Cisco QSFP-40G-SR-BD is a refurbished 40GBASE-SR Bi-Directional QSFP optical transceiver designed for duplex multimode fiber connections. Using a unique bidirectional technology over a single pair of fibers, it transmits and receives simultaneously on the same strand, providing high-speed 40Gbps connectivity without additional fiber runs.
Operating across wavelengths from 832 to 918nm, this hot-swappable module supports cable distances of up to 30m on OM2, 100m on OM3, and 150m on OM4 fiber. It is fully compliant with IEEE 802.3 standards and QSFP+ MSA specifications, making it ideal for high-density data center deployments and enterprise backbone networks.
40GBASE-SR BiDi technology allows 40Gbps over a single duplex MMF pair
Supports up to 150m over OM4, 100m over OM3, and 30m over OM2 fiber
Operates over wavelengths from 832nm to 918nm
Low power consumption of 3.5W for energy-efficient operation
QSFP+ hot-swappable form factor for quick deployment and replacement
Data center backbone and aggregation layer links
High-speed connections between switches and routers
Upgrading existing MMF infrastructure to 40Gbps without extra fiber installation
High-density rack environments requiring short-to-medium range connectivity
Condition: Refurbished device with minor scratches and scuffs. Device has been extensively tested and is fully functional.
Brand / Model: Cisco QSFP-40G-SR-BD=
Type: 40GBASE-SR Bi-Directional, Duplex MMF
Form Factor: QSFP+
Dimensions (W x H x D): 13.5 x 18.4 x 72.4 mm
Wavelength Range: 832 918nm
Cable Type: MMF
Core Size: 50µm
Modal Bandwidth: OM2 500 MHz·km / OM3 2000 MHz·km / OM4 4700 MHz·km
Cable Distances: 30m (OM2), 100m (OM3), 150m (OM4)
Power Consumption: 3.5W
Pull Tab Color: Gray
Transmit Power (per lane): Max +5 dBm, Min -4 dBm
Receive Power (per lane): Max +5.0 dBm, Min -6.0 dBm
Operating Temperature: +10°C to +70°C
Storage Temperature: -40°C to +85°C
Standards Compliance: GR-20-CORE, GR-326-CORE, GR-1435-CORE, IEEE 802.3ba (-SR4, -LR4), IEEE 802.3ae (-CSR4), QSFP+ MSA SFF-8436, SFP+ MSA SFF-8431/-8461, RoHS 6
Safety Compliance: UL E116441 Compliant, ELV Compliant
Warranty: 1 Month Carry-in Warranty
What's in the Box: 1 x Cisco QSFP-40G-SR-BD Optical Transceiver
