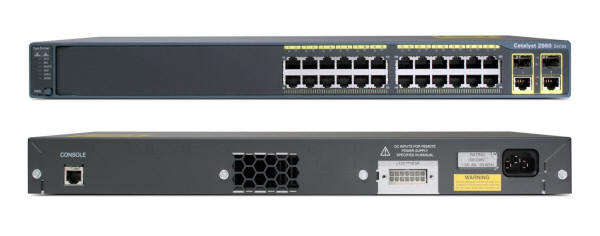

Cisco WS-C2960-24TC-L 24 Port Fast Ethernet Layer 2 Managed Switch – Refurb

The Cisco WS-C2960-24TC-L is a robust Layer 2 managed switch designed for small to medium business networks and branch office deployments. With 24 × 10/100 Ethernet ports and 2 uplink ports (SFP or 1000BASE-T), it provides reliable wired connectivity for workstations, IP phones, and network devices. Running Cisco IOS LAN Lite, this refurbished unit delivers essential management features, VLAN support, and energy-efficient operation for consistent network performance.

Built for long-term reliability and efficiency, the WS-C2960-24TC-L offers high MTBF, low power consumption, and a compact 1U rackmount form factor. This switch is ideal for office, branch, and enterprise edge environments requiring dependable Layer 2 connectivity.

Key Features & Benefits

24 × 10/100BASE-T Ethernet Ports Reliable connectivity for multiple devices
2 × Uplink Ports (SFP or 1000BASE-T) Flexible fiber or copper uplinks
Layer 2 Managed Switch Supports VLANs, QoS, and basic network management
Cisco IOS LAN Lite Simplified management for small to medium networks
1U Rackmount Design Fits standard 19-inch racks
Energy Efficient Low power consumption across operating modes
High Reliability MTBF of 403,745 hours for long-term network uptime

Ideal Uses

Small to medium business LAN deployments
Branch office and remote office networking
Workstation and peripheral connectivity
VoIP and IP phone system integration
Network edge deployment for enterprise networks

Specifications

Condition: Refurbished device with minor scratches and scuffs. Device has been extensively tested and is fully functional.
Manufacturer & Model: Cisco WS-C2960-24TC-L
Switch Type: Layer 2 Managed Ethernet Switch

Performance:
Forwarding Bandwidth: 16 Gbps
Maximum VLANs: 64 active VLANs (4K VLAN IDs)
Maximum Transmission Unit (MTU): 9,000 bytes
Jumbo Frames: 9,016 bytes
Forwarding Rate: 6.5 Mpps (64-byte packets)

Memory & Storage:
Flash Memory: 32 MB
DRAM: 64 MB

Connectors & Cabling:
24 × 10/100BASE-T (RJ-45)
2 × Uplink Ports (SFP or 1000BASE-T)
LC Fiber SFP Ports Supported: 1000BASE-SX, 1000BASE-LX/LH, 100BASE-FX

Power:
Internal Auto-Ranging Power Supply: 100240V AC
Maximum Power Consumption: 27W
BTU Output: 90 BTU/hour

Environmental:
Operating Temperature: -5°C to 45°C (short-term exceptions up to 55°C)
Storage Temperature: -25°C to 70°C
Operating Humidity: 1085% non-condensing
Storage Humidity: 1085% non-condensing
Operating Altitude: Up to 4,000 m
Storage Altitude: Up to 4,000 m

Physical Specifications:
Dimensions: 1.73 × 17.5 × 9.3 in (4.4 × 44.5 × 23.6 cm)
Weight: 8 lb (3.6 kg)

Standards & Compliance:
IEEE 802.1D, 802.1p, 802.1Q, 802.1s, 802.1w, 802.1x, 802.1AB (LLDP), 802.3ad, 802.3x, 802.3u, 802.3ab, 802.3z
SNMP v1, v2c, v3; RMON I and II
Safety: UL 60950-1, CAN/CSA C22.2, EN 60950-1, IEC 60950-1, TUV/GS, CE, NOM
EMC: FCC Part 15 Class A, EN 55022, EN 55024, CISPR22, CNS13438, MIC, GOST
RoHS Compliant

Warranty

6 Month Carry-in Warranty

What's in the Box

Cisco WS-C2960-24TC-L Switch
Power Cable
