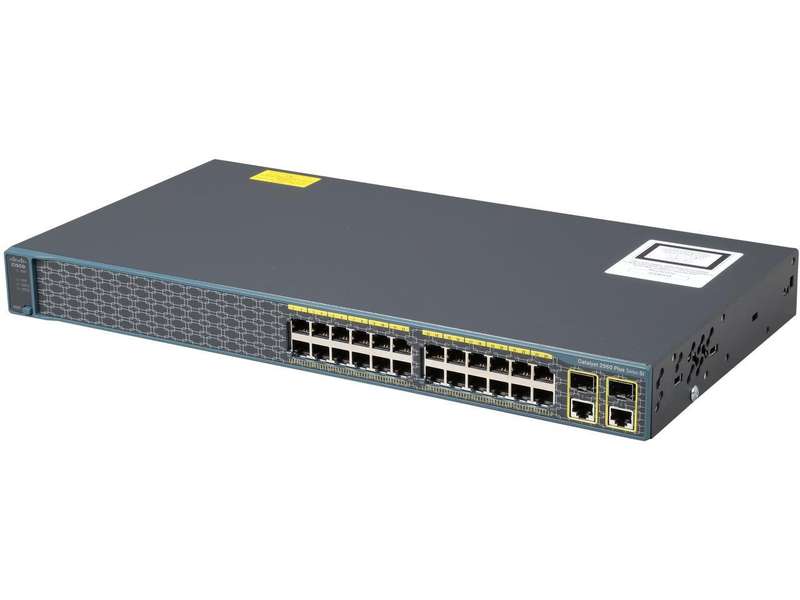

This refurbished Cisco WS-C2960+24TC-S switch offers reliable Layer 2 connectivity in a cost-effective format, ideal for entry-level enterprise or departmental deployments. Featuring 24 Fast Ethernet ports and two uplink interfaces (supporting either SFP or Gigabit Ethernet), the switch is a practical solution for static access layer designs or network edge applications.
Built with Cisco's LAN Lite IOS, it enables basic VLAN segmentation, Layer 2 switching, link aggregation, and SNMP-managed visibility for easy network administration. Its low power consumption, fanless design, and high MTBF rating make it ideal for always-on environments such as classrooms, point-of-sale setups, and administrative offices.
Key Features & Benefits
24 x 10/100 Ethernet Ports Reliable connectivity for desktops, printers, IP phones, and cameras in a small network.
2 x Dual-Purpose Uplinks Offers flexibility between SFP fiber modules and RJ-45 Gigabit Ethernet links for uplinking to core switches.
LAN Lite IOS Includes VLAN support, QoS tagging, and broadcast control without full Layer 3 overhead.
Compact and Efficient Low power draw and low heat output; operates quietly at just 33 dBA typical.
Intelligent Diagnostics Supports Cisco cable diagnostics, loop detection, and remote management via SNMPv3 and RMON.
RPS Connector Redundant power supply support with Cisco RPS 2300 for additional uptime resilience.
Ideal Uses
Equipping branch offices or satellite campuses with reliable Layer 2 switching and uplink flexibility.
Connecting wired clients in administrative or classroom environments with structured VLANs and static routing upstream.
Powering low-traffic server racks or distribution closets where PoE is not required.
Replacing legacy hubs or unmanaged switches in IT closets that require monitoring, SNMP alerts, and performance logging.
Specifications
Condition:
Refurbished device with minor scratches and scuffs. Device has been extensively tested and is fully functional.
Manufacturer & Model:
Cisco WS-C2960+24TC-S
Form Factor:
1U Rackmount Fixed Configuration
Ethernet Ports:
24 x 10/100 Mbps Ethernet Ports
2 x Dual-Purpose Uplinks: Either 1000BASE-T or SFP
Switching Performance:
Switching Capacity: 16 Gbps
Forwarding Rate: 6.5 Mpps (64-byte Layer 3 packets)
VLAN Support:
64 Active VLANs
4,096 VLAN IDs
Jumbo Frame Support: 9018 bytes
Max MTU: 9000 bytes
Memory & Storage:
DRAM: 128MB
Flash Memory: 64MB
Software & Management:
Cisco IOS Software: LAN Lite Feature Set
SNMPv1, v2c, v3
RMON I & II
CLI, Cisco Cluster Management Suite (CMS)
MIBs Supported: Over 50, including CDP, STP, VLAN-MEMBERSHIP, and more
Spanning Tree Protocols: STP, RSTP, MSTP
Power Specifications:
Internal AC Power Supply (Auto-ranging 100240V AC, 50/60Hz)
Power Draw (100% traffic): Max 19.1W
Redundant Power Supply Support: Cisco RPS 2300 (Optional)
Environmental & Physical:
Dimensions: 1.73 x 17.7 x 9.52 in (4.4 x 45 x 24.2 cm)
Weight: 3.6 kg (8 lbs)
Operating Temp: -5°C to 45°C (up to 5000 ft)
Humidity: 10% to 95% non-condensing
MTBF: 667,000 hours
Sound Level: 33 dBA (Typical), 36 dBA (Max)
Standards & Protocols:
IEEE 802.1Q VLAN
IEEE 802.1D, 802.1w, 802.1s Spanning Tree
IEEE 802.1p CoS
IEEE 802.1X NAC
IEEE 802.3ad (Link Aggregation)
IEEE 802.3ab/ae/af/z
RFC Support: TFTP, Telnet, SNMP, IGMP, RADIUS, and more
Warranty:
3 Month Carry-In Warranty
What's in the Box:
Cisco WS-C2960+24TC-S Switch, Power Cable
