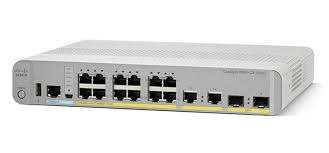

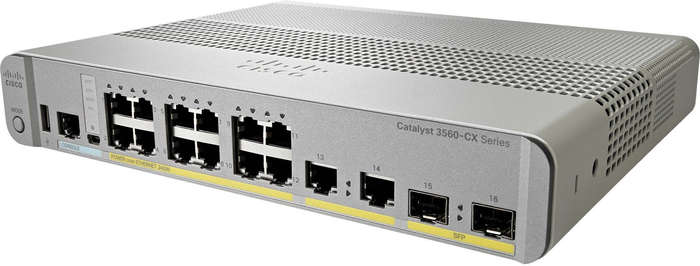

The Cisco WS-C3560CX-12PC-S is a compact, fanless managed Layer 3 switch designed for high-performance edge and branch deployments. Featuring 12 Gigabit Ethernet PoE+ ports with a total PoE budget of 240W, it supports a wide range of powered devices, including IP phones, wireless access points, and surveillance cameras.
With 2 copper uplinks and 2 SFP uplinks for flexible connectivity, robust security features, and advanced QoS capabilities, the WS-C3560CX-12PC-S ensures reliable performance and simplified management. Its silent, energy-efficient operation makes it ideal for office, retail, and hospitality environments where noise and space are a concern.
Key Features & Benefits
12 x Gigabit Ethernet PoE+ ports with a total 240W PoE budget for powering devices
2 x 1G copper and 2 x 1G SFP uplinks for flexible network expansion
Fanless, silent operation for noise-sensitive environments
Advanced Layer 3 features with IP Base software for dynamic routing
Compact form factor ideal for space-constrained deployments
Energy-efficient design with full enterprise-grade reliability
Ideal Uses
Office environments powering IP phones, access points, and security devices
Retail or hospitality venues needing silent, compact networking hardware
Branch offices requiring managed Layer 3 switching and PoE capabilities
Surveillance networks with high PoE device counts
Specifications
Condition: Refurbished device with minor scratches and scuffs. Device has been extensively tested and is fully functional.
Brand: Cisco
Model: WS-C3560CX-12PC-S
Device Type: Managed Layer 3 Switch
Ethernet Ports: 12 x 10/100/1000 Gigabit Ethernet
PoE Output Ports: 12 x PoE+
Available PoE Power: 240W
Uplinks: 2 x 1G Copper + 2 x 1G SFP
Default Software: IP Base (IP Services via RTU License)
Forwarding Bandwidth: 16 Gbps
Switching Capacity: 32 Gbps
Forwarding Rate (64 Byte Packet): 23.8 Mpps
Flash Memory: 128 MB
Memory: 512 MB DRAM
Max VLANs: 1023
VLAN IDs: 4000
Jumbo Frames: 9198 bytes
MTU: Up to 9000 bytes
Dimensions: 4.44 x 26.9 x 23.8 cm (1.75 x 10.6 x 9.4 in)
Weight: Approx. 2.7 kg
Operating Temperature: -5°C to +45°C
Operating Altitude: Up to 3048 m
Operating Humidity: 5% to 95% noncondensing
Powering Option: Internal power supply
Management Protocols: SNMP, RMON, CLI, Web UI, and Cisco proprietary MIBs
Standards Compliance: IEEE 802.1D, 802.1Q, 802.1x, 802.3af, 802.3at, and more
Warranty: 3 Month Carry-in Warranty
What's in the Box: Switch
