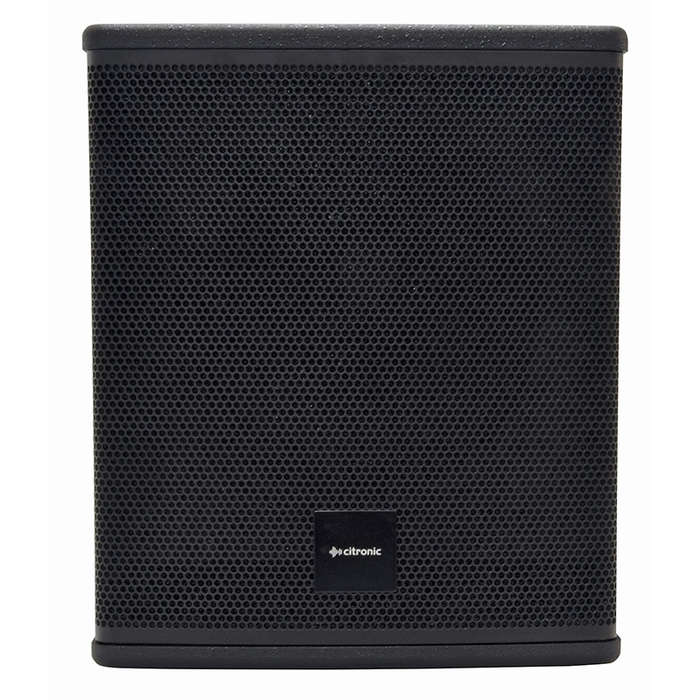

CITRONIC CASA-10BA ACTIVE SUBWOOFER SPEAKER 10IN BLACK 300W 8 OHM

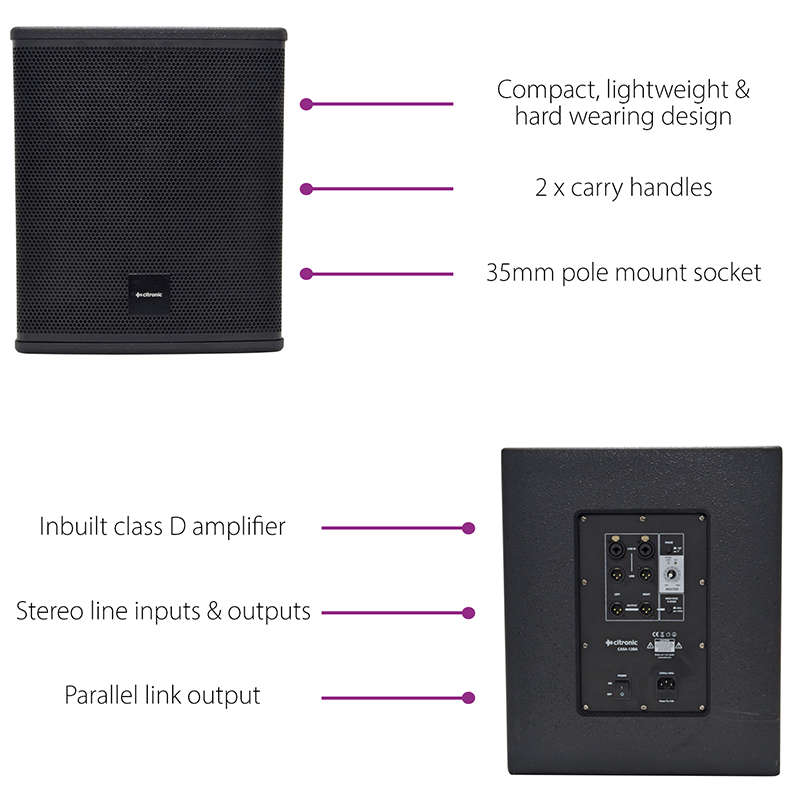

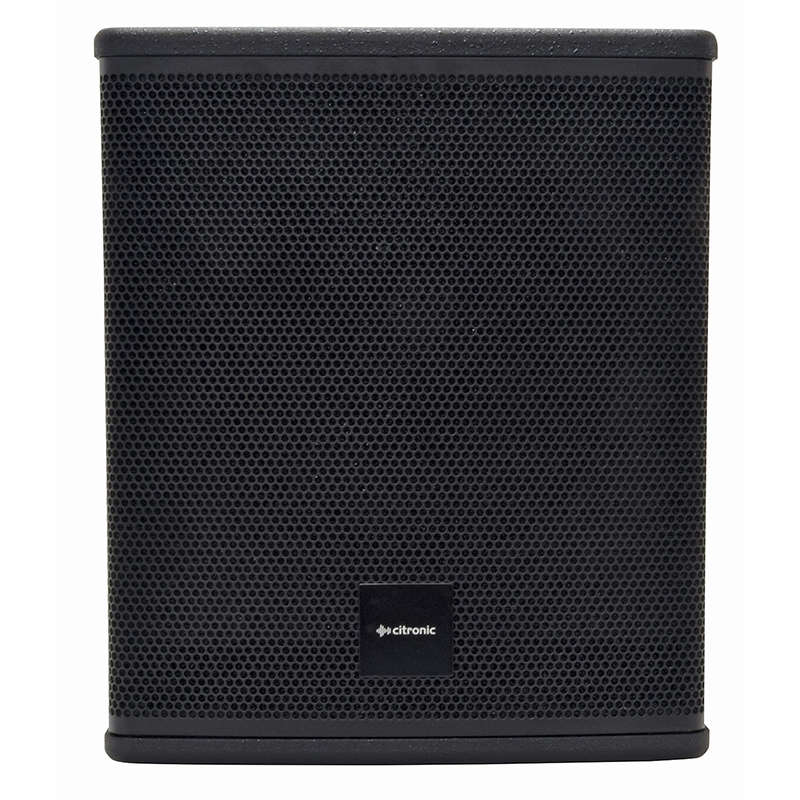

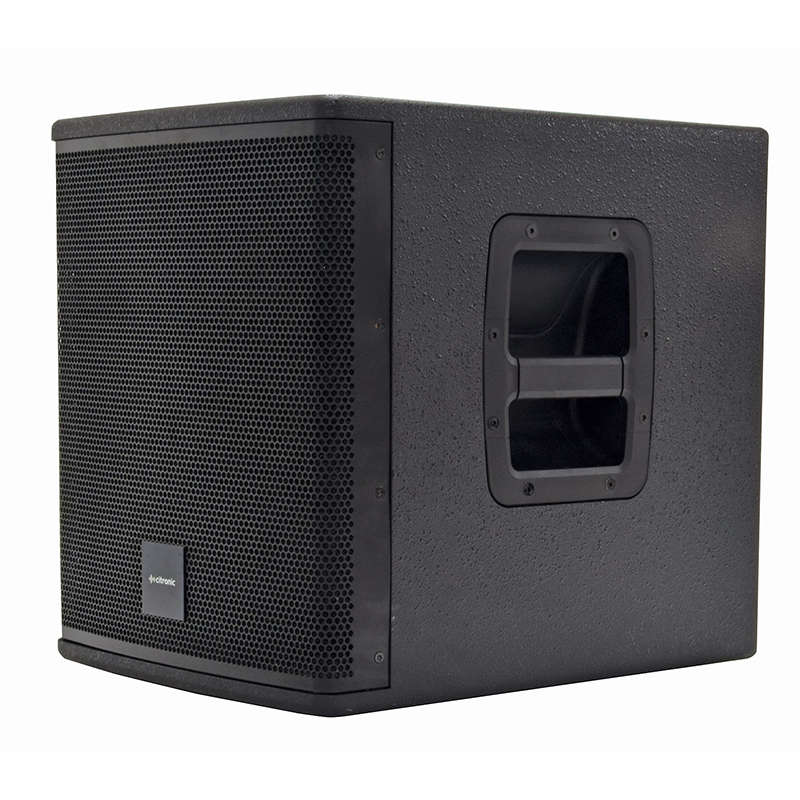

Lightweight yet powerful active subwoofer units with inbuilt class D amplifiers. Each cabinet is constructed from 15mm MDF with integral side handles for easy portability and 35mm socket to accommodate a mounting pole. The high flex sub driver is front-loaded with a protective steel grille to deliver powerful transients and add warmth to any sound system. The class D amplifier section has stereo line inputs and outputs to allow use either as a mono sub with stereo tops or a matching sub for each top speaker. Line inputs have a parallel Link output to pass the signal onto further active speakers and a pair of line outputs with switchable high pass filter to connect to active top cabinets. A phase switch is included to help avoid sound cancellation and time-align multiple speaker setups. Designed as a perfect match for the CASA series speakers and equally at home with other active full range cabinets.

Power supply: 230Vac, 50Hz (IEC)

Construction: 15mm MDF with durable texture paint finish

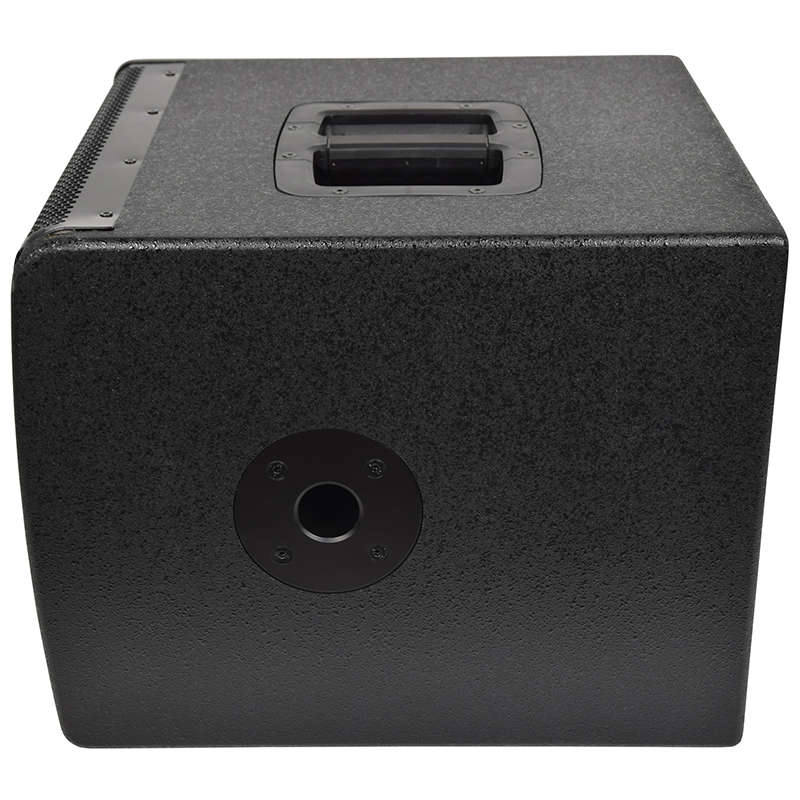

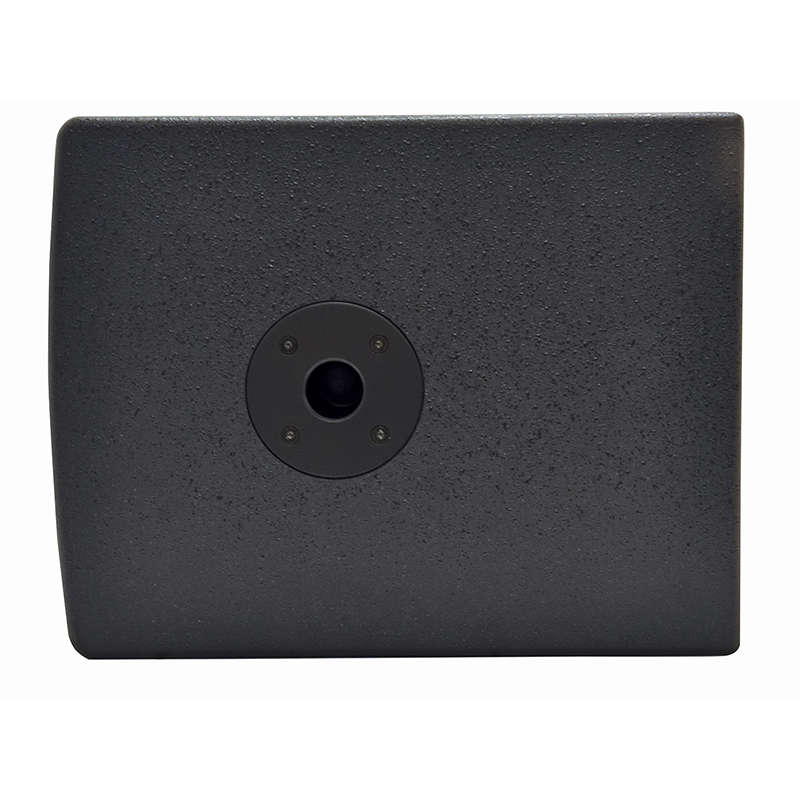

Hardware: 2 x side carry handles + 35mm pole mount socket

Amplifier : construction: Class D

Line inputs: L+R balanced XLR

Line outputs: L+R balanced XLR & L+R link XLR

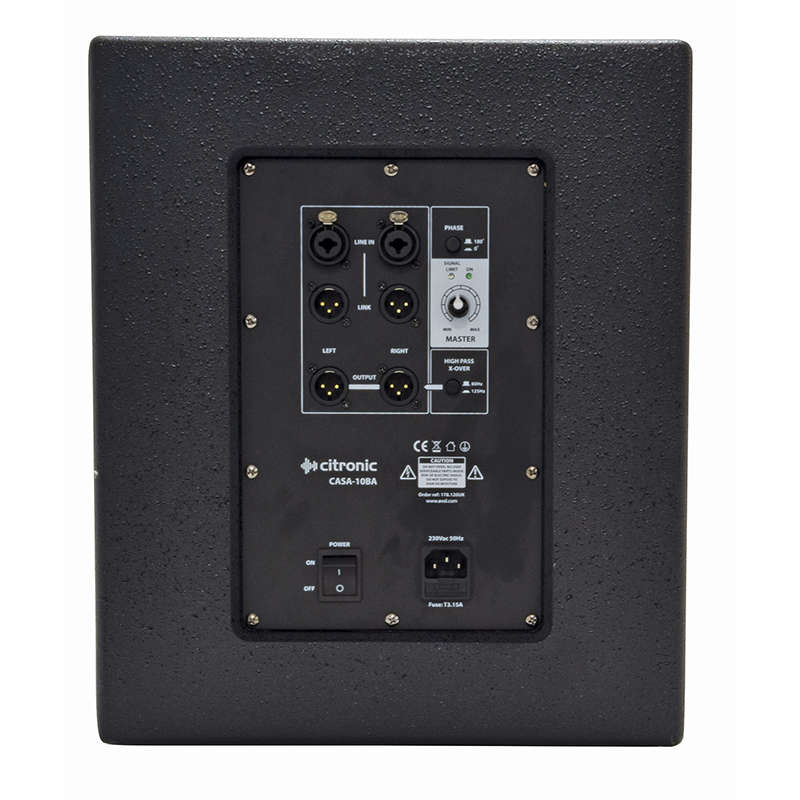

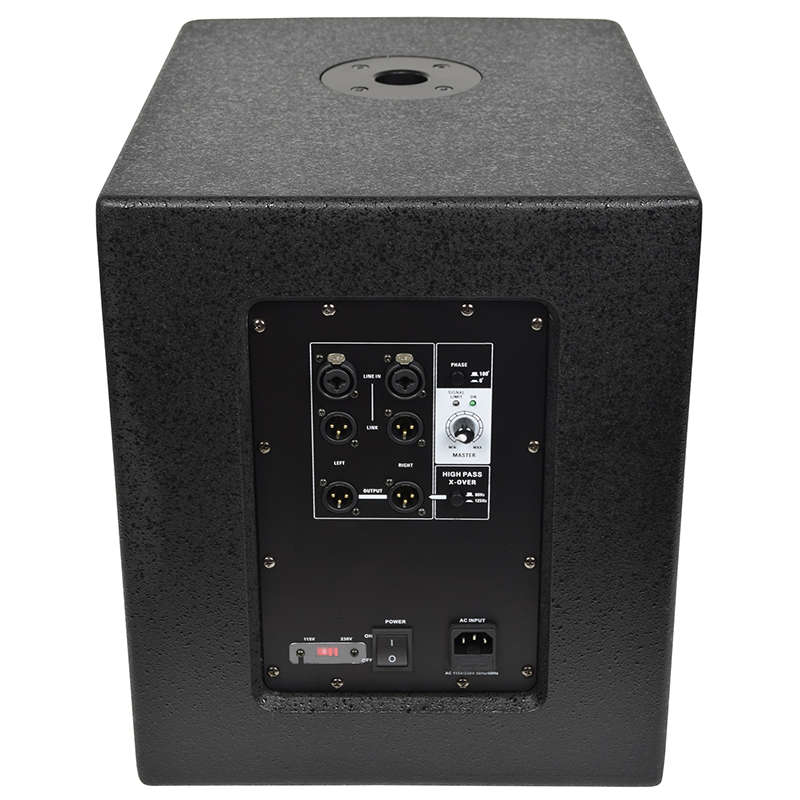

Controls: Output level, phase switch, high pass x-over (output)

Sub driver : 250mmØ (10")

Voice coil: 50mmØ (2")

Output power : rms : 300W

Output power : max. : 500W

Peak output : 1000W

SPL max. 120.0dB

Frequency response : 60 - 150Hz

Dimensions : 431 x 407 x 338mm

Weight : 16.23kg
