CITRONIC - CSM-8 MUSIC MIXER WITH BT/USB/MP3

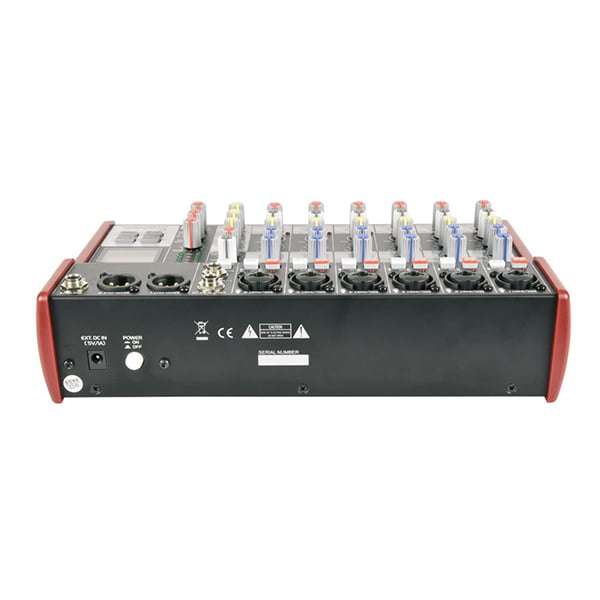

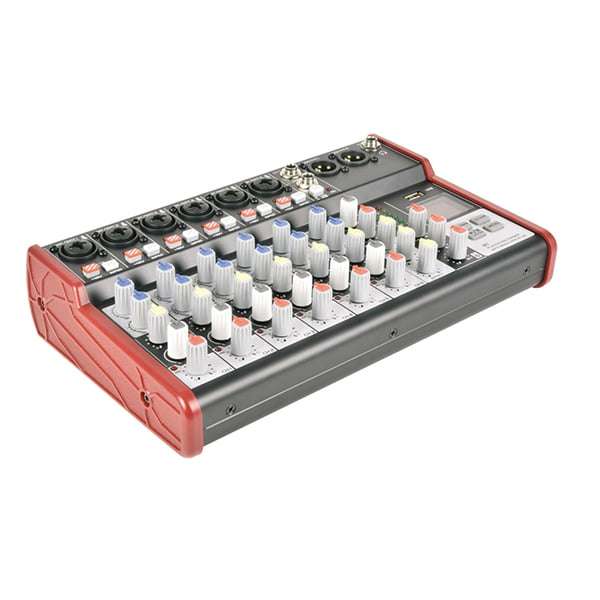

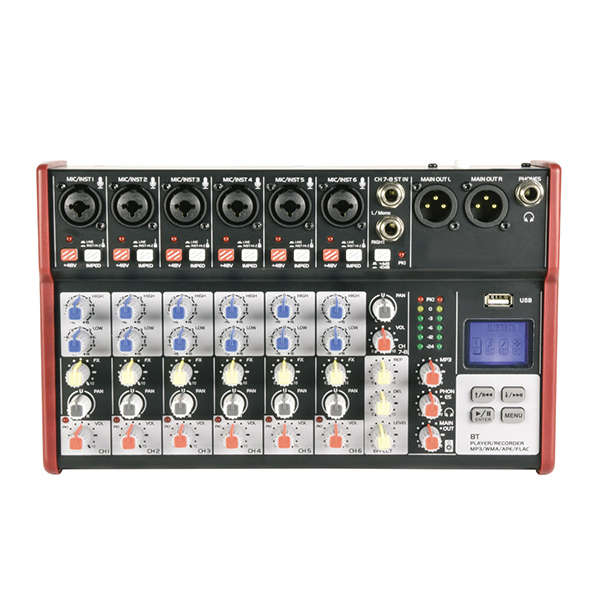

Compact format audio mixer with 2, 4 or 6 mono input channels and a stereo line input. Each mono channel has a combo XLR/jack input with individually switchable mic/instrument impedance and +48V phantom power for the XLR. Input channels have High/Low EQ and Pan controls and mono channels also have Effects level to vary the amount of internal digital delay effect added for vocals or instruments. An internal player/recorder with backlit display can accept a USB memory stick containing compressed audio files in various formats or alternatively connect to a smart phone via BT wireless link. Output is delivered on a pair of balanced XLR connectors and offers very low noise operation for high quality studio or live performances.

Inputs: 2 x combo XLR/jack + stereo jack

Dimensions: 166 x 165 x 66mm

Power supply: 5Vdc 1A (adaptor included)

Power consumption: max.5W

Gain: -14 to +40dB

EQ: low: ±15dB @ 80Hz

EQ: high: ±15dB @ 12kHz

Phantom power: +48V individually switchable (XLR inputs only)

Input impedance : mic2k Ohms

Input impedance : instrument1M Ohms

Input impedance : line20k Ohms

Audio source: Internal USB player/recorder & BT receiver

Audio format: USB playback mp3, wma, ape, flac / record mp3 (48kHz 128kB/s)

Bluetooth version: 2.1 + EDR

Frequency response: 20Hz - 20kHz (±0.5B)

THD +N
