CITRONIC CSR-63 19IN MUSIC MIXER 9-CH DSP/BT

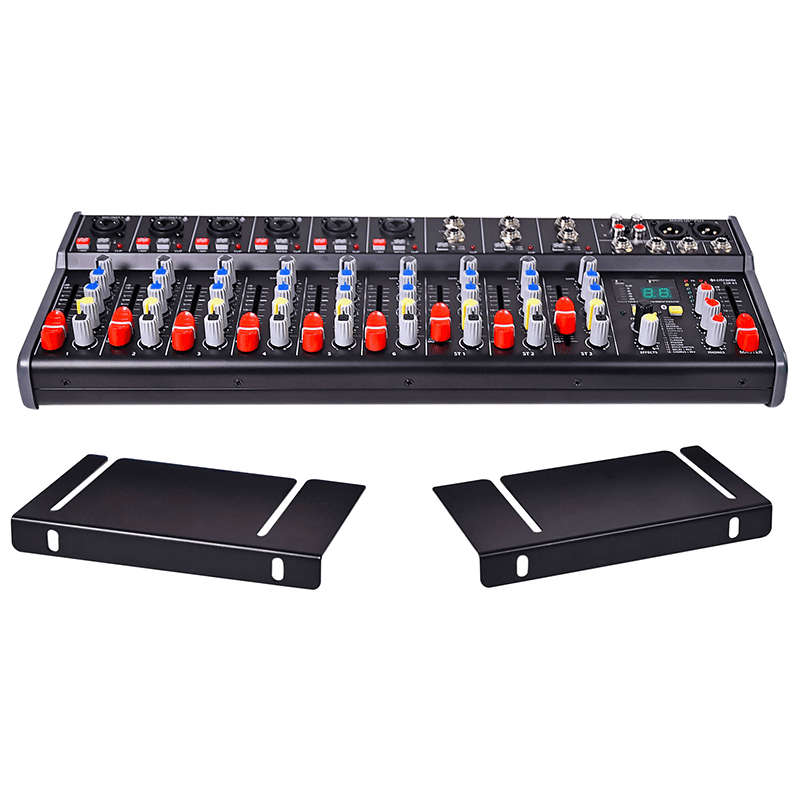

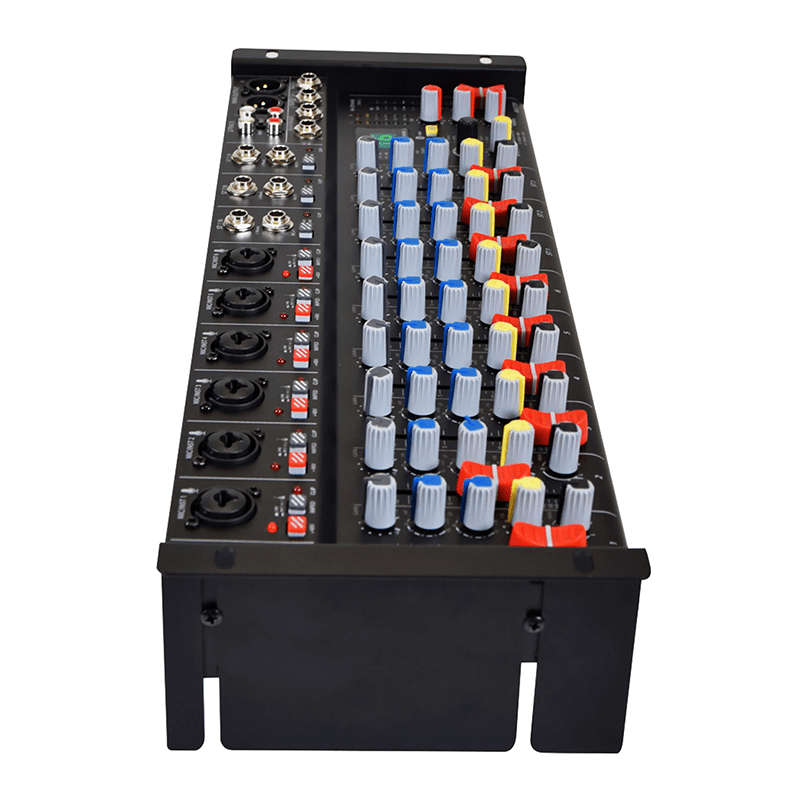

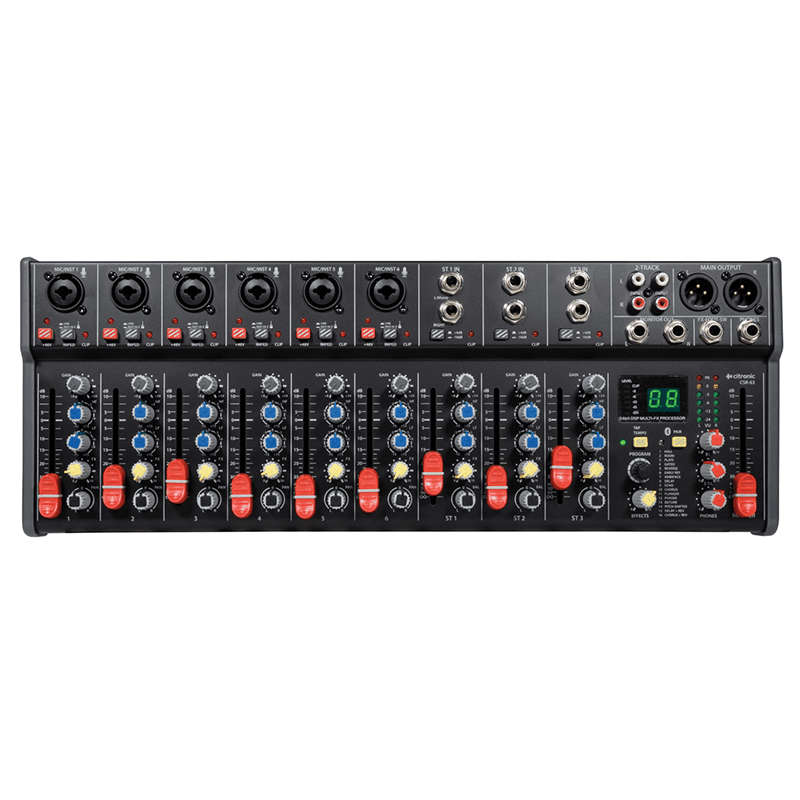

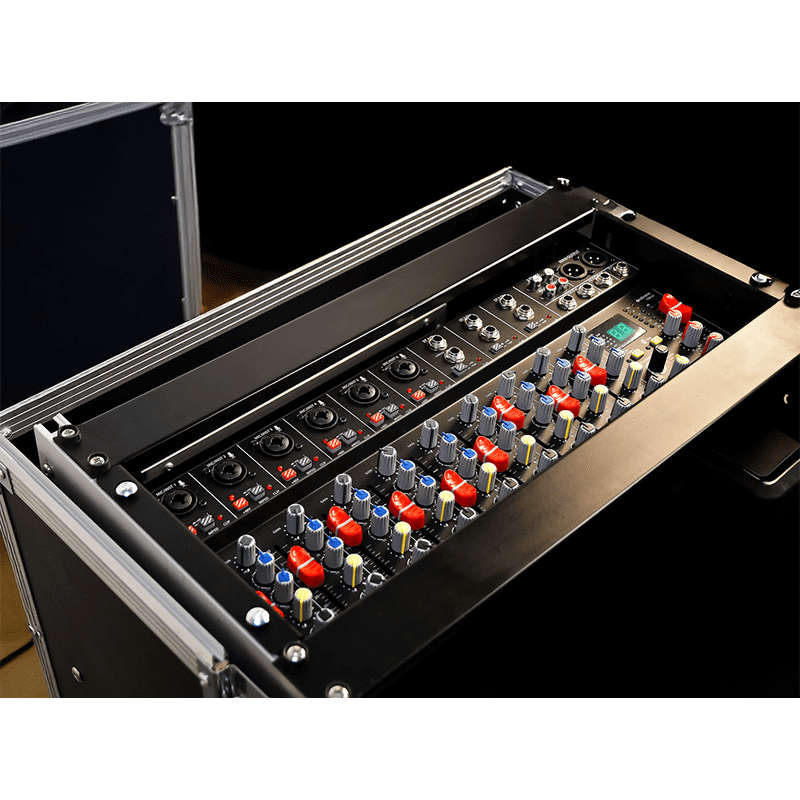

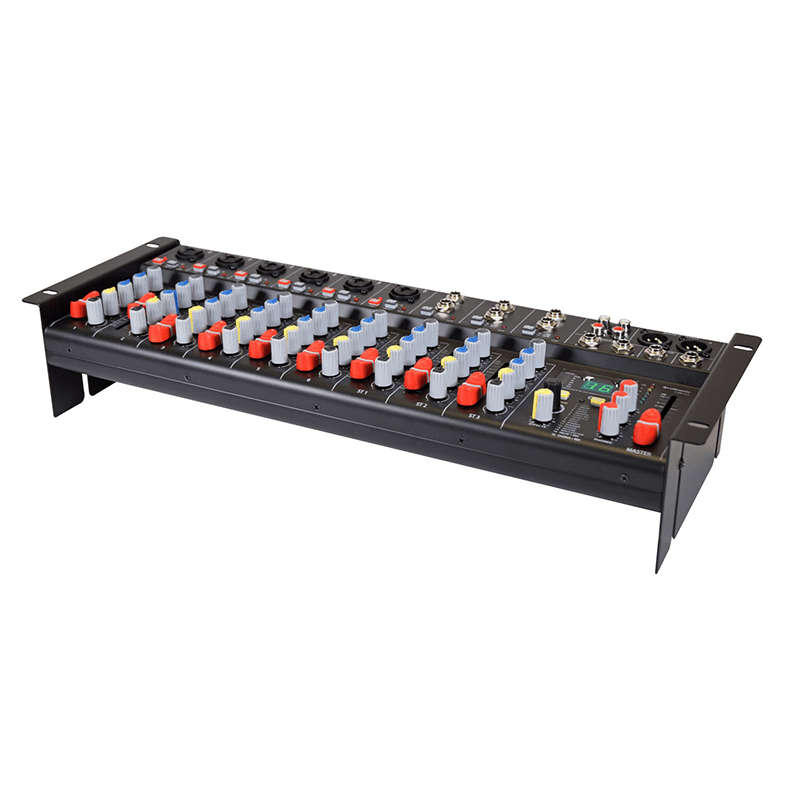

The Citronic CSR-63 rack-mountable mixing console is built to offer full-size mixer features in a slim profile format. Equipped with 6 mic/line channels and 3 stereo line channels, each has individual Gain, 2-band EQ, FX and PAN control with a 60mm Level fader. Mono channels also have individually switchable +48V phantom power and can accept a mic, line or instrument input. For live performers, a DSP effects section has 16 editable presets and can be activated remotely via a foot switch if needed. Balanced main outputs are joined by 2-track in and out, monitor out, headphones out and a Bluetooth receiver for wireless music playback. Uniquely designed end panels are supplied to enable installation into a 19" rack or left off for free-standing operation. When rack-mounted, the CSR-63 occupies a little less than 4U height, allowing space to feed cables through the rear of the rack frame from the top-mounted connectors. The end panels also have adjustable depth fixing, enabling controls to stand proud of the rack for easy access or deeper behind the frame for protection. Unlike most rack mixers, this mixer has a shallow housing depth to allow back-to-back mounting with other equipment in racks with rear mounting strips. Overall, the CSR-63 can find its home in numerous different audio setups and provides a problem-solver for both installed and mobile PA systems.

Power supply: 5Vdc, 1A (adaptor included)

Output: Left + Right balanced XLR

Effects: 16 program DSP (24-bit sigma-delta, 40kHz)

Power consumption max: 10W

Inputs: 6 x combo XLR/jack + 3 x L(mono)+R jack

EQ: low: ±15dB @ 80Hz

EQ: high: ±15dB @ 12kHz

Phantom power: +48V individually switchable (XLR inputs only)

Input impedance : mic: 2k Ohms

Input impedance : instrument: 1M Ohms

Input impedance : line: 20k Ohms

Audio source: Bluetooth receiver

Frequency response: 20Hz - 20kHz (±0.5B)

THD +N: <0.03% @ 1kHz

Dynamic range: 102dB

Crosstalk : stereo: 92dB

Output impedance: 120 Ohms

Max. output level3: Vrms

Dimensions: 482 x 160 x 90mm

Weight: 2.745kg
