CITRONIC D4200 1U POWER AMPLIFIER 4X 200W

Quad digital power amplifier in a lightweight 1U rack-mountable format. An energy-efficient switch-mode power section and class-D amplifiication circuit delivers accurate power-on-demand to four independent speaker outputs. Proprietary cool guide technology provides stable temperature management for dependable operation. Each pair of output channels can be separately parallel switched or bridged as a full or part stereo amplifier configuration. For channel A, there is a switchable 120Hz low-pass filter for use with subwoofers and a channels C and D have a switchable stereo pair of 120Hz high pass filters to effectively focus power in full-range cabs operating as mid-tops in conjunction with sub-woofers. For permanent or mobile installations, the D-series offers an invaluable and flexible problem solver for audio designers and sound engineers.

Output : rms @ 4 Ohms: 4 x 200W

Output : rms @ 8 Ohms: 4 x 100W

Bridge power @ 8 Ohms: 2 x 400W (both pairs of channels bridged)

Weight: 4.393kg

Power supply: 220-240Vac, 50/60Hz (IEC)

Modes: 2 x Stereo, Parallel (mono), Bridge (mono)

Input sensitivity: 0dB = 0.775Vrms

Crossover: Input A 120Hz LPF and C+D 120Hz HPF (all switchable)

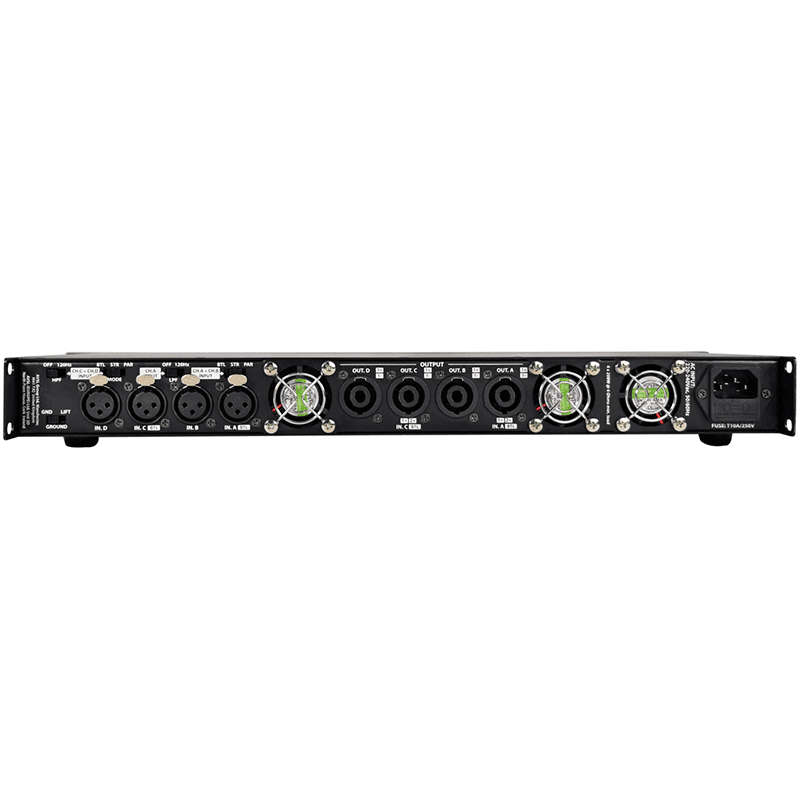

Input connections: 4 x XLR female

Sound output: 4 x SPK connectors

Dimensions: 482 x 248 x 44mm (without feet)
