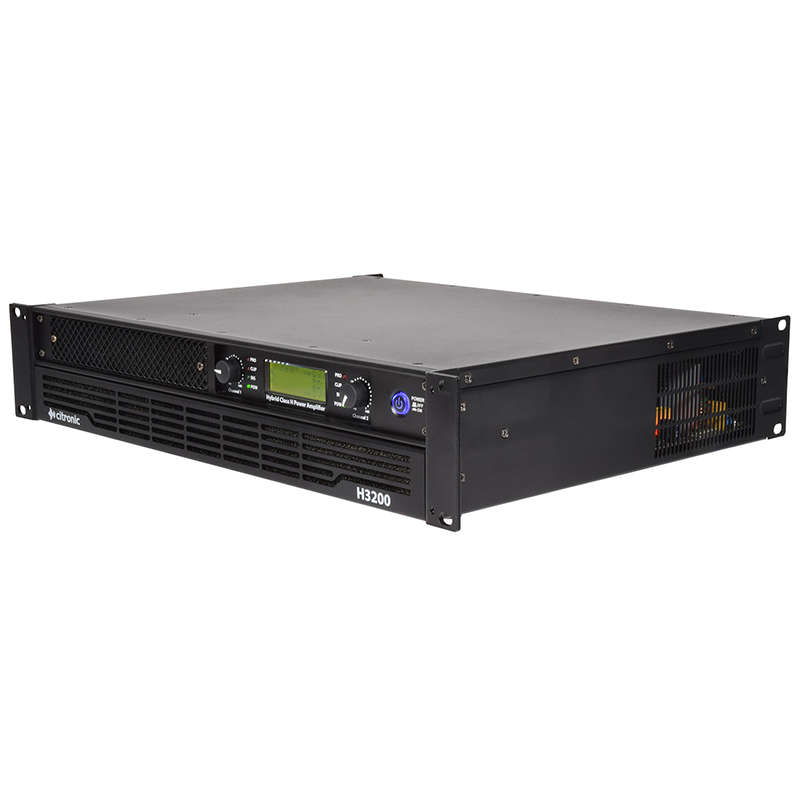

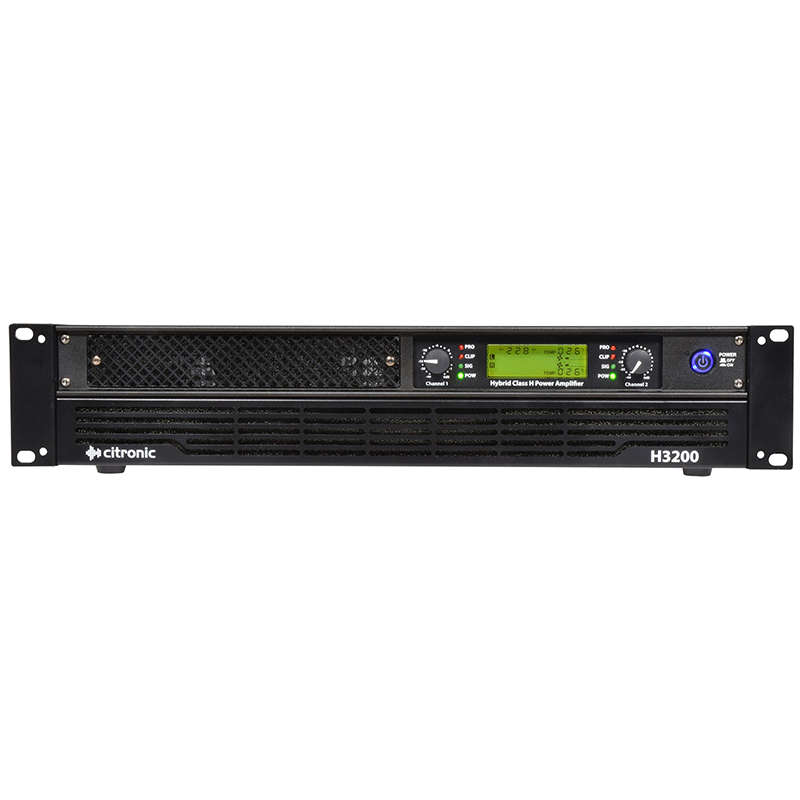

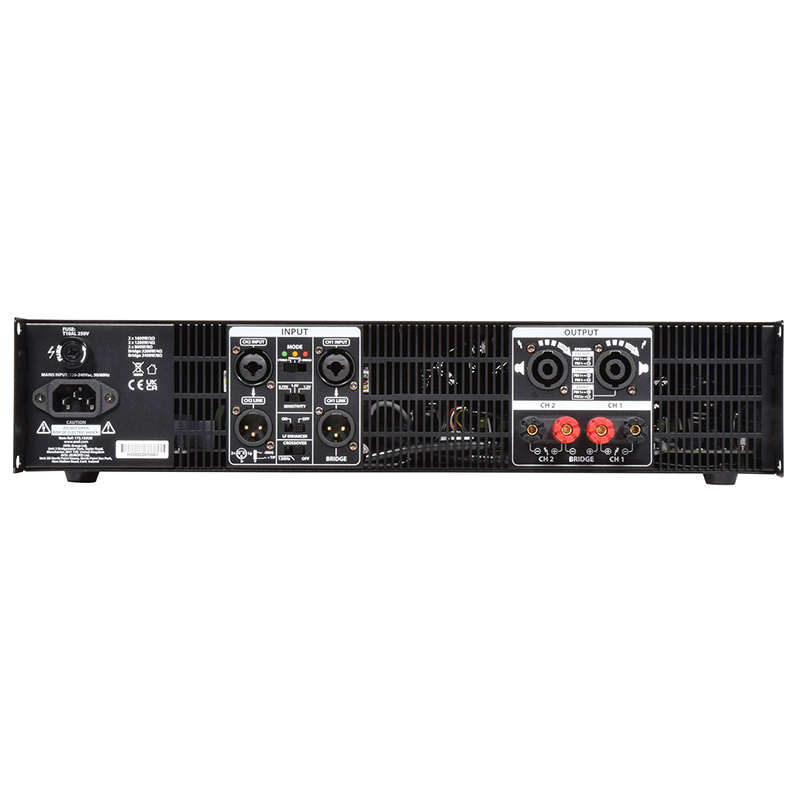

CITRONIC H3200 2U POWER AMPLIFIER 2X 1600W

Lightweight power amplifiers in a 19" rack-mountable housing for generating high sound pressure levels in medium to large sound reinforcement systems. H-series amplifiers employ a new hybrid class-H architecture, which combines the streamlined efficiency of a digitally controlled power section design with the power delivery and stability of a professional class-H output stage. Comprehensive internal protection monitors any thermal or overload conditions, automatically mutes at power on/off and provides active inrush limiting. A digital display continually shows the supply voltage, internal temperature and output level. A fully balanced signal path has 3 switchable input sensitivity levels to match different audio sources and the amplifier section can be set to operate in Stereo, Parallel or Bridge modes. A switchable 120Hz low-pass filter can be selected for use with subwoofers, avoiding the need for a separate crossover and saving additional expense and rack space. Speaker outputs can be connected using 1 or 2 Speakon leads as required. H-series amplifiers provide immediate and dynamic power on demand for sound contractors and PA installers that need dependable service with optimum sound quality.

Power supply: 200-240Vac, 50Hz (IEC)

Amplifier : construction: Hybrid Class-H

Protection: Short/open circuit, thermal, RF, DC fault, on/off mute, active inrush Iimiting

Frequency response: 20Hz-20KHz ±0.5dB

THD+N: 0.2%

S/N ratio: -95dB

Damping factor: >700

Input sensitivity: 1.0V - 1.4V - 2.0V switchable

Input impedance: 20K? (balanced),10K? (unbalanced)

Dimensions: 483 x 361 x 44 mm (1U)

FuseT8AL : 250V

Power rms @ 8 Ohms: 2 x 800W

Power rms @ 4 Ohms: 2 x 1200W

Power rms @ 2 Ohms: 2 x 1600W (40ms burst 1kHz sine)

Power rms bridge @ 8 Ohms: 1240W

Power rms bridge @ 4 Ohms: 3200W (40ms burst 1kHz sine)

Weight: 8.9kg
