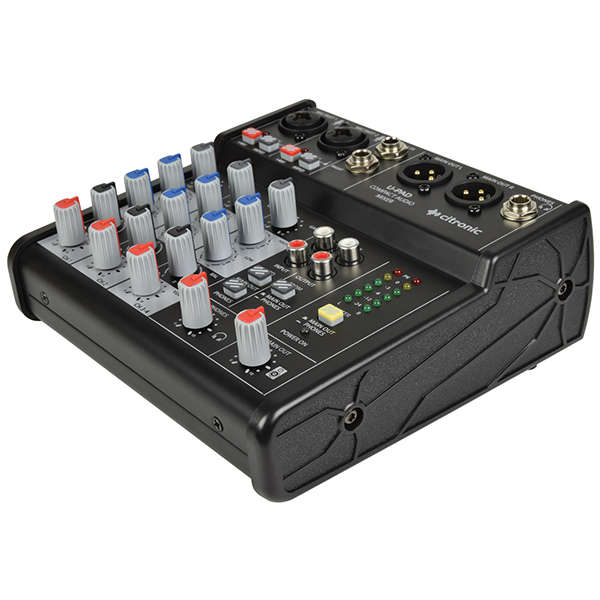

CITRONIC - QTX - U-PAD COMPACT MUSIC MIXER USB INTERFACE

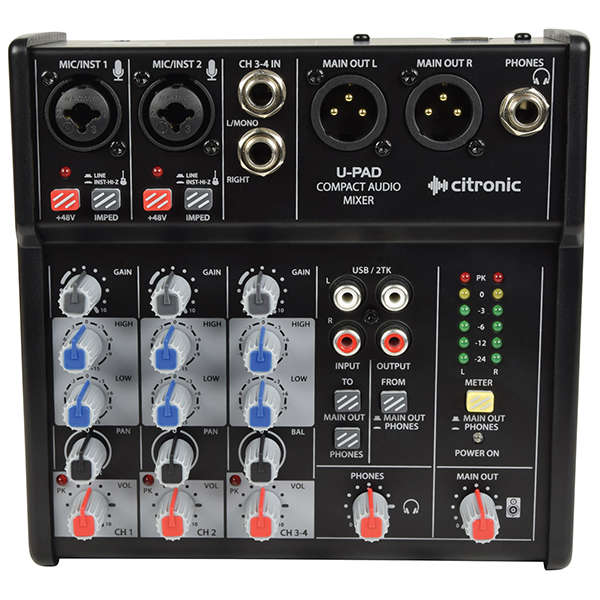

Compact audio mixer with 2 mono inputs and a stereo line input. Both mono channels have a combo XLR/jack input with individually switchable mic/instrument impedance and +48V phantom power for the XLR connector. High/Low EQ and Pan controls are present on all mono and stereo input channels and a digital input from USB can be routed to main output or phones for monitoring. Analogue output is delivered on a pair of balanced XLR connectors and digitally to the USB for recording. When powered from a laptop USB port, the U-PAD offers high quality recording capability in any environment, even on location.

Power supply: 5.5Vdc (USB)

Gain: -14 to +40dB

EQ: low: ±15dB @ 80Hz

EQ: high: ±15dB @ 12kHz

Phantom power: +48V individually switchable (XLR inputs only)

Input impedance : mic: 2k Ohms

Input impedance : instrument: 1M Ohms

Input impedance : line: 20k Ohms

Frequency response: 20Hz - 20kHz (±0.5B)

USB computer interface: Duplex stereo in/out AD/DA

Sampling format: 24-bit, 96kHz max

THD: +N
