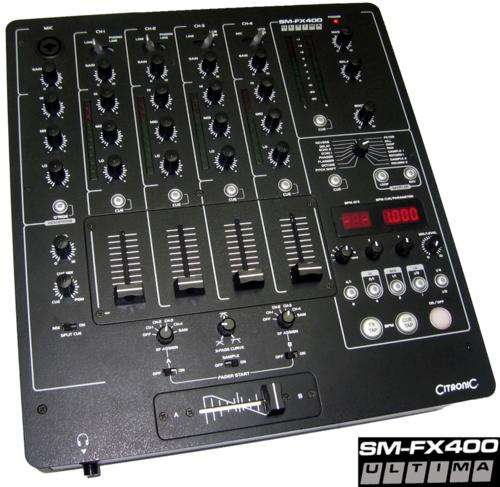

Citronic SM-FX400 12" USB Mixer

SM-FX400 ULTIMA DIGITAL USB MIXER

The SM-FX400 Ultima is a stylish 4-Channel DJ mixer, offering USB inputs, and an advanced DSP effect unit with on-board sampler. A robust design with user replaceable faders, the SM-FX400 is ideal for Mobile, pub and Club installations. The SM-FX400 Ultima has 2 microphone inputs, one of which is controlled with the dedicated Mic channel and one assigned to the 4th channel as an extra option. Mic 1 has a 3-band EQ and Mic override system. Each of the 4 music channels has an individual gain control and 3-band EQ offering +12dB of Boost and 36dB offering Total Kill. Each of the music channels are fully assignable to the optical crossfader on either side A or B. The unit has an on-board digital effects processor offering 12 effects and 2 sampler banks. The effects can be assigned to each of the music channels, mic channel, crossfade A and B and master output. The effects cue allows for the effect to be heard pre-fade, this allows for minor adjustments to be made before making it live. The dual sampler has a loop and reverse function and can be assigned to either side of the crossfade, the sampler can also be set to trigger from the crossfade. The effects bank consists of: Reverb, Delay, Echo 1, Echo 2, Phaser, Flanger, Detune, Pitch Shift, Filter, Kill, Chop, and Pan.

• 4 Channel 11 Input + 2 selectable DJ Mixer
• Dual USB inputs
• Built in Digital Effect Processor
• Sampler with Crossfade Trigger Assign
• Beat Syncronised Effects
• Easy Glide Optical Crossfader
• Individual Gain Controls per Channel
• 3-Band EQ on all Music Channels +12dB Boost -36dB KILL
• 10-bar LED Monitor per Channel
• Master Mic Input with Gain Control and 3 band EQ +/-10dB
• Manual or Auto BPM Engine for Cue and Effects
• Mic Override Button
• User Replaceable Channel Faders
• Fully Assignable Crossfade with Fader Start
• Headphone Mix and Split Cue Facility
• Digital Output
• Record Output
• Balanced XLR Master Output
• Auxillary Mic on Music Channel 4
• Master Balance Control
• Master Cue Select
• 10-bar LED Master Output Monitor
