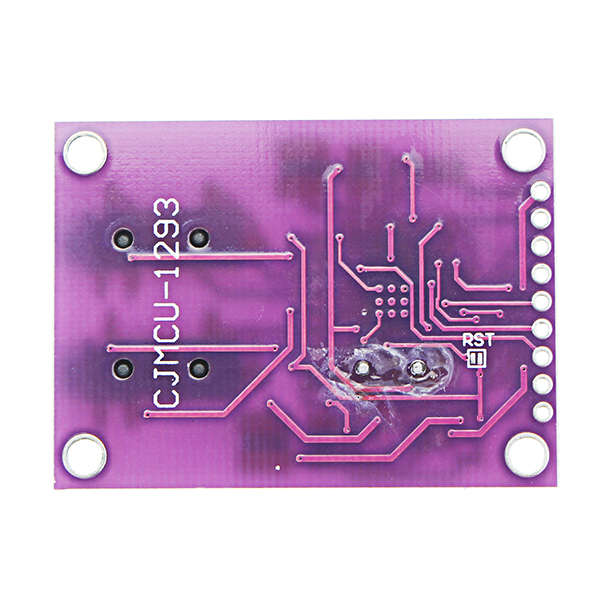

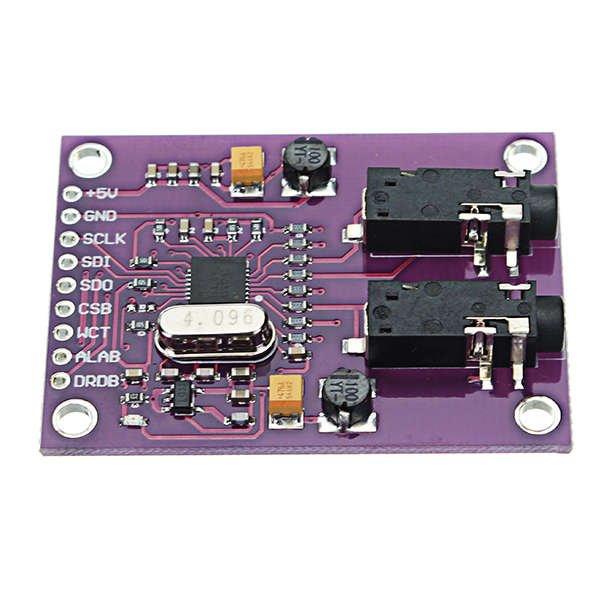

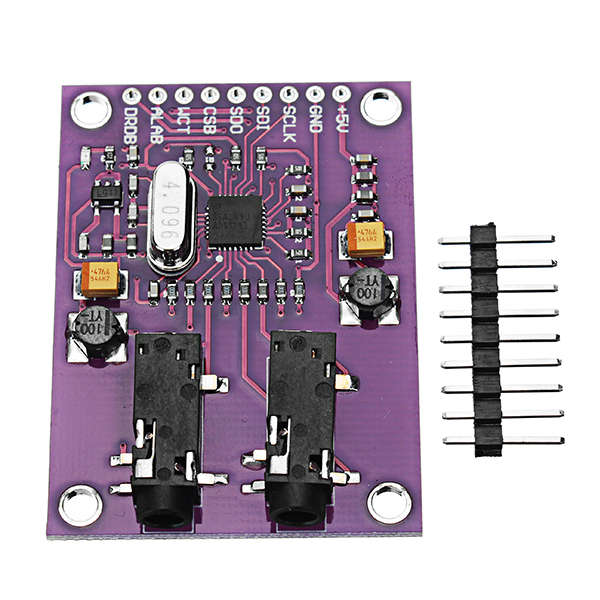

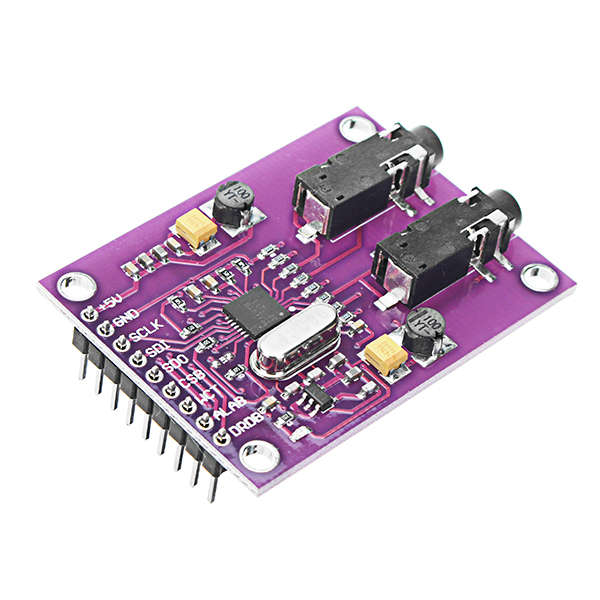

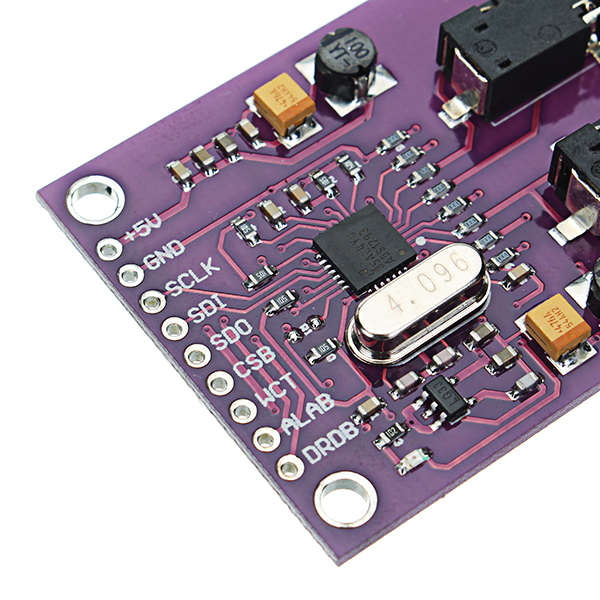

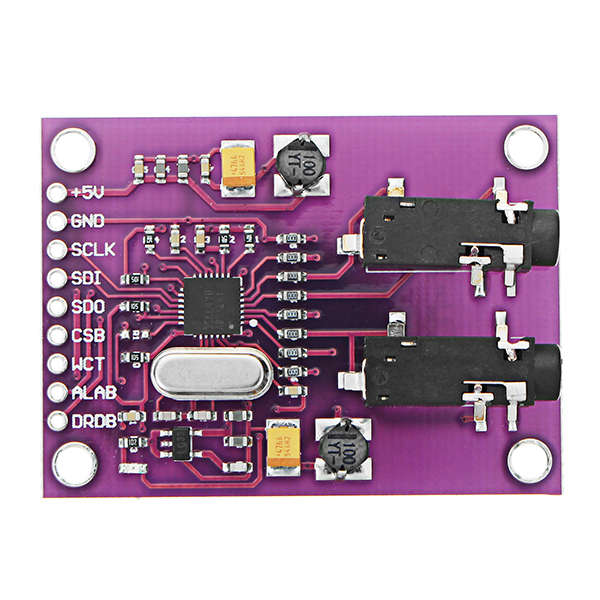

CJMCU-1293 ADS1293 Electrocardiogram (ECG) Physiological Signal Measurement Module 3 Channel 24 Bit CJMCU-1293 ADS1293 Electrocardiogram (ECG) Physiological Signal Measurement Module 3 Channel 24 Bit
CJMCU-1293 ADS1293 Electrocardiogram (ECG) Physiological Signal Measurement Module 3 Channel 24 Bit CJMCU-1293 ADS1293 Electrocardiogram (ECG) Physiological Signal Measurement Module 3 Channel 24 Bit

CJMCU-1293 ADS1293 Electrocardiogram (ECG) Physiological Signal Measurement Module 3 Channel 24 Bit

20 available / new
R933.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Returns
Replacement Guarantee: 7 Days: We stand by this guarantee
Get it now, pay later

Product details

Condition
New
Location
International
Bob Shop ID
641120228
Characteristic: Three high-resolution digital ECG channels with synchronized pacing output Anti-electromagnetic interference (EMI) input Low power consumption: 0.3mW per channel Input incoming noise: 7uVpp (40Hz bandwidth) Input bias current: 175pA Data rate: up to 25.6ksps Differential input voltage range: ± 400mV Analog supply voltage: 2.7 ~ 5.5V Digital input / output (I / O) Supply voltage: 1.65V ~ 3.6V Right leg drive amplifier AC and DC lead disconnection detection Wilson and Goldberger terminals ALARMB pin for interrupt-driven diagnostics Battery voltage monitoring Built-in oscillator and reference Flexible power-off and standby mode Application: Portable 1/2/3/5/6/7/8/12 Lead ECG Patient vital signs monitoring: Holter, events, stress and telemedicine.

Package included:

1 xCJMCU-1293 ADS1293 Electrocardiogram (ECG) Physiological Signal Measurement
