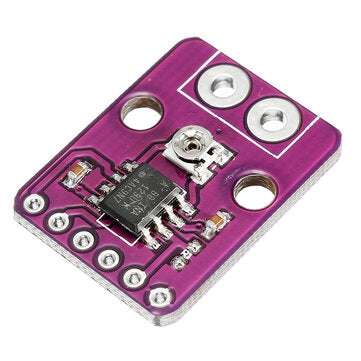

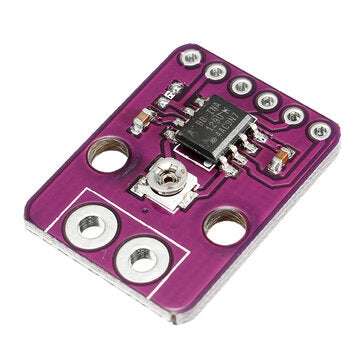

CJMCU-29 INA129-HT High Precision Low Power Instrumentation Amplifier Module

20 available / new

R399.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3526

93.42 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

643376210

Product Description:

The INA128-HT and INA129-HT are low-power, general-purpose instrumentation amplifiers offering excellent accuracy.
The versatile three-operational-amplifier design and small size make them ideal for a wide range of applications.
Current-feedback input circuitry provides wide bandwidth even at high gain. A single external resistor sets any gain from 1 to 10000.
The INA128-HT provides an industry-standard gain equation; the INA129-HT gain equation is compatible with the AD620.
The INA128-HT and INA129-HT are laser trimmed for very low offset voltage (25 V Typ) and high common-mode rejection (93 dB at G a 100).
These devices operate with power supplies as low as &pm;2.25 V, and quiescent current of 2 mA, typically.
Internal input protection can withstand up to &pm;40 V without damage.
Texas Instruments' high-temperature products use highly optimized silicon (die) solutions with design and process
enhancements to maximize performance over extended temperatures.
The INA129-HT is available in 8-pin ceramic DIP and 8-pin ceramic surface-mount packages,
specified for the a55ﾣC to 210ﾣC temperature range. The INA128-HT is available in an 8-pin SOIC-8 surface-mount package,
specified for the a55ﾣC to 175ﾣC temperature range.

Package included:

1 x CJMCU-29 INA129-HT High Precision Low Power Instrumentation Amplifier Module
