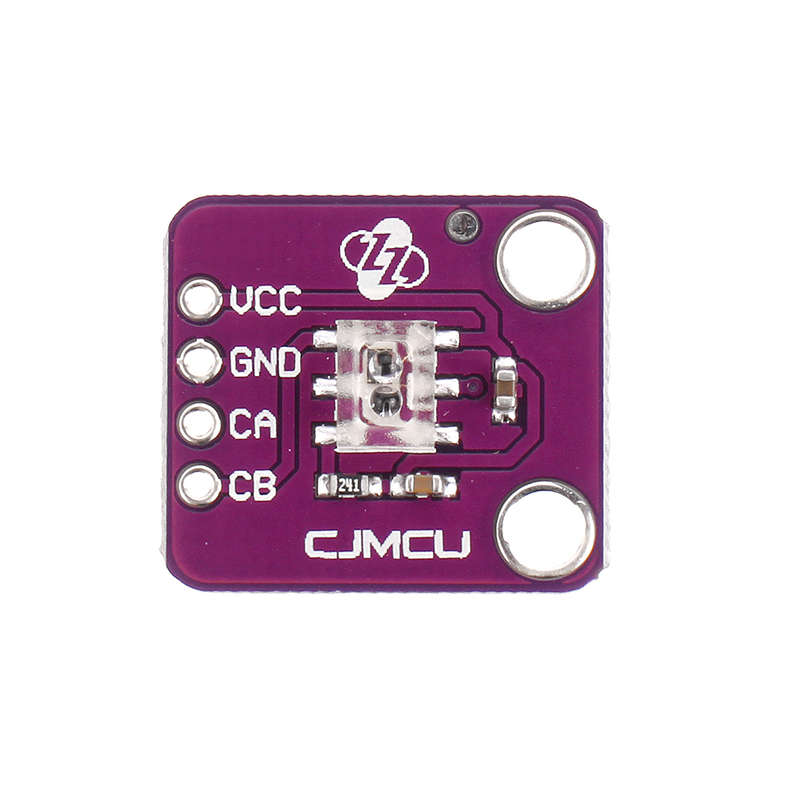

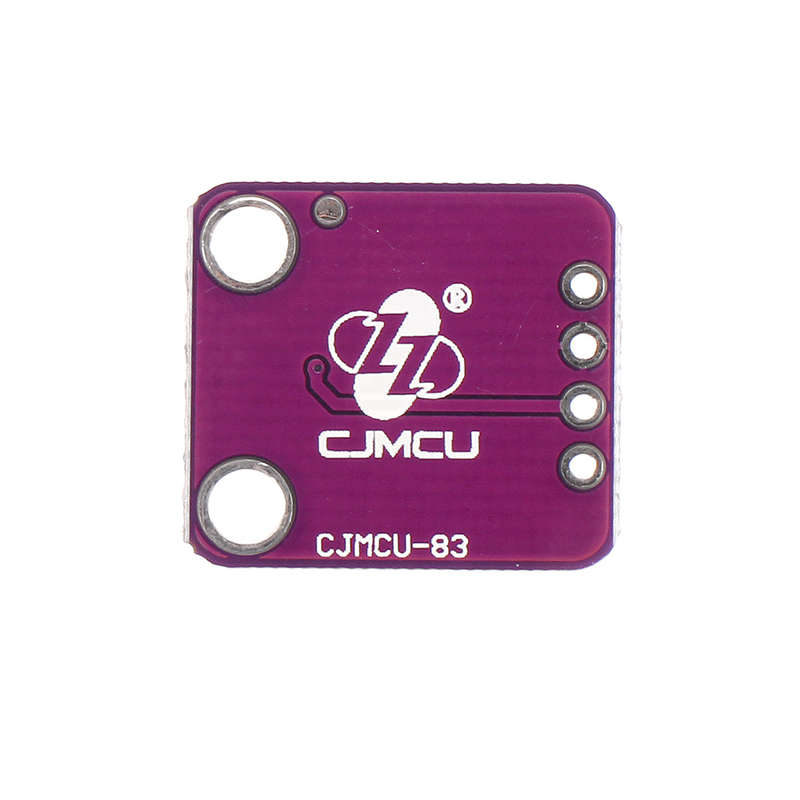

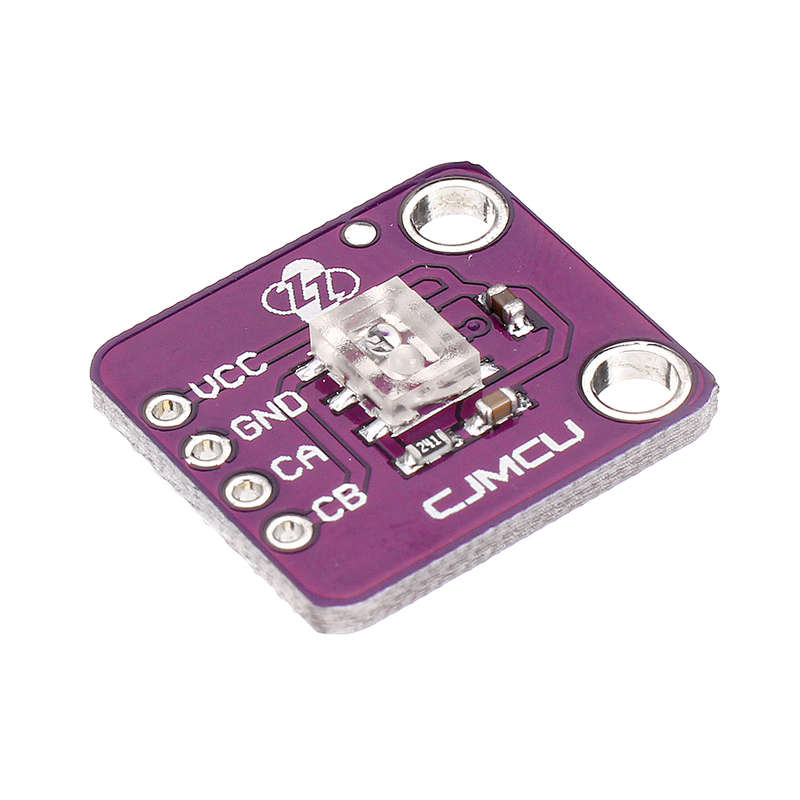

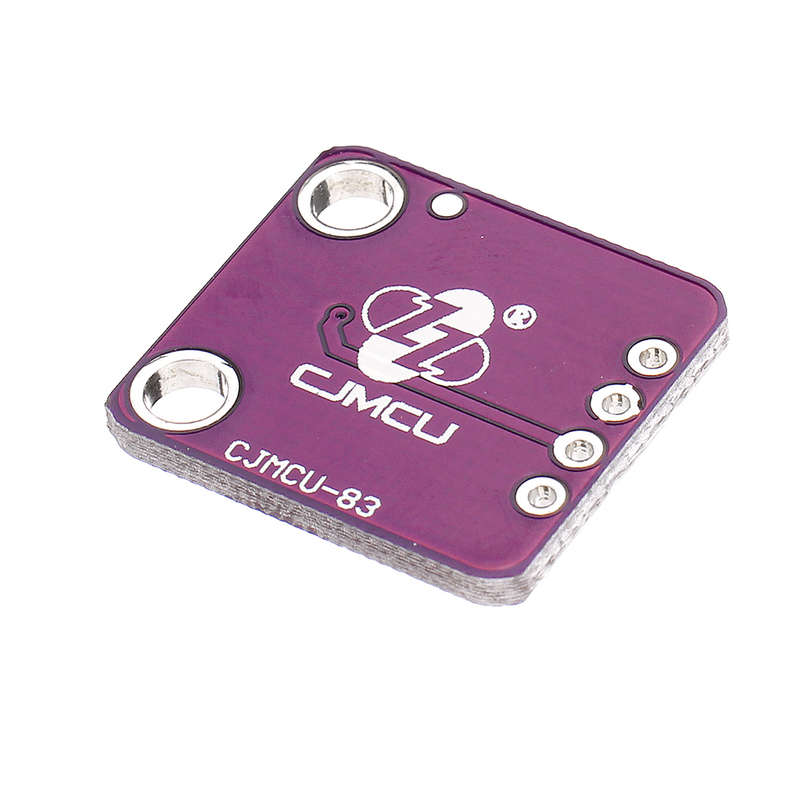

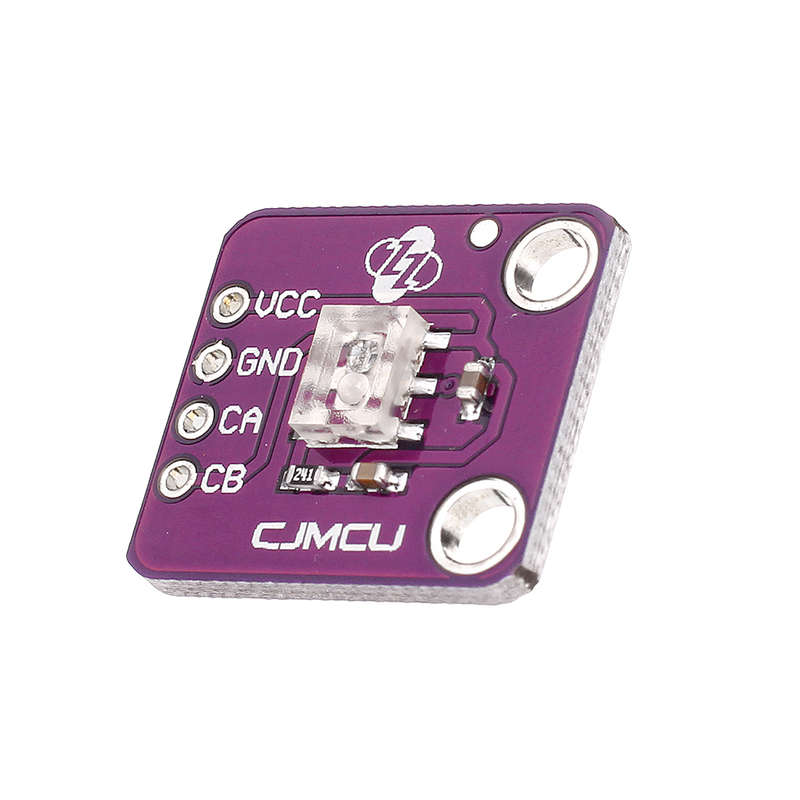

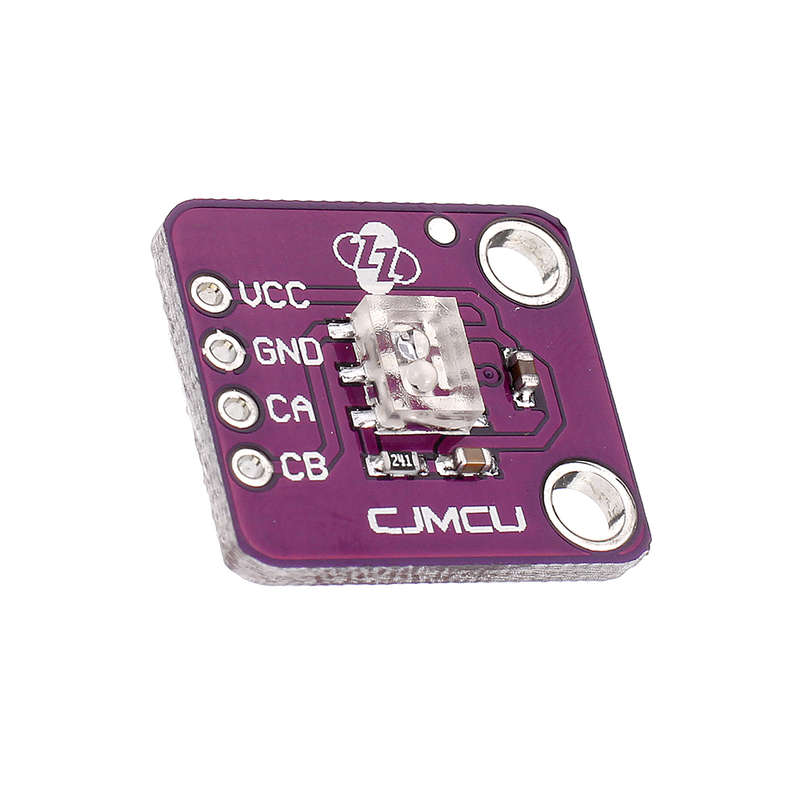

CJMCU-83 AEDR-8300 Reflective Optical Encoder Module Two Channel Encoder Winder Output TTL Compatibl

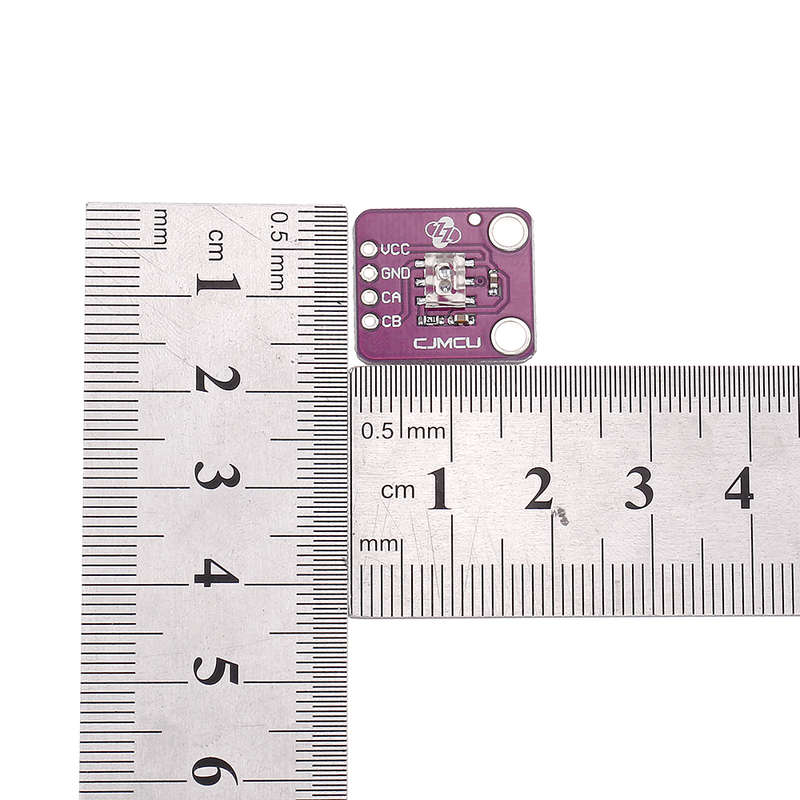

Feature: The AEDR-8300 is currently the smallest optical encoder product for motion control applications using reflective technology. When used with a code wheel or linear bar, it can convert rotary or linear motion into a digital output. It consists of an LED illumination source, a detection IC with a photodiode, and a lens. The AEDR-8300 Series can output TTL level compatible quadrature signals, so it can interface directly with most signal processing circuits. Specification: - Reflective technology - Surface mount small outline Leadless package - Single channel incremental output - Two channel quadrature for for Direction sensing - TTL compatible output - Single 5V supply - -20ﾣC to 85ﾣC absolute operating Temperature - Encoding resolution options: 36, 75, 150, 180 (lines / inch) or1.42, 2.95, 5.91, 7.09 (lines / mm) Parameters: Module supply voltage: DC4.5V-5.5V Working environment temperature: 0 ﾣC ~ 85 ﾣC Maximum counting frequency: 15KHz Counting frequency = speed (r/m) * N / 60 Module size: 18.5mm*16.4mm*3.45mm with two M3 mounting holes

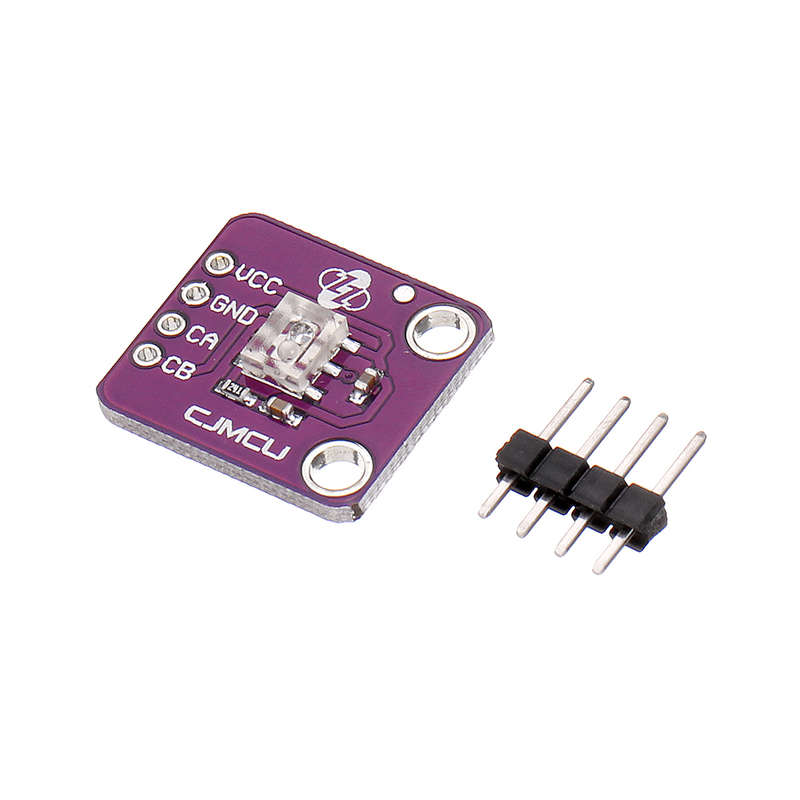

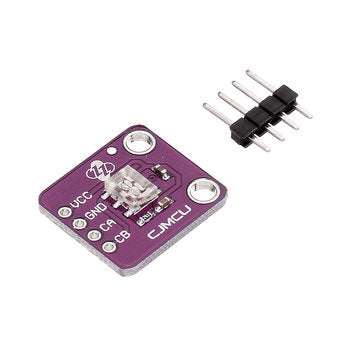

Package includes:

1 x Sensor Module
