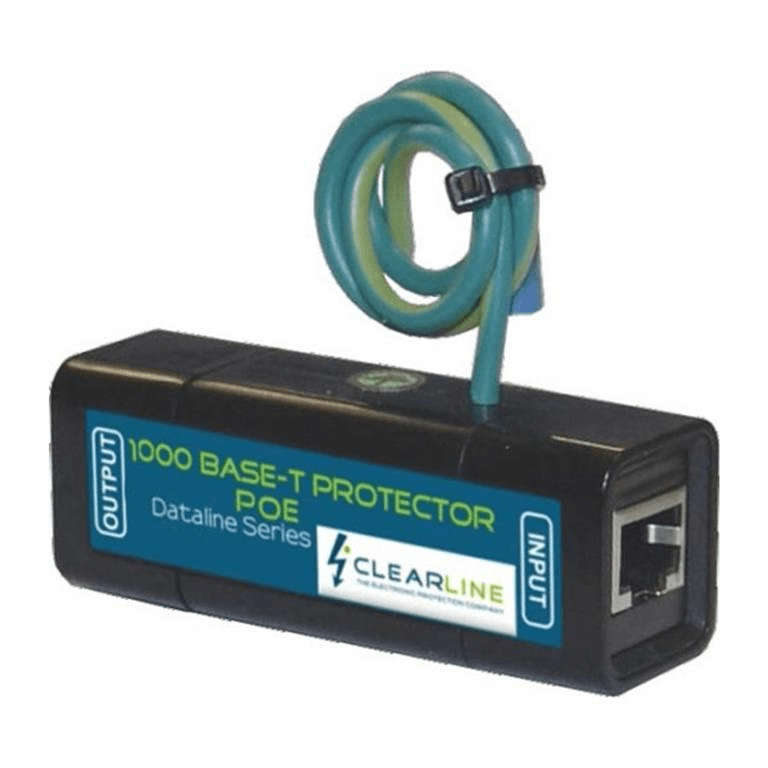

Clearline 1-port Gigabit PoE In-line Protector 12-00974
Gigabit Fast Ethernet Inline Protector Power over Ethernet - POE
Protects fast gigabit ethernet LAN equipment such as hubs, switches and network interface cards from induced lightning and electrostatic discharge. The devise is designed for indoor or outdoor use, inside a weatherproof enclosure.
Features
- Power over Ethernet (POE)
- All 8 lines protected
- Each pair supports 250 Mbits/s
- Negligible insertion loss
- Compatible to 100Base-T and 1000Base-T
- Compliant to IEEE 802.3u and IEEE 802.3 ab/af
Technical Specification
Max. Discharge Current (Fine Protection): 40A (8/20)
Max. Discharge Current (Coarse Protection): 2kA (8/20)
Residual Voltage - Data Lines: <5V
Residual Voltage - POE Lines: <60V
Pairs Protected: 1-2, 3-6, 5-4, 7-8
Test frequencies in MHz: 100
Data Speed Supported: 250 Mbits/s
Bandwidth (3 dB) Per Pair: >350MHz
