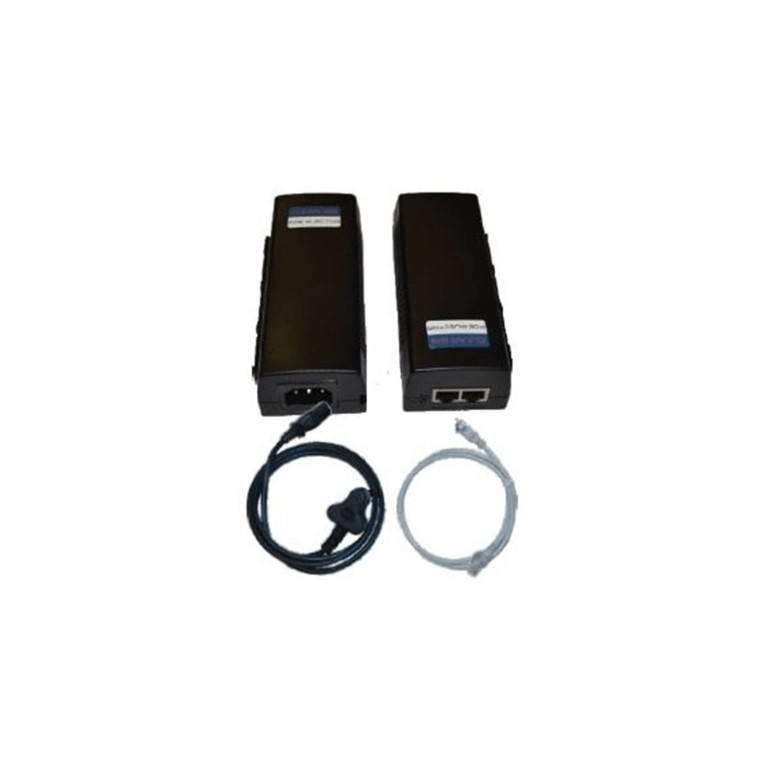

Clearline 48VDC 0.8A Gigabit PoE+ Injector 12-00720
Protects fast ethernet LAN and POE equipment such as hubs, switches and network interface cards from induced lightning and electrostatic discharge.
Compatible with most gigabit IP camera, IP phone, Wireless IP point and other POE devices. (NOTE: NOT COMPATIBLE WITH UBIQUITI)
Features
- Automatically supplies a PoE+ (30 Watts) or PoE (15 Watts) connection to the device.
- Support Gigabit network (1000Base-T)
- Plug-and-Play: No configuration required
- Short Circuit, Over Current and Over Voltage Full Protection
- Reduce installation and network equipment costs
Applications: LAN equipment, POE equipment, telecomms
Technical Specification
Nom. Input Voltage: 230VAC 50Hz
Output Voltage: 48V DC
Output Current: 800mA
Max. Discharge Current: 2.5kA L-N, L-E, N-E (8/20us)
Residual Voltage: <900V
Response Time: <25ns
Hi-Pot (Pri to Sec) isolation: 1500 Vrms, 1 mA, 60 seconds
Technology Supported: Cat5e
Data Speed Supported: 1000 MBit/s
Pairs Protected (Data): 1-2, 3-6, 4-5, 7-8
Pairs Protected (POE+): 1-2, 3-6, 4-5, 7-8
Indication: LED
Standard Compliance: IEC 164-1, 61643-1, IEEE 802.3u/ab/af/at
