Product details

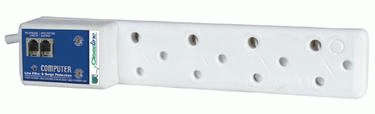

Low Cost Protected Power Strip with Modem Protection
Technical Data
* Type: 301824 COMPUTER SYSTEM PROTECTOR
* Name: low cost protected power strip with modem protection
* 4 x Power sockets
* 1 x RJ11 Telephone socket
Features
* Plug-and-Play Concept
* High Surge Capability
* Fire Hazard Protection
* Protection Indication Lamps
* Line Filtration
Specifications
* Power Module
* Max Cont. Voltage: 250V 50Hz
* Max Cont. Current: 16A (Thermal Overload Protected)
* Leakage Current: and lt;1.0mA
* Max Discharge Current at ismax (8/20): 8kA, L-N, L-E, N-E
* Response Time: and lt;25ns
* Filtration: 20dB
* Modem Module
* Max Discharge Current ismax: 10kA (8/20) - (Excl. RJ11 Connectors)
* Residual Voltage at 10kA (8/20) Common Mode: Approx. 200V
* Residual Voltage at 10kA (8/20) Differential Mode: Approx. 200V
* Data Speed: 100 kbits/sec
PRODUCT WARRANTY
All Clearline protection products carry a two-year warranty against defective material and workmanship and learline will either repair or replace any defective unit during this period. Clearline will also repair or replace any protector that has suffered damage as a result of a lightning strike or line over voltage condition. This warranty is only valid provided that the protection device has not been opened, modified or tampered with in any way.
CONNECTED EQUIPMENT WARRANTY
A selected range of Clearline surge protectors are warranted to protect your equipment from lightning and over voltage conditions. Clearline will replace or pay to repair equipment that is damaged by surges (including lightning)on either AC power cables, telephone line or TV/DSTV cables while connected to a properly installed Clearline surge protector, if the Clearline surge protector shows any signs of damage or was not operating outside of designed specifications. Only plug-and-play type protectors and protection systems that do not require any additional wiring carry the Connected Equipment Warranty. The warranty does not apply to any system or equipment that requires more than one surge protector to protect all its connected lines. For example,
systems like computer networks and PABX’s are not covered. Contact Clearline for a list of protectors that carry the Connected Equipment Warranty.
The warranty is subject to the following conditions: Click here.
