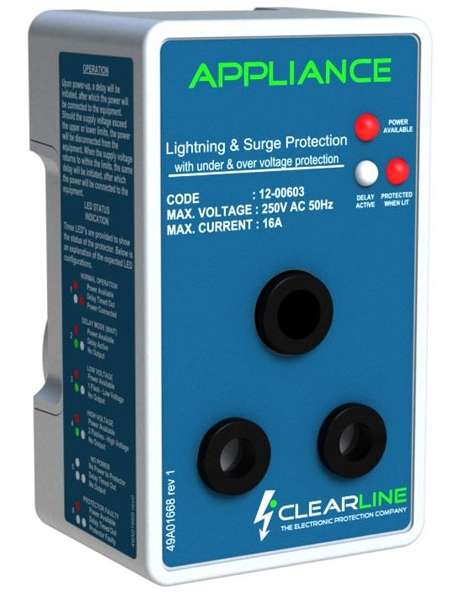

Clearline appliance tripconnect lightning strike & surge protector - 10 sec

Appliance Tripconnect The power line series 12-00603 - Economical protection - Status monitoring - Automatic operation - Reduces in rush current - Built-in delay There are many instances in areas where the quality of supply is unpredictable. Even when UPS equipment is installed, large fluctuations in supply voltage can damage electronic equipment. Power protection devices used at home, office and work-place such as surge suppressors and stabilizers provide protection against power spikes that happens in milliseconds, mainly caused by lightning. The tripconnect prevents damage from power surges and dips (brownouts) caused by power shutdowns and over- and under-voltages from unstable power. The duration of these conditions is normally longer and can be especially damaging to air conditioners, electric motors, etc., running under load, and expensive electronic equipment. The trip connect unit will simply remove power from the equipment in the event of over or under voltage conditions and automatically restore power when the supply falls below acceptable limits. Surge protection and status monitoring has been included. The single phase unit is simply inserted between the wall socket and the equipment power plug. Zero voltage switch-on has been included for smooth rev_2 Features: Dimension: 60 mm 100 mm 50 mm 84 mm Specification: Power Max load current Low voltage trip limit Low voltage connect High voltage trip limit High voltage connect No of cycles to trip Max discharge current Ismax (8/20) Residual voltage @ Ismax (Up) Response time Indication LED Delay time Standards compliance Nom. input voltage 16A 180V 190V 260V 250V 1-3 8kA L-N, L-E, N-E <900V <25ns Power Available, Delay Active & Protected when Lit 10 seconds IEC 99.4, ANSI C62.42 230VAC 50Hz Power Available - ON Delay Active - OFF - delay timed out Protected When LIT - OFF - Surge protector faulty, check protector Power Available - OFF - No power to Surge protector Delay Active - OFF Protected When LIT - OFF (No output) 4 Power Available - ON Delay Active - Flashes twice every 3 second - High voltage Protected When LIT - OFF (No output) Power Available - ON Delay Active - Flashes once every 3 second - Low voltage Protected When LIT - OFF (No output) Power Available - ON Delay Active - 10 second delay is activated Protected When LIT - OFF (No output) Power Available - ON Delay Active - OFF - delay timed out Protected When LIT - Normal operation. Power connected to equipment Upon power-up, a delay will be initiated, after which the power will be connected to the equipment. Should the supply voltage exceed the upper or lower limits, the power will be disconnected from the equipment. When the supply voltage returns to within the limits, the same delay will be initiated, after which the power will be connected to the equipment. Designed and Manufactured by: Clearline Protection Systems (Pty) Ltd Power Available Delay Active Protected When LITÂ' Led status Indication Status Indication Three LEDÂ's are provided to show the status of the protector. Below is an explanation of the expected LED Configurations. Normal operation Delay mode (wait) Low voltage High voltage No power Protector faulty

What's in the box
Clearline Appliance Tripconnect Lightning Strike & Surge Protector
