Clock Spring For Toyota Corolla 1.6 / 1.8, Hilux, Fortuner, Etios, Innova, Yaris – 212367

Clock Spring For Toyota Corolla 1.6 / 1.8, Hilux, Fortuner, Etios, Innova & Yaris 212367

High-quality replacement steering wheel clock spring (spiral cable) for a wide range of Toyota models including Corolla, Hilux, Fortuner, Etios, Innova and Yaris. This part restores the electrical connection between the steering wheel, airbag, horn and steering wheel controls where fitted, when the original clock spring ribbon has broken or failed.

Vehicle Compatibility

Toyota Corolla

• Toyota Corolla Saloon (_E15_) 20062025
  Engines:
  • 1.6 VVTi (ZRE141, ZRE151 1ZR-FE) 91 kW / 124 HP
  • 1.6 VVTi (ZRE141_, ZRE151_ 1ZR-FAE, 1ZR-FE) 90 kW / 122 HP
  • 1.8 (ZRE142, ZRE152 2ZR-FE) 100 kW / 136 HP

Toyota Etios

• Toyota Etios (_K1_ Hatch) 20102025
  1.5 (NGK12_ 2NR-FE) 66 kW / 90 HP
• Toyota Etios Saloon (_K1_ Sedan) 20102025
  1.5 (NGK15_ 2NR-FE) 66 kW / 90 HP

Toyota Fortuner

• Toyota Fortuner (_N5_, _N6_) 20042016
  Engines: 2.5 D-4D (KUN60 2KD-FTV), 3.0 D (KUN61 1KD-FTV), 3.0 D 4WD (KUN51 1KD-FTV), 4.0 (GGN50_, GGN60_ 1GR-FE), 4.0 4WD (GGN60 1GR-FE)
• Toyota Fortuner (_N15_, _N16_) 20152025
  Engines: 2.7 VVTi (TGN166_, TGN168_ 2TR-FE), 2.8 GD-6 (GUN166, GUN166_ 1GD-FTV) 130150 kW / 177204 HP

Toyota Hilux VII Pickup

• Toyota Hilux VII Pickup (_N1_, _N2_, _N3_) 20052016
  Engines:
  • 2.5 D-4D (KUN15, KUN10 2KD-FTV) 75 kW / 102 HP
  • 2.5 D-4D (KUN15, KUN35 2KD-FTV) 106 kW / 144 HP
  • 2.5 D-4D 4WD (KUN25 2KD-FTV) 75 kW / 102 HP
  • 2.7 VVTi (2TR-FE) 118 kW / 160 HP (4x2 & 4x4)
  • 3.0 D-4D (KUN16_, KUN36 1KD-FTV) 120 kW / 163 HP
  • 3.0 D-4D 4WD (KUN26 1KD-FTV) 120 kW / 163 HP
  • 4.0 V6 VVTi (1GR-FE) 175 kW / 238 HP (4x2 & 4x4)

Toyota Innova

• Toyota Innova I (_N4_) 20032025
  2.7 (TGN41_ 2TR-FE) 118 kW / 160 HP

Toyota Yaris

• Toyota Yaris (_P15_) 20142025
  1.5 (NCP150_, NSP151_ 1NZ-FE, 2NR-FE) 79 kW / 107 HP

The above list reflects all known compatible Toyota models for this specific clock spring SKU 212367. It is commonly used across Corolla E15, Hilux VII, Fortuner, Etios, Innova and later Yaris models.

Specifications

• SKU: 212367
• Type: Steering wheel clock spring / spiral cable
• Application: Toyota Corolla 1.6 / 1.8, Hilux, Fortuner, Etios, Innova, Yaris (see full compatibility list)
• Connector / layout: Match to original unit (see images and OE reference if available)

Features

• Restores horn, airbag and steering wheel control functions where fitted
• Designed to fit a wide range of popular South African Toyota models
• OE-style design for correct mounting and alignment on the steering column
• Supplied new not reconditioned

How To Confirm Compatibility

1. Remove or inspect the original clock spring fitted behind your steering wheel.

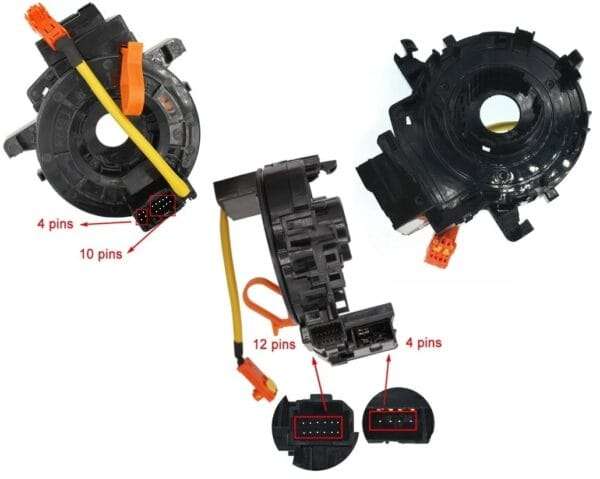

2. Compare the housing shape, locating tabs and electrical connectors with the product photos.
3. Where possible, match any OE number printed on your original unit to the listing information.
4. Confirm your vehicle matches the model, year range and engine code shown in the compatibility list.
5. If unsure, contact us with your VIN so we can help confirm fitment before you order.

Fitment & Safety Notes

• Always disconnect the vehicle battery and wait the recommended time before working on the airbag system.
• Ensure the new clock spring is correctly centred before refitting the steering wheel.
• After installation, verify that the airbag warning light goes off and that the horn and steering wheel controls operate correctly.
• Professional installation by a qualified technician is strongly recommended.

Important Disclaimer

Vehicle and engine data are provided as a fitment guide only. Toyota may use different clock spring versions within the same model range depending on steering wheel type and equipment level. Do not rely on model and year alone. Always match the connector style, mounting design and, where possible, OE part number before purchasing.

E&OE. Images are for illustration purposes and may differ slightly from the actual product supplied.
