Clock Spring For Toyota Hilux / Fortuner 3.0 D-4D 1KD 2005–2015 (Choose Pin Type)

Clock Spring For Toyota Hilux / Fortuner 3.0 D-4D 1KD (20052015)

Replacement steering wheel clock spring suitable for selected Toyota Hilux and Toyota Fortuner 3.0 D-4D 1KD models. This part restores proper operation of the horn, airbag connection and steering wheel controls when the original clock spring ribbon has broken or failed.

Vehicle Compatibility

• Toyota Hilux 3.0 D-4D 1KD-FTV Body: KUN1 / KUN2 / KUN3 4-cylinder 2982cc Years: 20052015
• Toyota Fortuner 3.0 D-4D 1KD-FTV Body: AN50 / AN60 4-cylinder 2982cc Years: 20052015

Important: These clock springs are for the above Hilux and Fortuner platform, but there are different versions depending on the number of pins and whether the steering angle sensor is fitted. You must match the pin count and sensor setup on your original part before ordering.

Available Options (Choose Correct Version)

Please select the correct configuration from the dropdown before adding to cart:

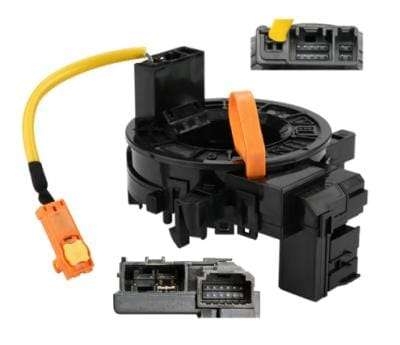

• Option 1 30 Pin (With Steering Angle Sensor)
  SKU: CS1181
  Specs: 30 pins
  Typical use: Vehicles where the original clock spring has a steering angle sensor module mounted on or integrated with the clock spring.

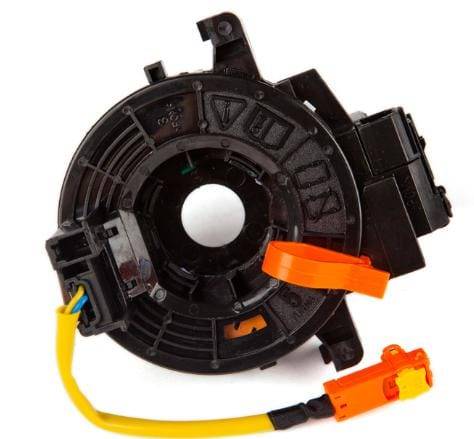

• Option 2 9 Pin
  SKU: CS1184
  Specs: 9 pins
  Typical use: Simpler steering wheel configurations with fewer controls and a 9-pin plug.

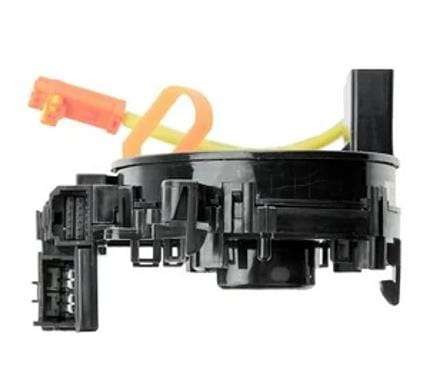

• Option 3 30 Pin (Without Steering Angle Sensor)
  SKU: CS1283
  Specs: 30 pin, excl. sensor / without steering angle sensor
  Typical use: Vehicles with a 30-pin plug but no steering angle sensor on the clock spring unit.

How To Choose The Correct Clock Spring

1. Remove the steering wheel and original clock spring (or visually inspect if already out).
2. Count the pins on the main electrical plug (e.g. 9-pin or 30-pin).
3. Check for a steering angle sensor: if your original unit has a separate or integrated steering angle sensor mounted on the clock spring, choose the 30 Pin With Steering Angle Sensor (CS1181). If it does not, choose the 30 Pin Without Steering Angle Sensor (CS1283).
4. Match by VIN / OEM part number wherever possible to avoid incorrect supply.

Features

• Direct replacement clock spring for selected Toyota Hilux / Fortuner 3.0 D-4D 1KD models
• Restores horn, airbag and steering wheel control connections
• Available in 9-pin and 30-pin versions to match original setup
• Option with or without steering angle sensor to suit different specifications
• Supplied new not reconditioned

Fitment & Installation Notes

• Professional installation is strongly recommended, especially on airbag-equipped steering wheels.
• Always disconnect the battery and wait the recommended time before working on the airbag system.
• Ensure the new clock spring is correctly centred before refitting the steering wheel.
• After installation, verify that the airbag warning light goes out and that horn and steering controls operate correctly.

Important Compatibility Disclaimer

Hilux and Fortuner share many parts, but the clock spring versions differ between trim levels and equipment. Do not order only by model and year. Always match the pin count, steering angle sensor configuration, and where possible the OEM part number or VIN. If you are unsure, please contact us with your VIN before ordering.

Errors & Omissions Excepted (E&OE). Images are for illustration purposes and may differ slightly from the actual
