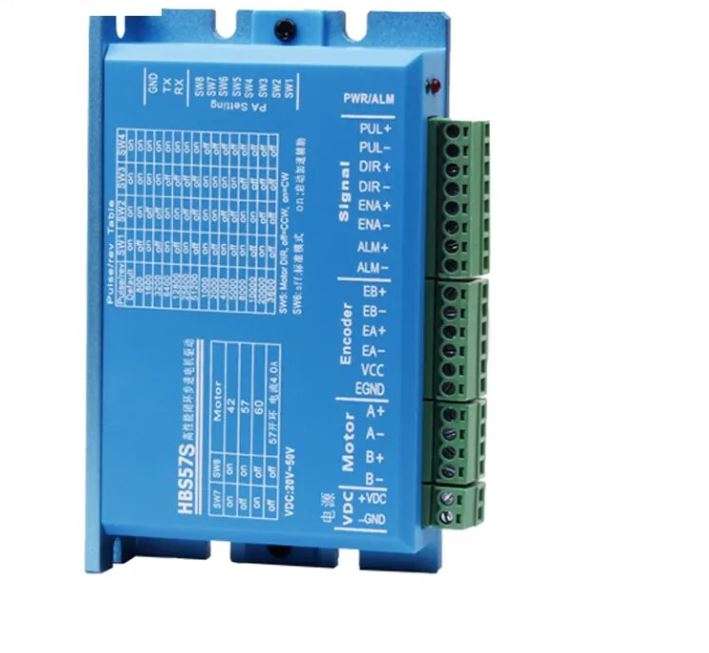

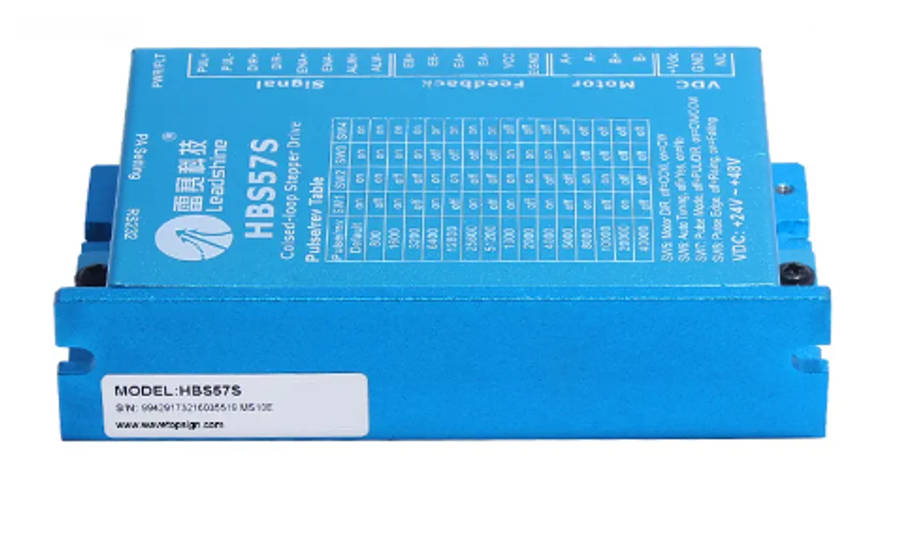

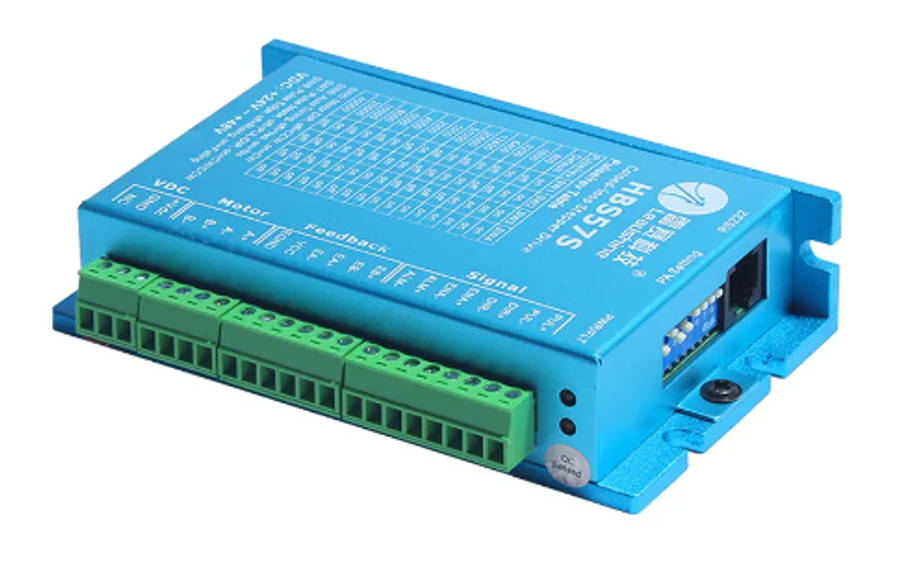

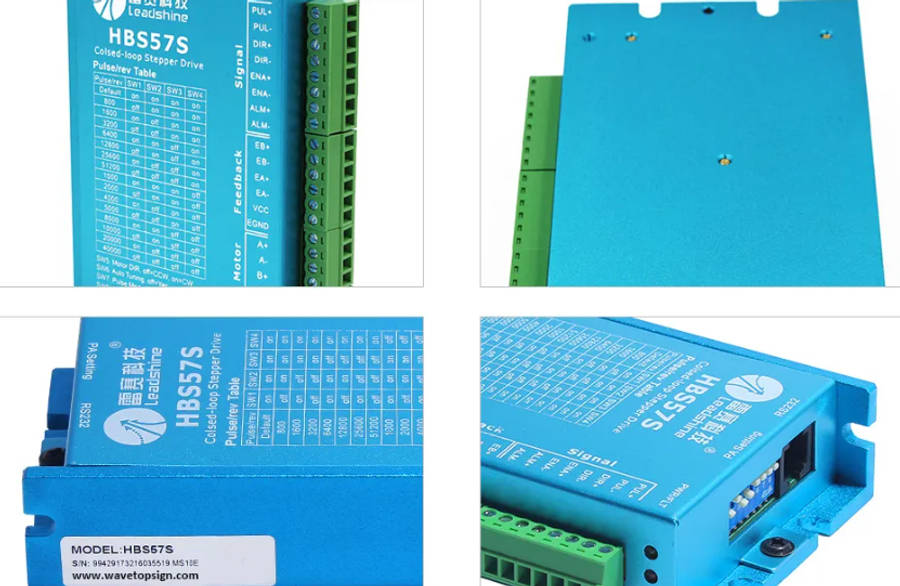

Closed Loop Stepper Motor Driver - HBS57S

Closed Loop Stepper Motor Driver - HBS57S

Product Description

The HBS series offers an alternative for applications requiring high performance and high reliability when the servo was the only choice, while it remains cost-effective. The system includes a 3-phase stepper motor combined with a fully digital, high performance drive and an internal encoder which is used to close the position, velocity and current loops in real time, just like servo systems. It combines the best of servo and stepper motor technologies, and delivers unique capabilities and enhancements over both, while at a fraction of the cost of a servo system.

Product Specs

Output current: Up to 7.0A Peak (Load Dependent)

Logic signal current: 7 to 20mA

Pulse input frequency: 200 kHz

Encoder Resolution (PPR): 1000

Isolation resistance: 500 M

Operating temperature: 0 to 50 °C

Operating Humidity: 40 to 90%RH

Vibration: 5.9 m/s² Max

Weight: Approx. 300 g

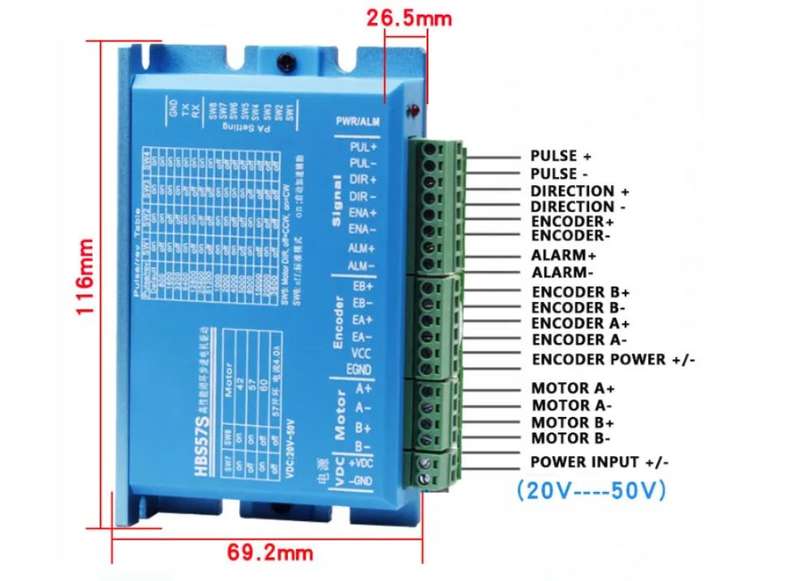

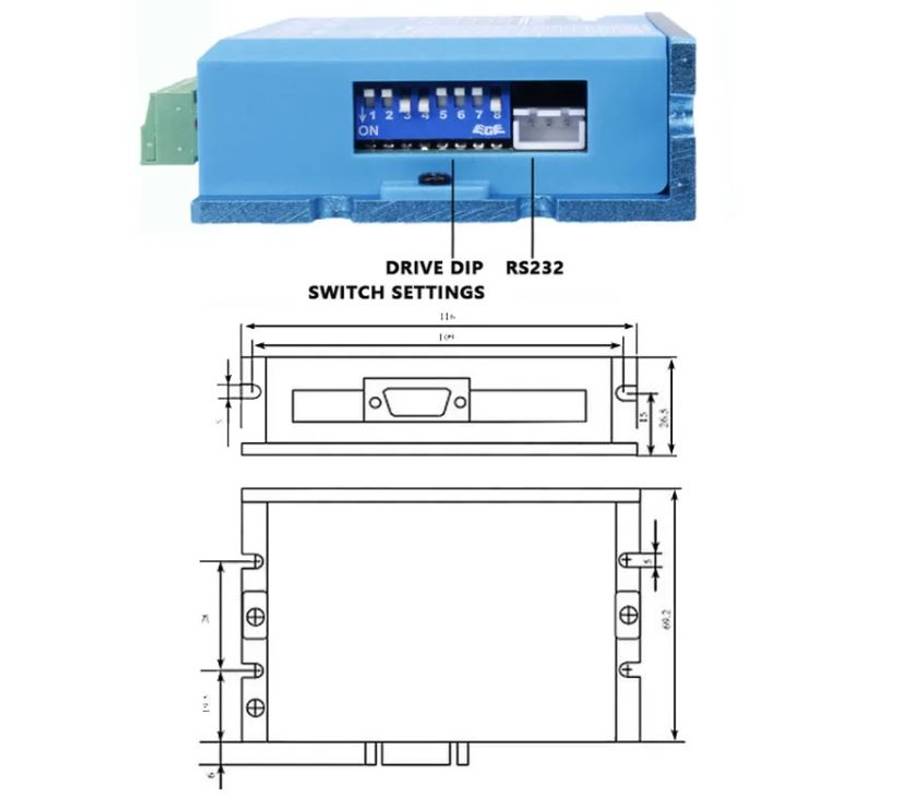

Dimension: 118 x 75x 34 mm

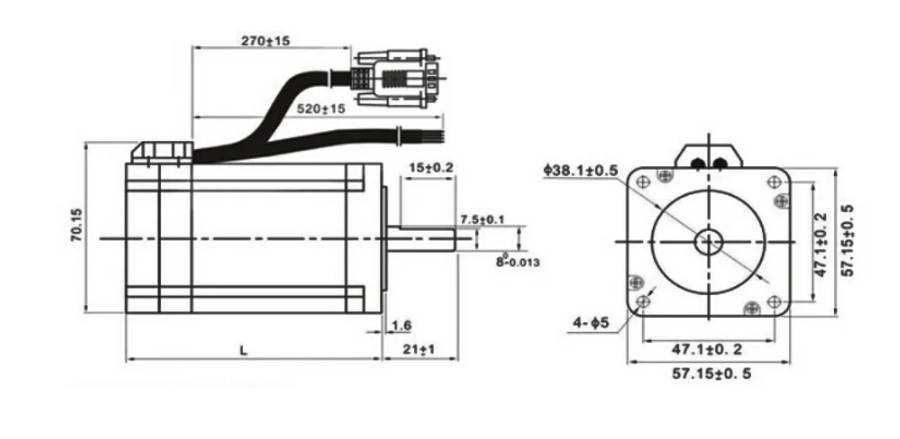

Suitable for Nema 23, 42/57 Stepper motors.
