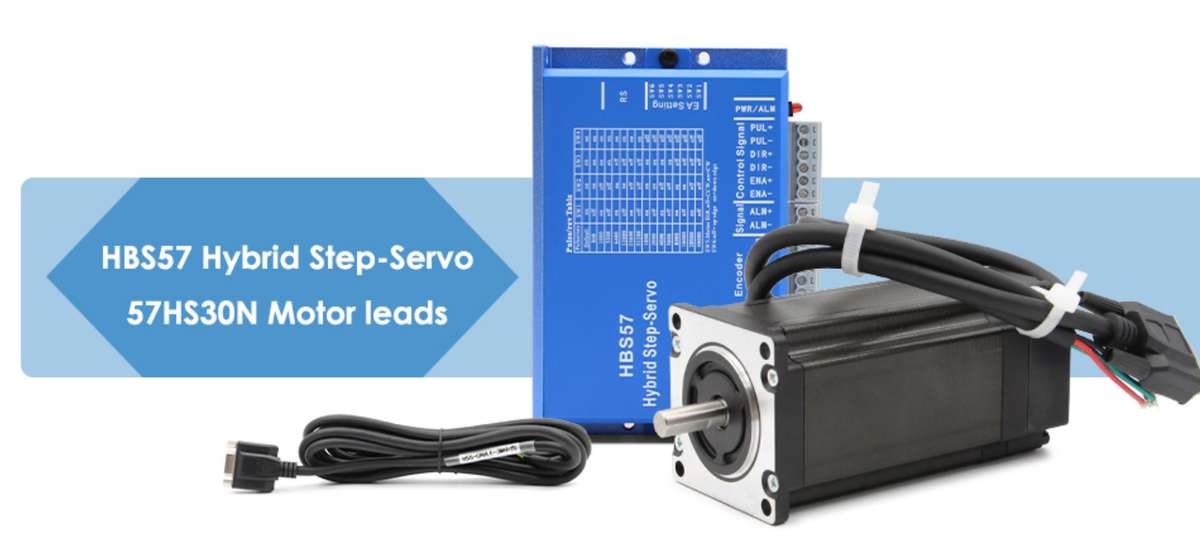

Closed Loop Stepper Motor Nema 23 3Nm 425Oz + Hybrid Step Servo Driver

Closed Loop Stepper Motor Nema 23 3Nm 425Oz +  Hybrid Step Servo Driver

Product Description

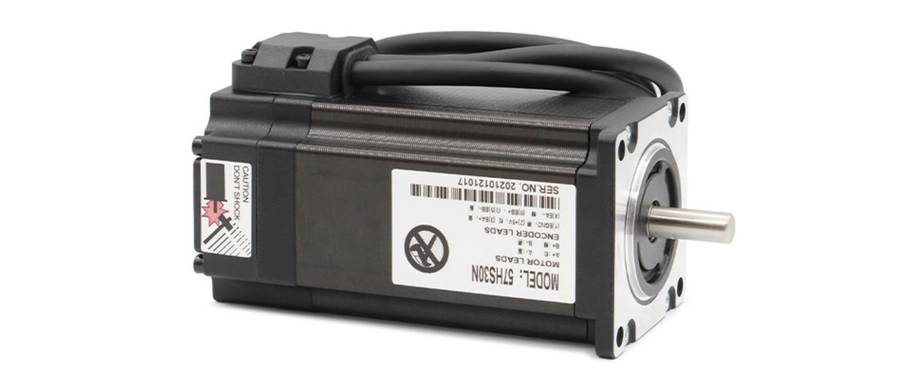

This is the closed loop hybrid stepper motor Nema 23, it comes with the required step driver to give you optimal and great performance.

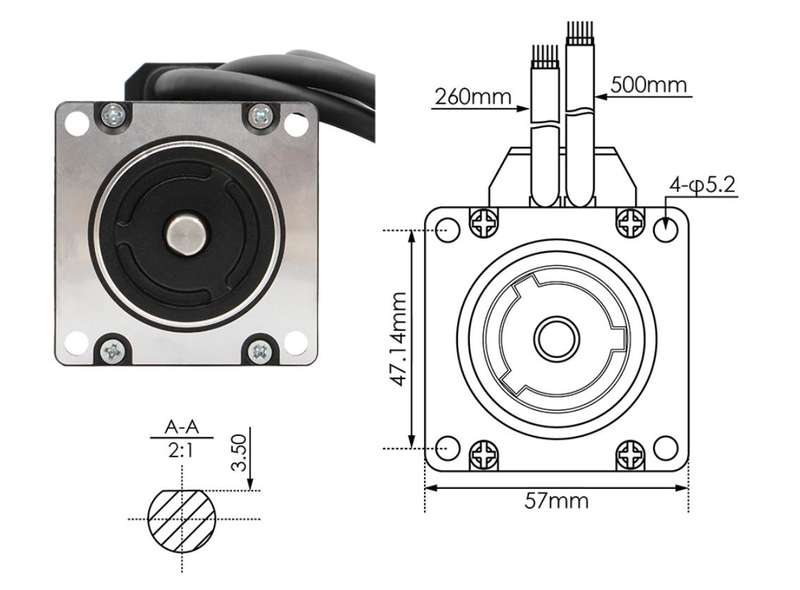

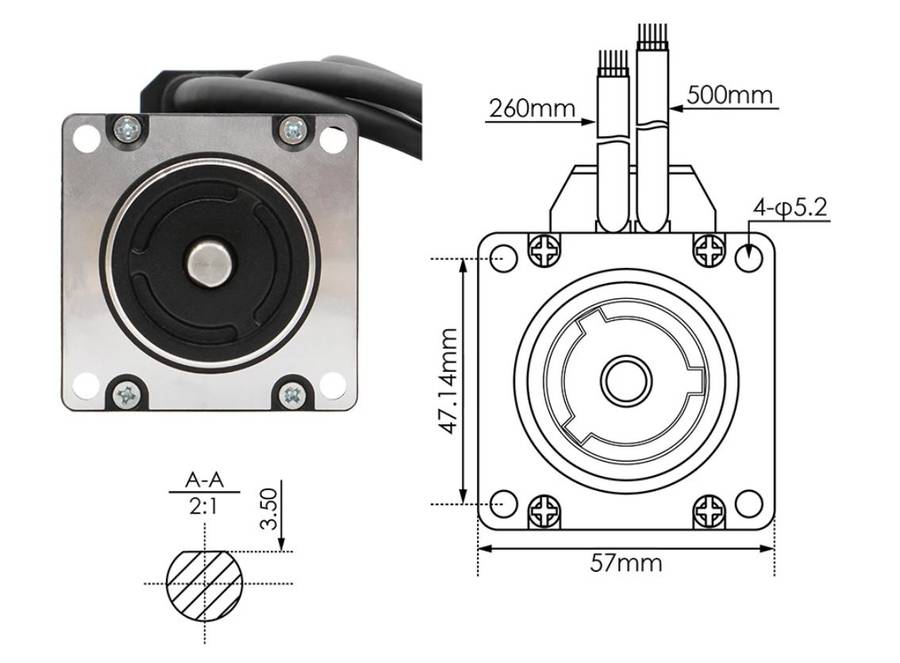

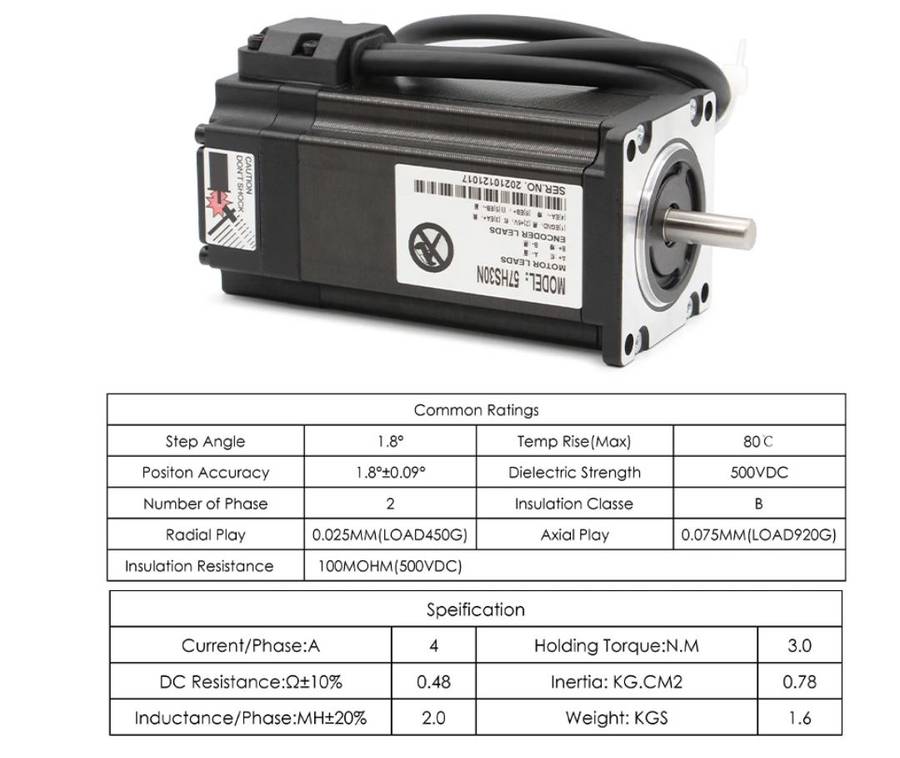

Product Specs

• Step angle : 1.8°
• Temp rise(Max) : 80
• Position accuracy: 1.8°0.09°
• Dielectric strength : 500VDC
• Number of phase : 2
• Insulation classe : B
• Radial play : 0.025mm(load450g)
• Axial play : 0.075mm(load920g)
• Insulation resistance : 100MOHM(500VDC)
• Current / Phase : 4A
• Holding Torque : 3.0N.m
• DC Resistance : 0.48±10%
• Inertia : 0.78KG.CM2
• Inductance / Phase : 2.0MH±20%
• Weight : 1.6KGS

Some of its great advantages are:

• Without losing a step,high accuracy in positioning
• 100%rated output torque
• Small vibration, Smooth and reliable moving at low speed
• Compatible with1000 lines encoder
• Over current, over-voltage, and over position error protection

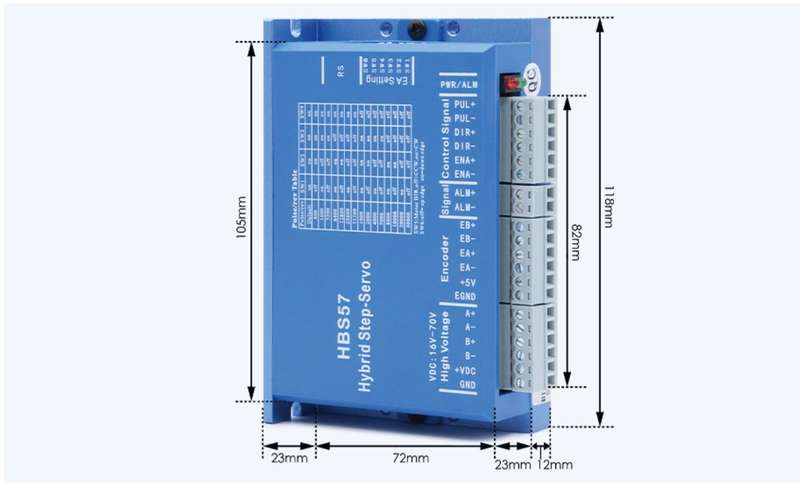

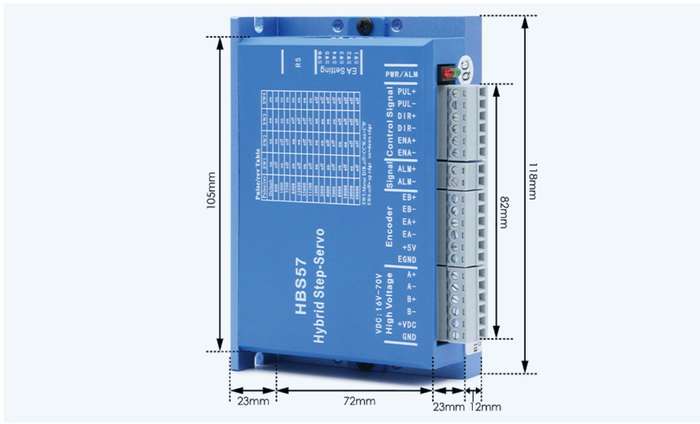

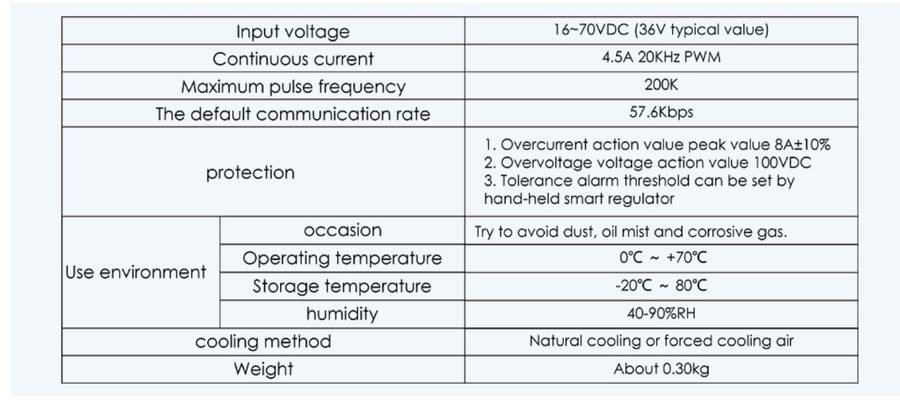

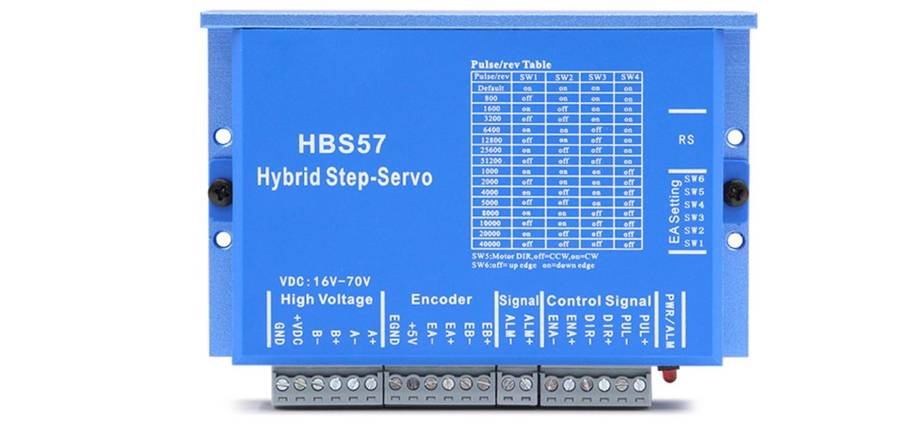

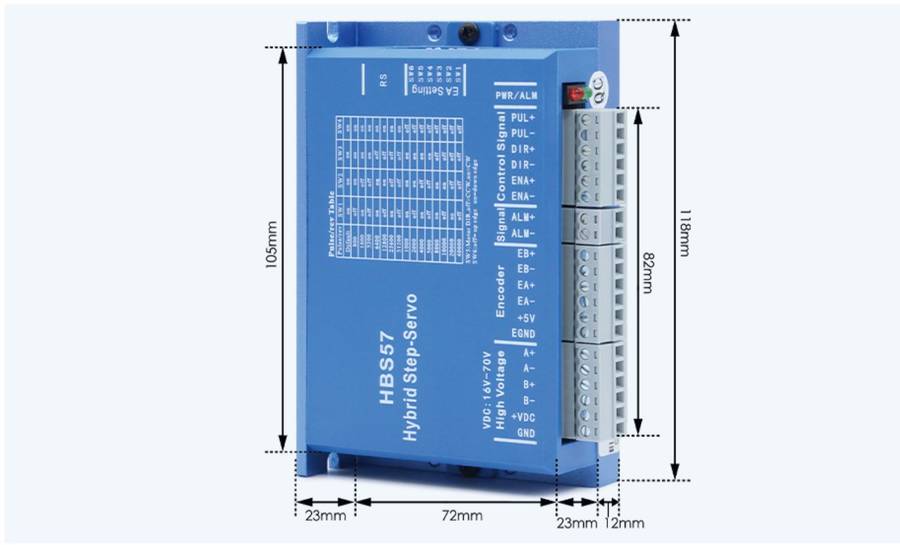

Electrical Indicators for Step Driver

• Input Current : 16-70VDC
• Input Current : 4.5A 20KHz PWM
• Input Current : 200K

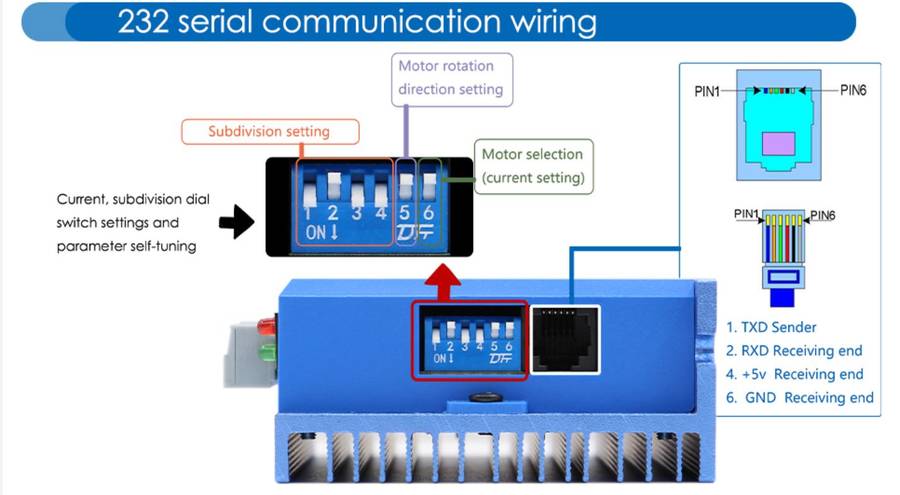

• Input Current: 57.6Kbps

Product Features

1. No step loss, precise positioning

2. 100% rated torque drive motor

3. Variable current control technology, high current efficiency

4. Small vibration, stable operation at low speed

5. Built-in acceleration and deceleration control to improve the smoothness of start and stop

6. Users can customize subdivisions

7. Compatible with 1000 line and 2500 line encoder

8. General application parameters do not need to be adjusted

9. Overcurrent protection, overvoltage protection, over-tolerance protection

10. Green light means running, red light means protection or offline

Should you require any additional information, feel free to contact us.

Please note: Locally Stocked. Available for Immediate Shipping!
