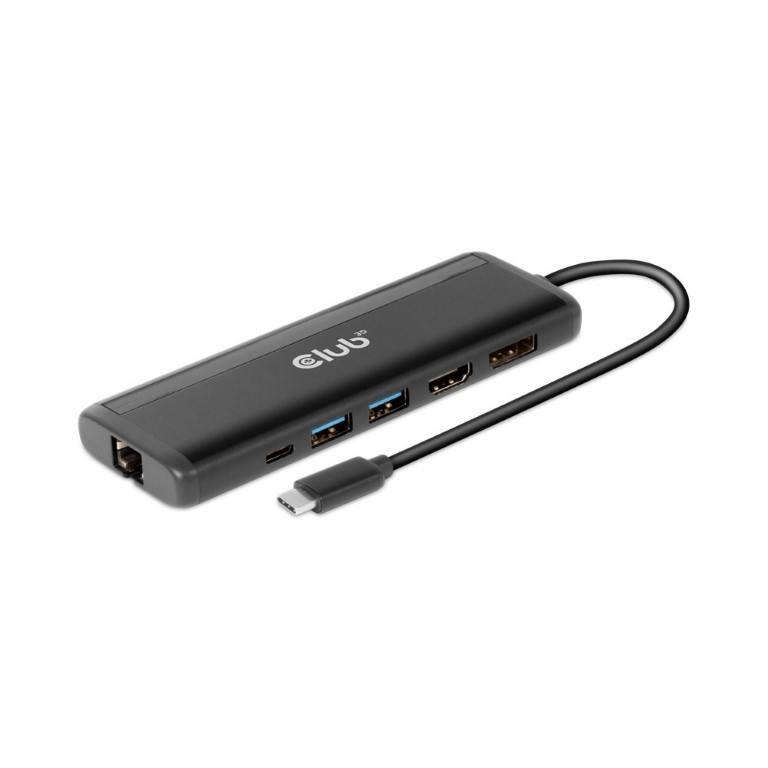

Club 3D 8-in-1 Type-C MST Port Replicator

Club3D CSV-1597 | USB Type-C 8-in-1 Dual 4K -60hz MST Port Replicator

The Club3D CSV-1597 USB Gen1 Type-C 8-in-1 Dual 4K -60Hz MST Port Replicator with HDMI 8K -30Hz (HDR), DisplayPort 8K -30Hz, 2× USB Gen1 Type-A, BC1.2, RJ45, SD/Micro SD card slots and USB Gen1 Type-C PD3.0 Female port, provides a very advanced, efficient solution to extend a single USB Gen1 Type-C port to be multiple ports. It integrates video, data and power ports that allows to connect 2 displays simultaneously for enjoying videos on a larger screen, connect multiple USB Gen1 devices for data transmission up to 5Gbps, connect a Gigabit Ethernet source for getting your PC connected to super high speed network or connect to headset to enjoy fantastic music. It also provides PD3.0 charging for support up to max. 100W PD charging. This is for operating this device and charge the host simultaneously. It can work on all DP1.4 Alt mode supported USB Gen1 Type-C hosts.

Features:

• DP1.4 Alt mode max. 8K -30Hz (with DSC1.2)
• HDMI max. 8K -30Hz (with DSC1.2)
• Dual display HDMI plus DisplayPort max. 4K -60Hz (MST with DSC1.2)
• Max 5Gbps data transmission per USB Gen 1 Type-A port
• Max 7.5W (5V 1.5A) downstream charging, 2× USB Gen1 Type-A share max 2.5A (12.5W) output
• Gigabit Ethernet
• SD3.0 UHS-I up to 832Mbps/104MB/s data rate, allowing 2× card slots to work simultaneously
• PD3.0 with max. 100W PD charging
• NOTE: Please make sure your host supports DP1.4 Alt mode

Specifications:

Input:

• 1× USB Gen1 Type-C Male (Connect to host)
• Supports DP1.4 Alt mode
• Note: To get max. bandwidth, the host should support DP1.4 Alt mode

Outputs:

• 1× HDMI (Supports max. 8K -30Hz)
• 1× DisplayPort (Supports max. 8K -30Hz)
• Supports Dual display HDMI plus DisplayPort max. 4K -60Hz (MST with DSC1.2)
• Note: The max. resolution of the display is determined by the computer and the monitor
• 2× USB Gen1 Type-A
• Max. 5Gbps data transmission per port
• Supports max. 7.5W (5V 1.5A) downstream charging
• 2× USB Gen1 Type-A ports share max 2.5A (12.5W) output
• Supports short-circuit, over-current and over-voltage protection
• 1× RJ45
• Supports Gigabit Ethernet, 10/100/1000
• 2× SD/Micro SD 3.0
• Supports UHS-I up to 832Mbps/104MB/s data rate
• Allows 2× card slots to work simultaneously
• 1× USB Gen1 Type-C Female (for PD Charging)
• Supports max. 100W PD charging
• Supports PD3.0 Fast Role Swap - The connected device will not get disconnected while plugging in and out the PD

OS Support:

• Windows OS and iOS

In the Box:

• 1× Club3d USB Type-C 8-in-1 Dual 4K -60hz MST Port Replicator
